Palbit Indexable Milling Insert - for Profile Milling - RDHW 1003 M0T PH6910

Palbit Indexable Milling Insert - for Profile Milling - RDHW 1003 M0T PH6910

SKU:PAL-111008754
The Palbit RDHW indexable milling insert is designed for high-precision profile milling applications. It excels at machining complex contours and intricate 3D surfaces, delivering superior surface... Read more ↓
Material Compatibility
P
K
Specification
ISO CodeRDHW 1003 M0T PH6910
Insert Size and ShapeRD1003
Product LineTOROMILL 25090
GradePH6910
HandNeutral
Cutting Edge Count (CEDC)4
View all specifications ↓
£7.77
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

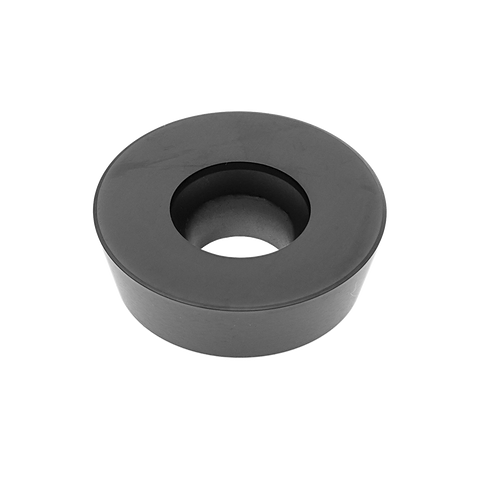

The Palbit RDHW indexable milling insert is designed for high-precision profile milling applications. It excels at machining complex contours and intricate 3D surfaces, delivering superior surface finishes and consistent tool performance.

  • Material: Premium carbide
  • Geometry: Advanced cutting geometry
  • Application: Profile milling for complex contours and 3D surfaces
  • Performance: Durable and accurate with repeatable results
  • Identification: RDHW 1003 M0T PH6910

By combining premium carbide with an optimized cutting geometry, this insert helps you achieve smooth surface finishes on challenging profiles while maintaining dimensional accuracy. The durable design supports longer tool life and stable performance in demanding milling operations, reducing rework and improving part quality over time.

ISO Code RDHW 1003 M0T PH6910
Insert Size and Shape RD1003
Product Line TOROMILL 25090
Grade PH6910
Hand Neutral
Cutting Edge Count (CEDC) 4
Operation Type (CTPT) Profile Milling
Tolerance Class Insert (TCINS) H
Insert Shape Code (SC) R
Inscribed Circle Diameter (IC) 10
Insert Thickness (S) 3.18
Corner Radius (RE) 5
Fixing Hole Diameter (D1) 4.1

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit RDHW Inserts

View full collection →

You are viewing PAL-111008754. Click any other SKU to view its full details.

Product SKUISO CodeInsert Size & ShapeProduct LineInsert Shape Code (SC)Insert Thickness (S)PriceStock Order
PAL-111008768 RDHW 1003 M0T PH6920RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111009668 RDMW 12T3 M0T PH6920RD12T3TOROMILL 25190R3.97£7.77 In Stock
PAL-111009786 RDMW 1604 M0T PH6135RD1604TOROMILL 25290R4.76£8.20 5 days
PAL-111009778 RDMW 1604 M0T PH6125RD1604TOROMILL 25290R4.76£8.20 5 days
PAL-111009768 RDMW 1604 M0T PH6920RD1604TOROMILL 25290R4.76£8.20 In Stock
PAL-111009286 RDHW 1604 M0T PH6135RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111009268 RDHW 1604 M0T PH6920RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111009254 RDHW 1604 M0T PH6910RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-1110092M6 RDHW 1604 M0T PH6103RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111009678 RDMW 12T3 M0T PH6125RD12T3TOROMILL 25190R3.97£7.77 5 days
PAL-111009686 RDMW 12T3 M0T PH6135RD12T3TOROMILL 25190R3.97£7.77 5 days
PAL-111008786 RDHW 1003 M0T PH6135RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-1110087M6 RDHW 1003 M0T PH6103RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111008754 ViewingRDHW 1003 M0T PH6910RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111054868 RDHW 0702 M0T PH6920RD0702TOROMILL 24590R2.38£7.77 5 days
PAL-1110548M6 RDHW 0702 M0T PH6103RD0702TOROMILL 24590R2.38£7.77 5 days
PAL-111054854 RDHW 0702 M0T PH6910RD0702TOROMILL 24590R2.38£7.77 5 days
