Palbit Threaded Coupling Holder - For XD10T3 Inserts - 35mm Cutter Diameter - 181012300
| Insert Size & Shape | XD10T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 3 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 95 |
Learn more about Klarna

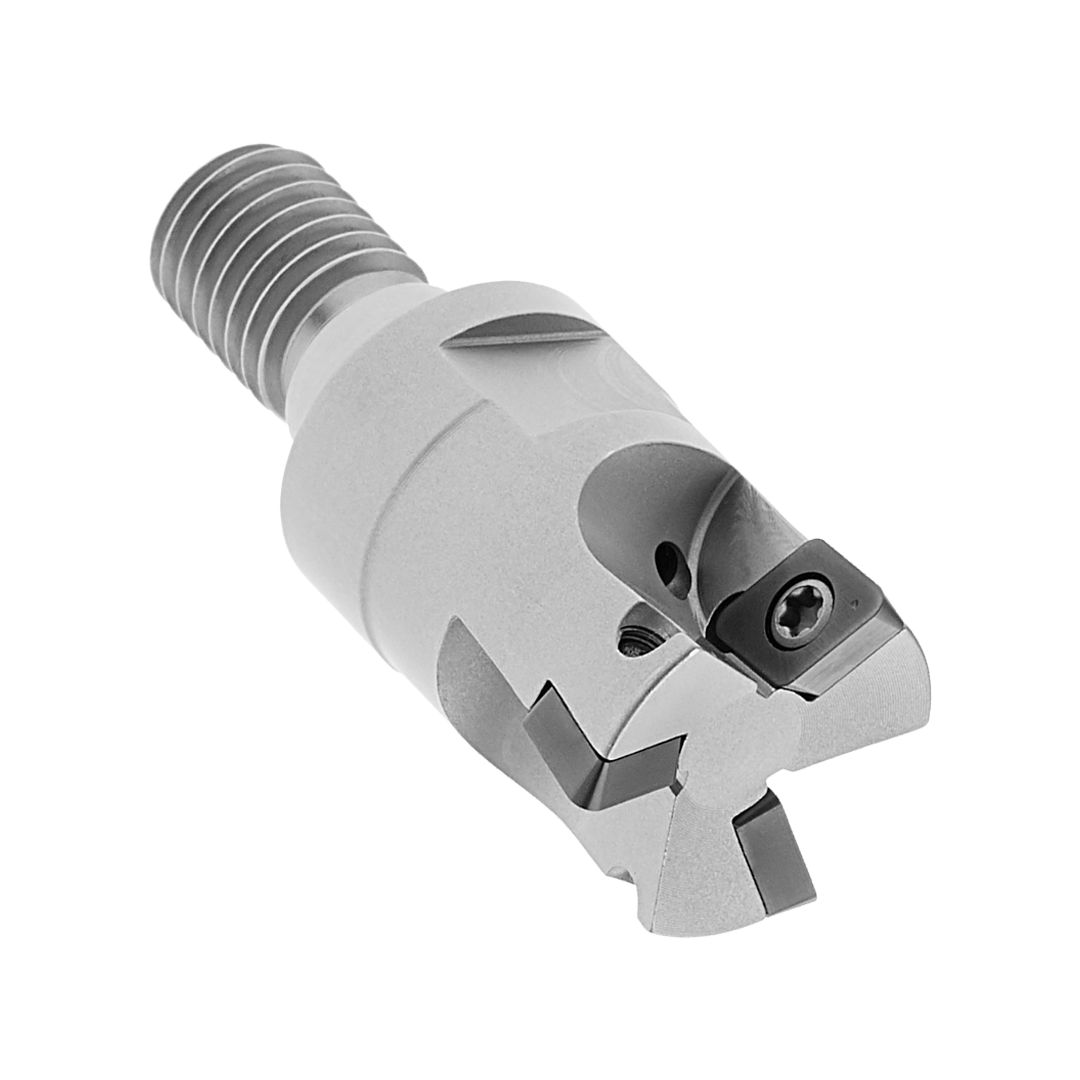

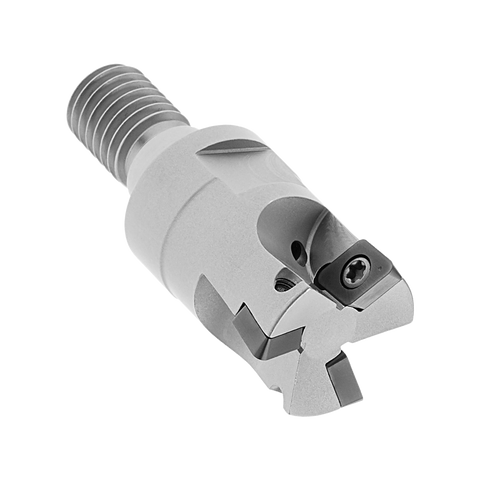

The Palbit Threaded Coupling Holder is a precision tool holder built for XD10T3 inserts and a 35 mm cutter diameter, engineered to deliver secure clamping and exceptional rigidity for high-precision internal threading.
- Compatibility: Designed specifically for XD10T3 inserts to ensure reliable seating and performance.
- Cutter Diameter: 35 mm, optimized for standard internal threading applications.
- Precision Performance: Optimised for high-precision internal threading to achieve accurate thread cutting.
- Clamping & Rigidity: Secure clamping and exceptional rigidity for consistent results under demanding conditions.
- Chip Control: Enhanced chip control to help maintain clean cuts and reduce buildup during operation.
- Tool Life: Extended tool life through stable support and minimized vibration during cutting.
- Application: Ideal for CNC threading tasks in precision machining environments requiring repeatable results.
- Reliability: Trusted by engineers and machinists for consistent performance and superior threading outcomes.
This coupling holder provides the stable foundation needed for repeatable, high-quality internal threads. With secure clamping, precise cutting, and durable construction, it supports long-running projects in precision manufacturing environments and helps ensure dependable threading results every run.
| Insert Size & Shape | XD10T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 3 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 95 |
| Cutting Diameter (DC) | 35 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 43 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 40595 - Threaded Coupling
View full collection →You are viewing PAL-181012300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181016900 | XD10T3 | Profile Cutters | Threaded Coupling | 42 | 43 | £152.64 | 5 days | |
| PAL-181015700 | XD10T3 | Profile Cutters | Threaded Coupling | 25 | 35 | £109.26 | 5 days | |
| PAL-181012300 Viewing | XD10T3 | Profile Cutters | Threaded Coupling | 35 | 43 | £130.84 | 5 days |
