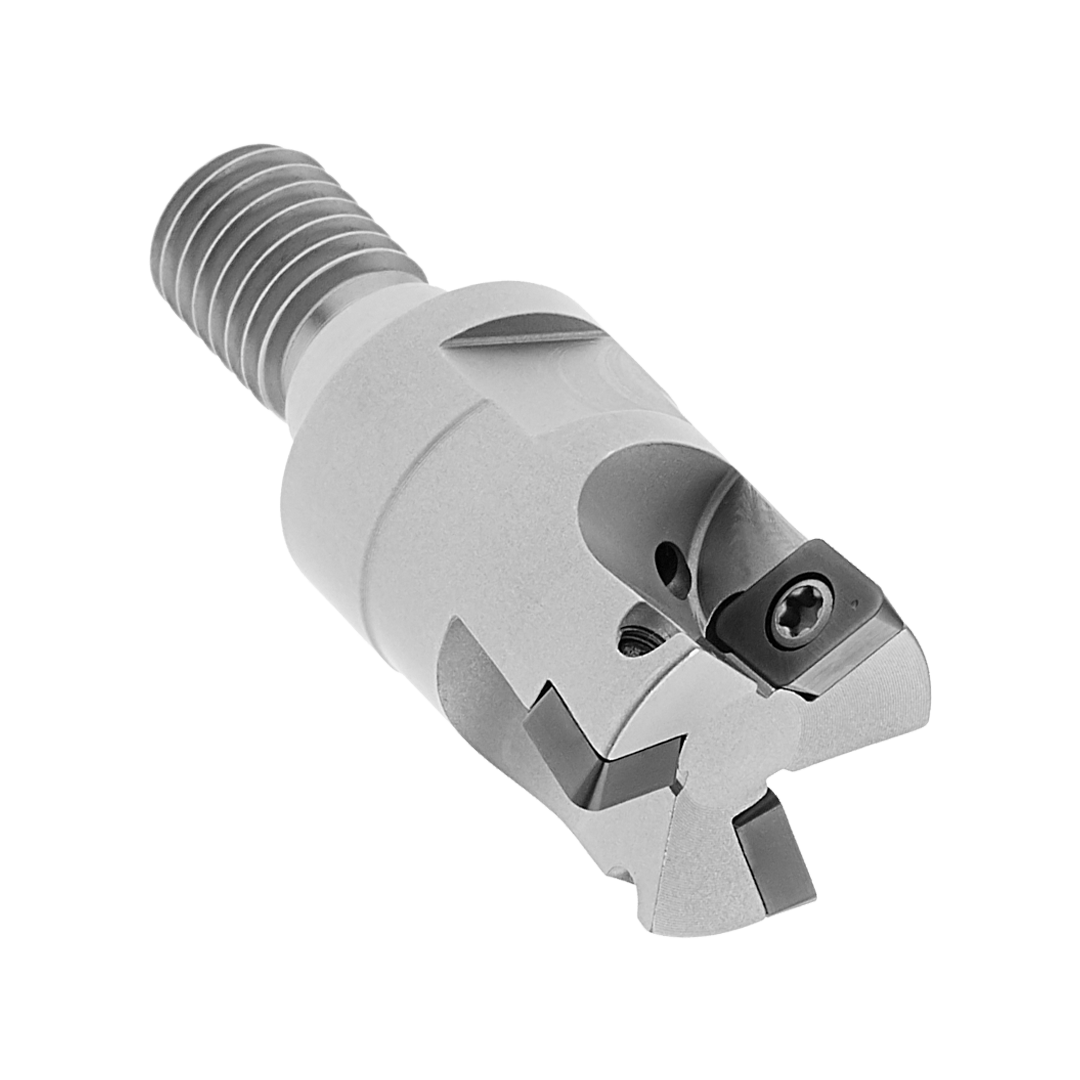

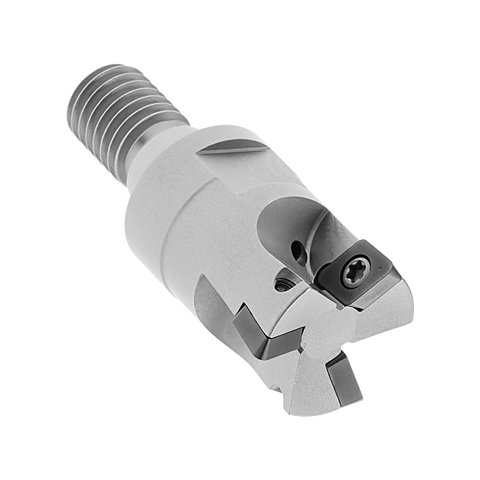

Palbit Threaded Coupling Holder - For XD10T3 Inserts - 25mm Cutter Diameter - 181015700
| Insert Size & Shape | XD10T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 95 |
Learn more about Klarna
Palbit Threaded Coupling Holder is a precision tool holder designed for XD10T3 inserts, delivering secure clamping and exceptional rigidity for high-precision internal threading. Ideal for demanding CNC threading tasks in precision machining environments.
- Compatibility: Designed for XD10T3 inserts to ensure reliable threading accuracy
- Cutter diameter: 25 mm cutter diameter for balanced rigidity and efficient chip flow
- Clamping & rigidity: Secure clamping and high rigidity to minimize runout during threading
- Chip control: Enhanced chip control for cleaner cuts and reduced heat buildup
- Tool life: Extended tool life through stable engagement and reduced vibration
- Applications: Optimised for high-precision internal threading in CNC environments
With this holder, you gain consistent thread quality, reduced cycle times, and fewer tool changes thanks to dependable performance. The combination of secure clamping and superior rigidity translates to accurate thread pitch, cleaner threads, and longer overall tool life, making it a reliable choice for precision machining tasks where tight tolerances matter.
| Insert Size & Shape | XD10T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 95 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 35 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -0 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 40595 - Threaded Coupling
View full collection →You are viewing PAL-181015700. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181016900 | XD10T3 | Profile Cutters | Threaded Coupling | 42 | 43 | £152.64 | 5 days | |
| PAL-181015700 Viewing | XD10T3 | Profile Cutters | Threaded Coupling | 25 | 35 | £109.26 | 5 days | |
| PAL-181012300 | XD10T3 | Profile Cutters | Threaded Coupling | 35 | 43 | £130.84 | 5 days |
