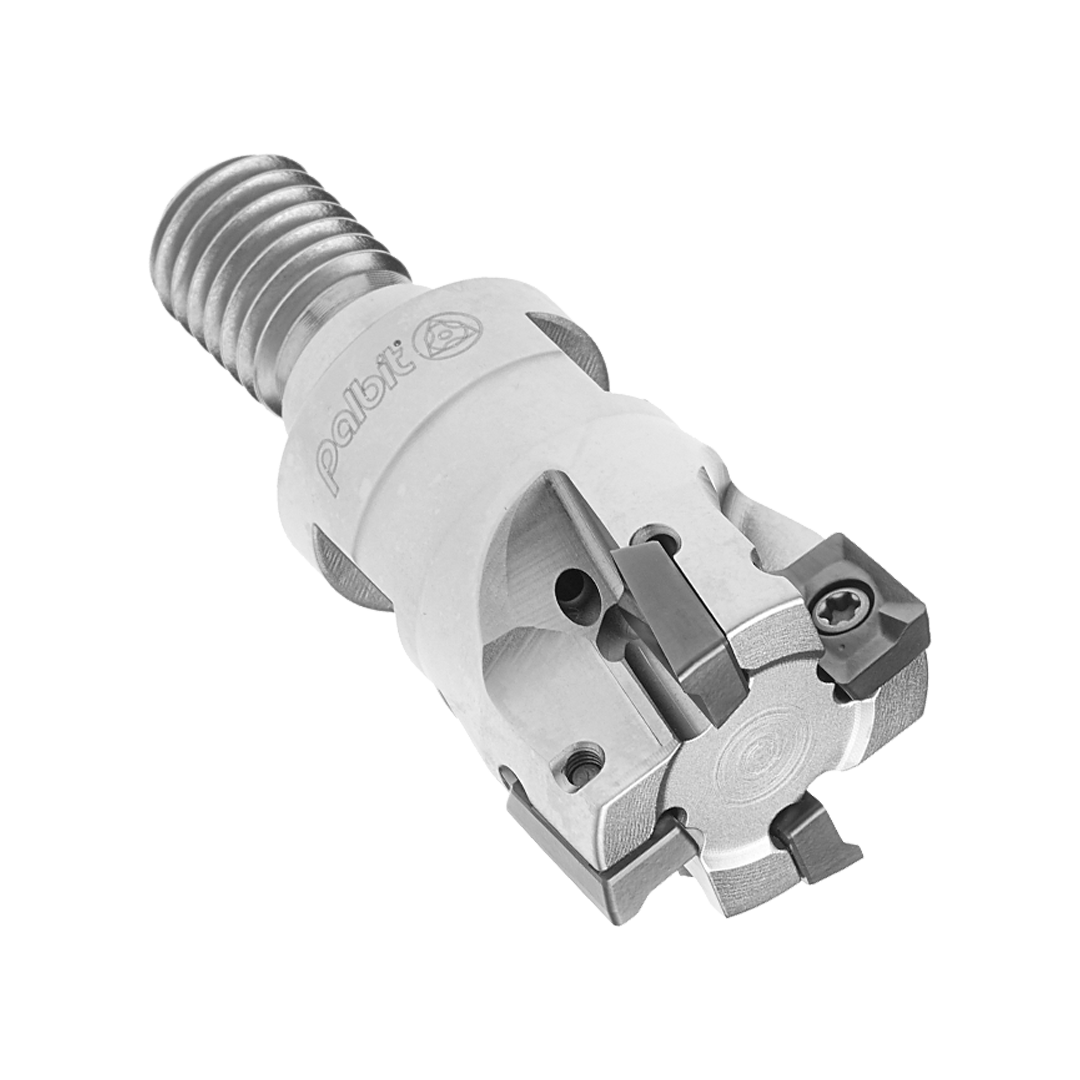

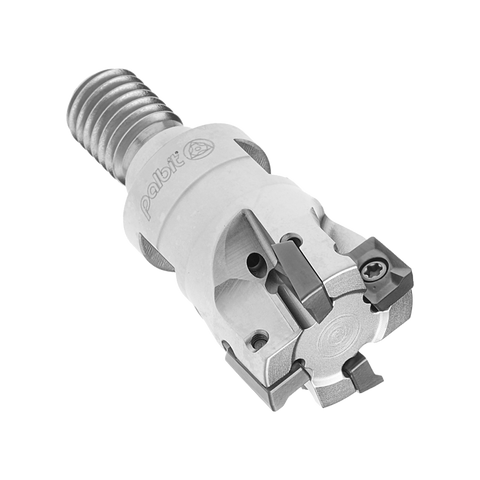

Palbit Threaded Coupling Holder - For AP1003 Inserts - 25mm Cutter Diameter - 181015300
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Threaded Coupling Holder is a precision tool holder designed for AP1003 inserts, featuring a 25 mm cutter diameter to tackle demanding CNC threading tasks with reliable insert retention and exceptional rigidity.
- Inserts compatibility: specifically engineered to house AP1003 inserts for consistent threading performance.
- Diameter: 25 mm cutter diameter to suit your precise threading applications.
- Threading precision: optimized for accurate internal thread profiles in high-demand operations.
- Secure insert retention: robust clamping ensures the insert stays firmly in place during cutting.
- Rigidity: engineered to minimize deflection and vibration for clean, stable cuts.
- Chip evacuation: designed to promote efficient removal of chips for smoother machining.
- Extended tool life: construction and retention contribute to longer service intervals and reliability.
Designed for high-speed, precision CNC threading, this holder delivers consistent thread quality and dependable performance across demanding production runs. It helps reduce maintenance, improve chip control, and extend tooling life, making it a trusted choice for engineers seeking repeatable results in precision machining.
| Insert Size & Shape | AP1003 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 21 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 35 |
| Axial Rake Angel (GAMP) | 9 |
| Rdial Rake Angle (GAMF) | -14 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 17090 - Threaded Coupling
View full collection →You are viewing PAL-181015300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181015300 Viewing | AP1003 | Shouldering Cutters | Threaded Coupling | 25 | 35 | £165.89 | 5 days | |
| PAL-181015200 | AP1003 | Shouldering Cutters | Threaded Coupling | 20 | 30 | £155.77 | 5 days | |
| PAL-181015100 | AP1003 | Shouldering Cutters | Threaded Coupling | 16 | 25 | £140.20 | 5 days |
