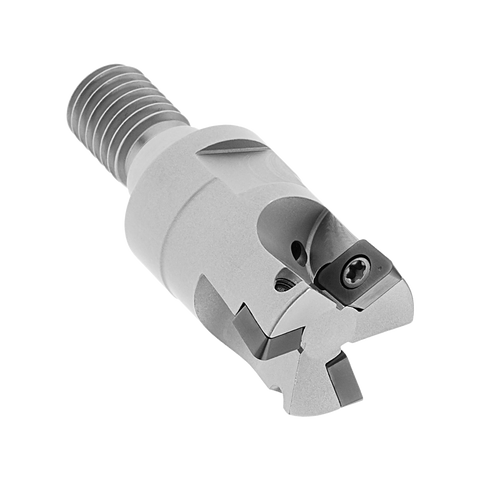

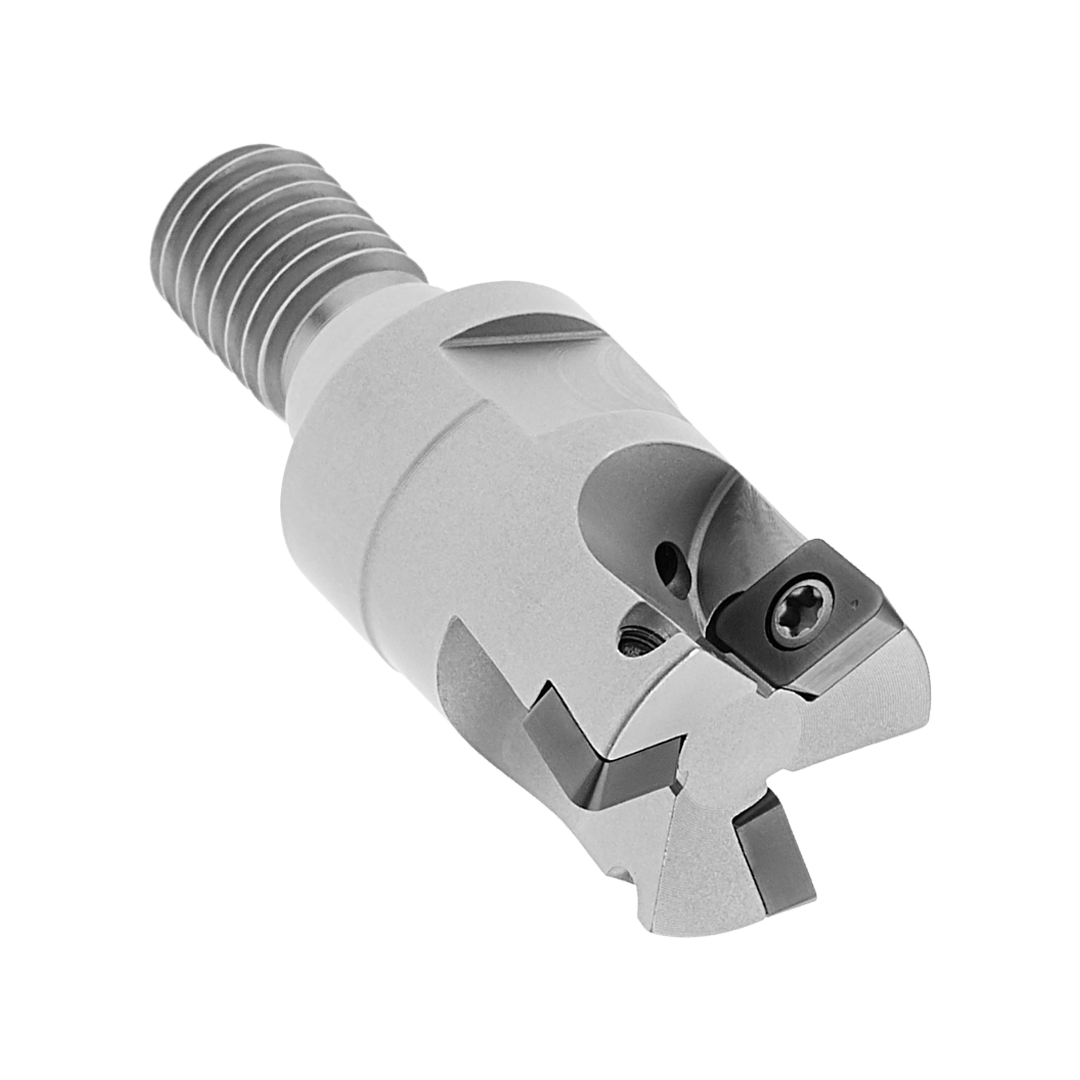

Palbit Threaded Coupling Holder - For XD0401 Inserts - 12mm Cutter Diameter - 181016300
| Insert Size & Shape | XD0401 |
| Depth of Cut Maximum (APMX) | 0.8 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 9.8 |
| Tool Cutting Edge Angle (KAPR) | 95 |
Learn more about Klarna
Designed for precision micro internal threading, Palbit Threaded Coupling Holder works with XD0401 inserts to provide secure clamp, exceptional rigidity, and reliable performance in compact tooling applications.
- Compatibility: Specifically designed for XD0401 inserts to ensure a precise, repeatable fit.
- Diameter: 12 mm cutter diameter for compact, accurate thread formation.
- Clamping: Secure insert clamping minimizes movement during cutting for consistent results.
- Rigidity: Optimized for high rigidity in small-tooling envelopes, reducing deflection.
- Threading Accuracy: Delivers accurate thread cutting with tight tolerances and reliable repeatability.
- Vibration Reduction: Engineered to minimize vibration and chatter for smoother cuts.
- Tool Life: Design elements extend tool life in demanding micro-threading tasks.
With this holder, you gain stable performance across micro-threading operations, enabling fine-detail CNC work with superior surface finishes. Its robust clamping and rigid body help achieve repeatable results, reduced finishing passes, and efficient cycle times, making it a dependable choice for precision engineers and machinists in demanding environments.
| Insert Size & Shape | XD0401 |
| Depth of Cut Maximum (APMX) | 0.8 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 9.8 |
| Tool Cutting Edge Angle (KAPR) | 95 |
| Cutting Diameter (DC) | 12 |
| Torque (TQ) | 0.6 |
| Functional Length (LF) | 20 |
| Axial Rake Angel (GAMP) | 9 |
| Rdial Rake Angle (GAMF) | -4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 41095 - Threaded Coupling
View full collection →You are viewing PAL-181016300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181016300 Viewing | XD0401 | Profile Cutters | Threaded Coupling | 12 | 20 | £109.26 | 5 days | |
| PAL-181012400 | XD0401 | Profile Cutters | Threaded Coupling | 10 | 20 | £109.26 | 5 days |
