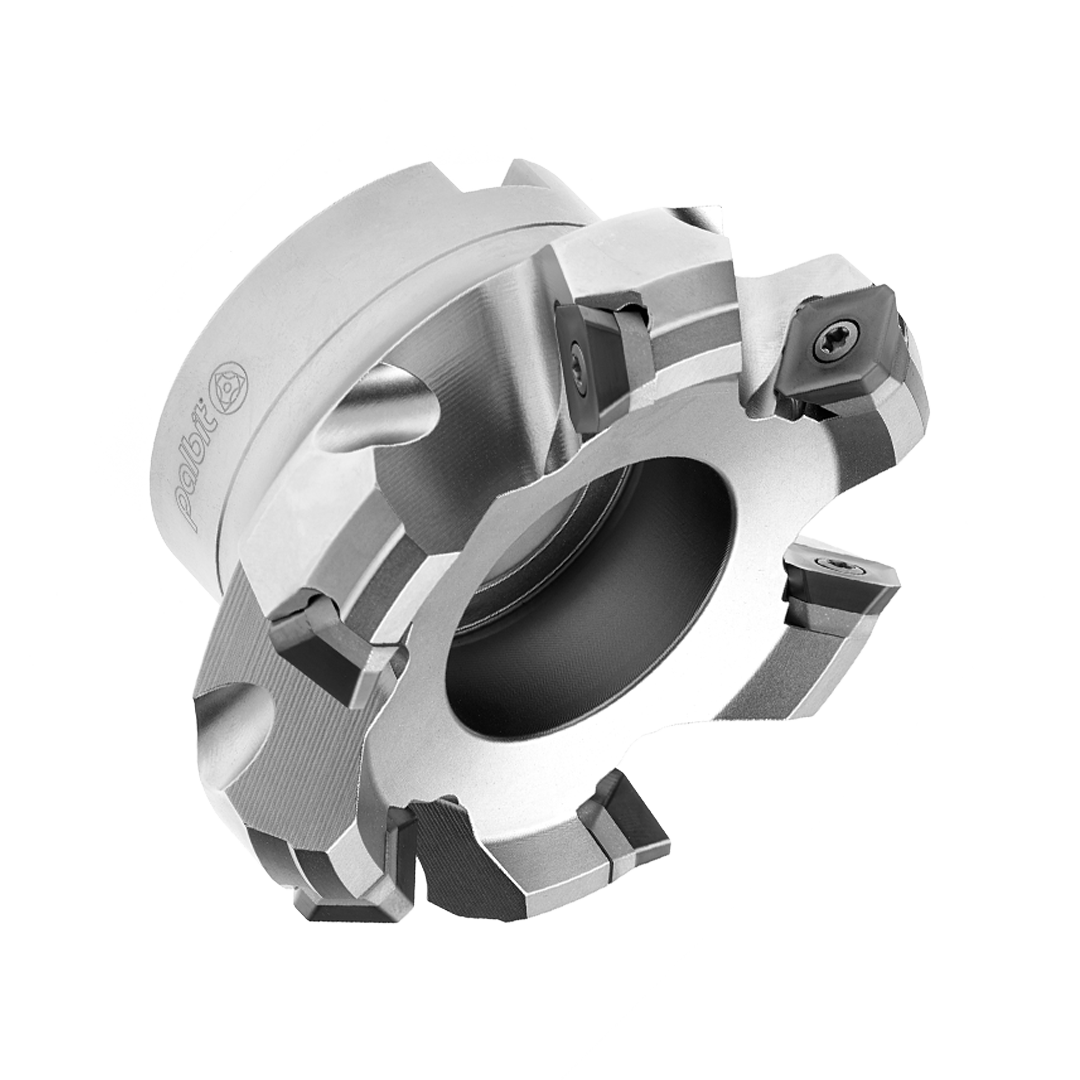

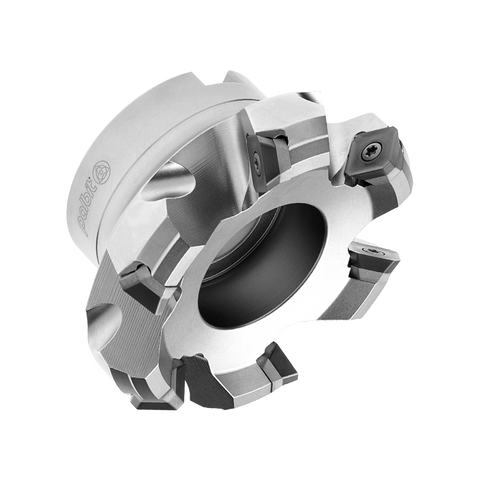

Palbit Arbor Mounting Holder - For SE13T3 Inserts - 100mm Cutter Diameter - 181024400

PAL-181024400

Availability: 5 days Estimated lead time, subject to availability

Designed for precision grooving and parting, Palbit Arbor Mounting Holders for SE13T3 inserts deliver secure clamping and excellent rigidity. These holders ensure consistent cutting accuracy and... Read more

Specification Value
Insert Size & Shape SE13T3
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 7
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 70
Tool Cutting Edge Angle (KAPR) 45
Cutting Diameter (DC) 100
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 113
Functional Length (LF) 50
Axial Rake Angel (GAMP) 20
Rdial Rake Angle (GAMF) -11

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Designed for precision grooving and parting, Palbit Arbor Mounting Holders for SE13T3 inserts deliver secure clamping and excellent rigidity. These holders ensure consistent cutting accuracy and extended tool life, making them ideal for demanding CNC machining applications. Trusted by engineers and machinists for reliable performance and superior surface finishes in production environments.
