Palbit Arbor Mounting Holder - For SE13T3 Inserts - 125mm Cutter Diameter - 181024500

Palbit Arbor Mounting Holder - For SE13T3 Inserts - 125mm Cutter Diameter - 181024500

SKU:PAL-181024500
The Palbit Arbor Mounting Holder is a precision mounting solution designed for CNC grooving and parting with SE13T3 inserts. Compatible with a 125mm cutter diameter, it delivers secure clamping a... Read more ↓
Specification
Insert Size & ShapeSE13T3
Depth of Cut Maximum (APMX)6
Cutting Item Count (CICT)8
Connection Diameter (DCONMS)40
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)90
View all specifications ↓
£491.47
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

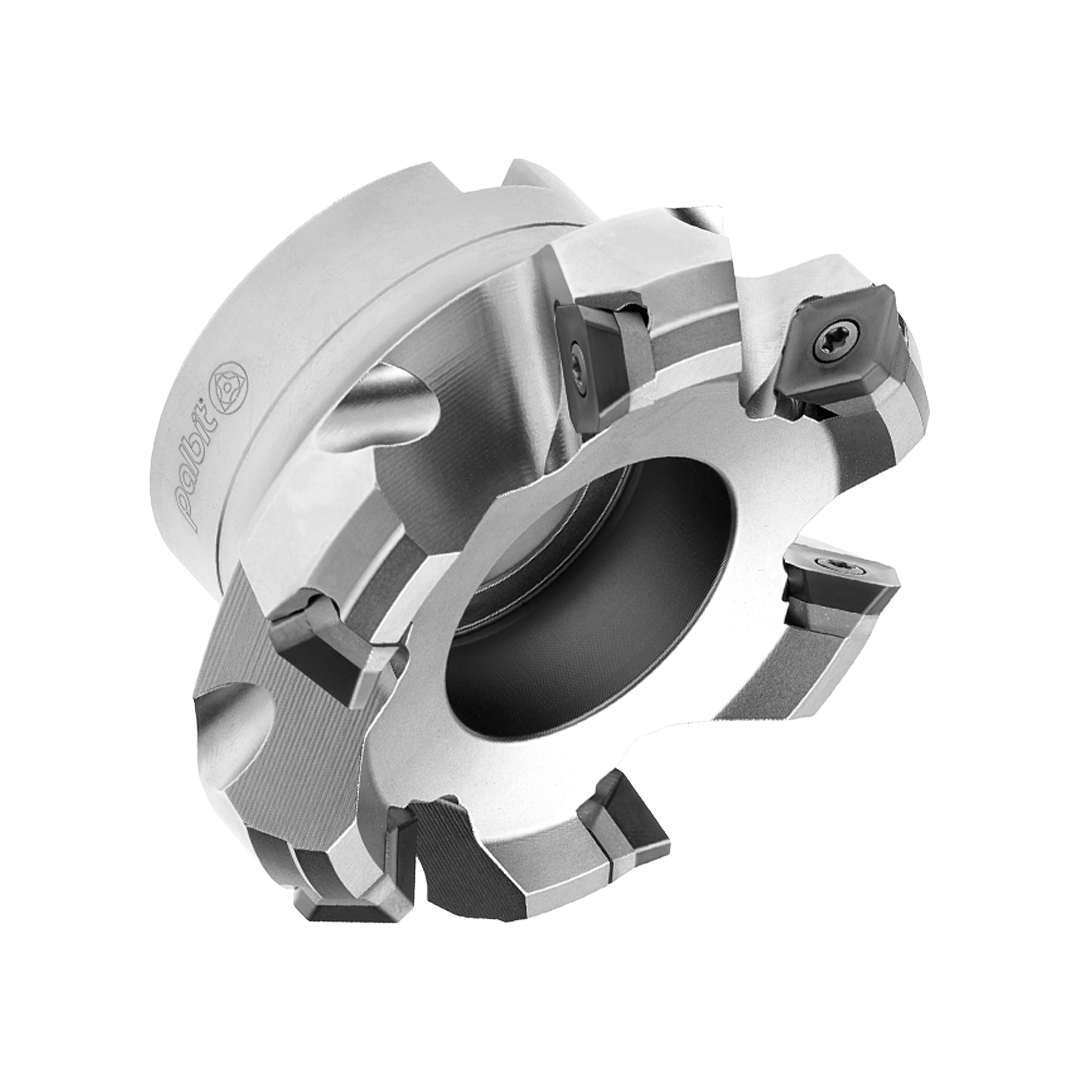

The Palbit Arbor Mounting Holder is a precision mounting solution designed for CNC grooving and parting with SE13T3 inserts. Compatible with a 125mm cutter diameter, it delivers secure clamping and exceptional rigidity to ensure accurate, repeatable cuts and longer tool life in demanding production environments.

Engineers and machinists rely on this holder to maintain consistent cutting performance across high-volume runs. Its stable seating and robust construction help achieve reliable surfaces and reduce rework, even under tougher machining conditions.

  • Rigid, high-precision clamping: Locks SE13T3 inserts securely for repeatable seating and consistently accurate cuts, improving surface finish with every pass.
  • Secure retention for demanding cycles: Minimizes movement and chatter during heavy cuts, extending tool life and reducing downtime from tool wear.
  • Durable industrial-grade construction: Built to withstand harsh CNC environments, resisting wear and corrosion for dependable long-term performance.

By providing fast, dependable setup and stable, repeatable results, the Palbit Arbor Mounting Holder helps you maintain tight tolerances, shorten cycle times, and deliver high-quality finishes batch after batch.

Insert Size & Shape SE13T3
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 8
Connection Diameter (DCONMS) 40
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 90
Tool Cutting Edge Angle (KAPR) 45
Cutting Diameter (DC) 125
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 138
Functional Length (LF) 63
Axial Rake Angel (GAMP) 20
Rdial Rake Angle (GAMF) -11

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit LINEPRO 09945

View full collection →

You are viewing PAL-181024500. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181034700 SE13T3Facing CuttersArbor Mounting5040£233.35 5 days
PAL-181024200 SE13T3Facing CuttersArbor Mounting6340£284.99 5 days
PAL-181024300 SE13T3Facing CuttersArbor Mounting8050£336.83 5 days
PAL-181024400 SE13T3Facing CuttersArbor Mounting10050£413.73 5 days
PAL-181024500 ViewingSE13T3Facing CuttersArbor Mounting12563£491.47 5 days
PAL-181024600 SE13T3Facing CuttersArbor Mounting16063£672.53 5 days
