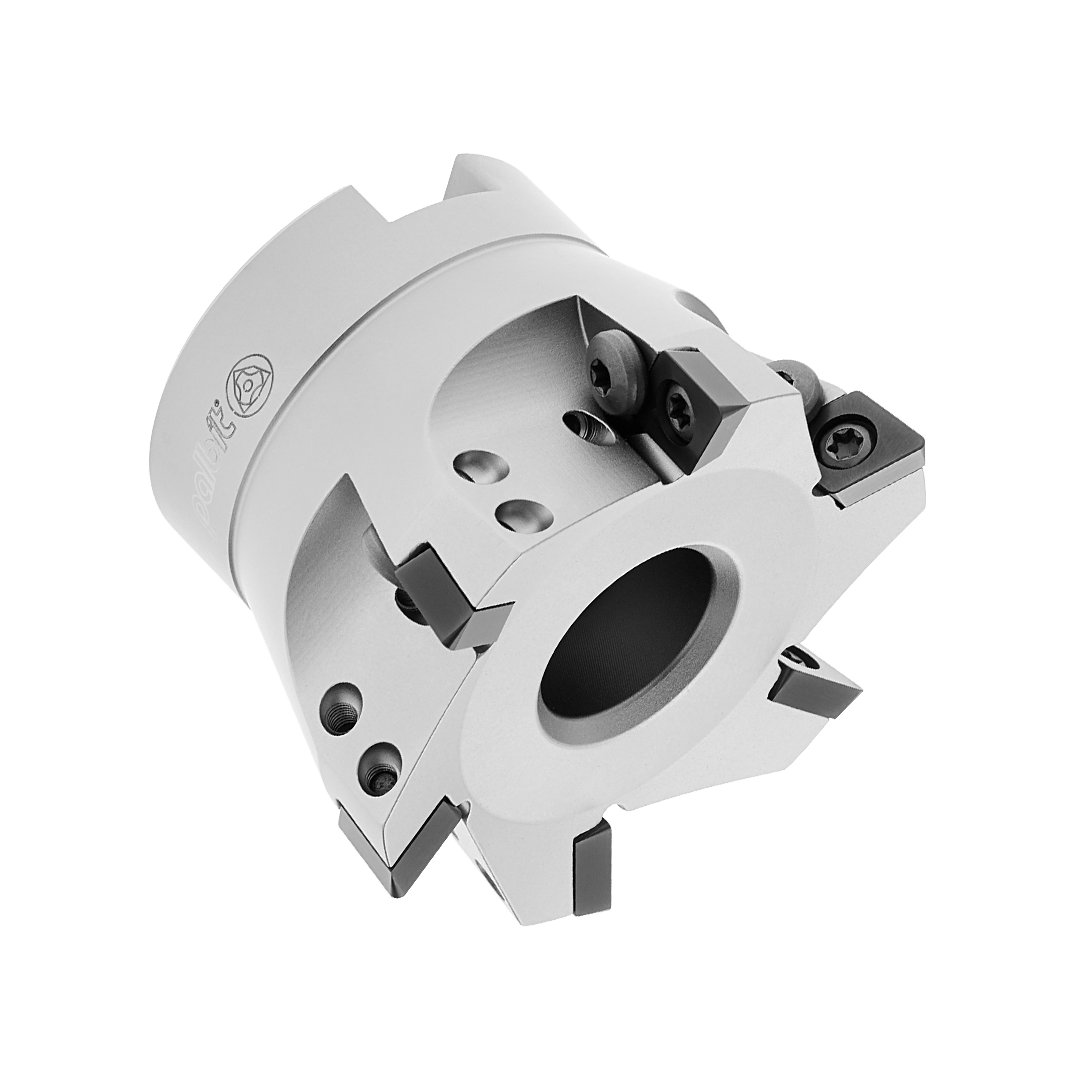

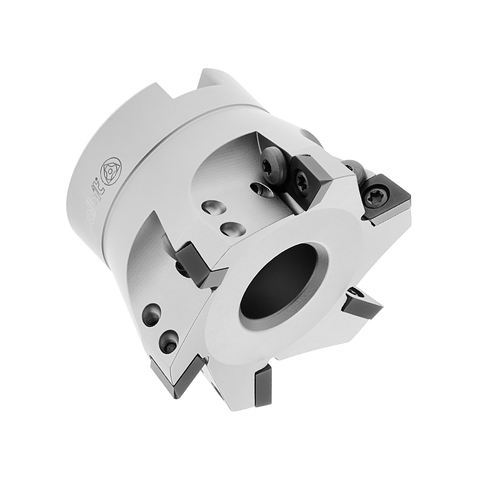

Palbit Arbor Mounting Holder - For XD10T3 Inserts - 80mm Cutter Diameter - 181027900
| Insert Size & Shape | XD10T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 27 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 60 |
Learn more about Klarna
Palbit Arbor Mounting Holder for XD10T3 inserts delivers precise, repeatable grooving and parting performance in high-precision CNC applications. Designed to securely seat XD10T3 inserts, it emphasizes rigidity, accuracy, and extended tool life in demanding production environments.
- XD10T3 Insert Compatibility: Specifically engineered to hold XD10T3 inserts for reliable seating and performance.
- 80mm Cutter Diameter: Optimized dimension tailored for grooving applications requiring an 80mm cutting reach.
- Secure Insert Retention: Robust clamping and interface design ensures inserts stay fixed during heavy cutting.
- High Rigidity Arbor: Precision-machined body minimizes flex and vibration for consistent finishes.
- Durable Construction: Built to withstand demanding production environments, delivering long tool life and dependable accuracy.
By delivering secure retention, rigidity, and consistent cutting performance, this holder helps maintain tight tolerances, reduce downtime, and extend tool life in high-precision grooving and parting tasks. Engineers and machinists rely on Palbit quality to achieve repeatable results across long production runs where precision matters most.
| Insert Size & Shape | XD10T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 27 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 60 |
| Tool Cutting Edge Angle (KAPR) | 95 |
| Cutting Diameter (DC) | 80 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | 7 |
| Rdial Rake Angle (GAMF) | -2 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 40595 - Arbor Mounting
View full collection →You are viewing PAL-181027900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181027900 Viewing | XD10T3 | Profile Cutters | Arbor Mounting | 80 | 50 | £304.14 | 5 days | |
| PAL-181027800 | XD10T3 | Profile Cutters | Arbor Mounting | 66 | 50 | £243.79 | 5 days | |
| PAL-181027700 | XD10T3 | Profile Cutters | Arbor Mounting | 52 | 50 | £204.69 | 5 days |
