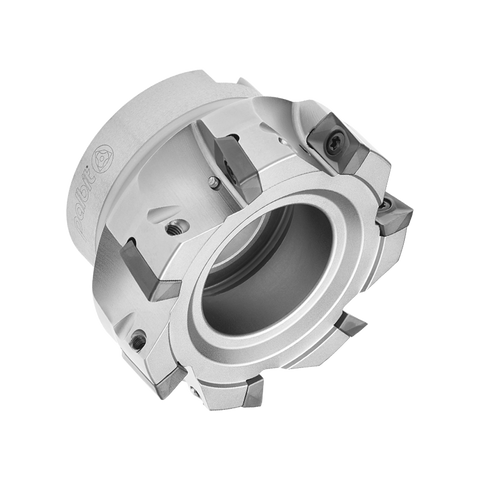

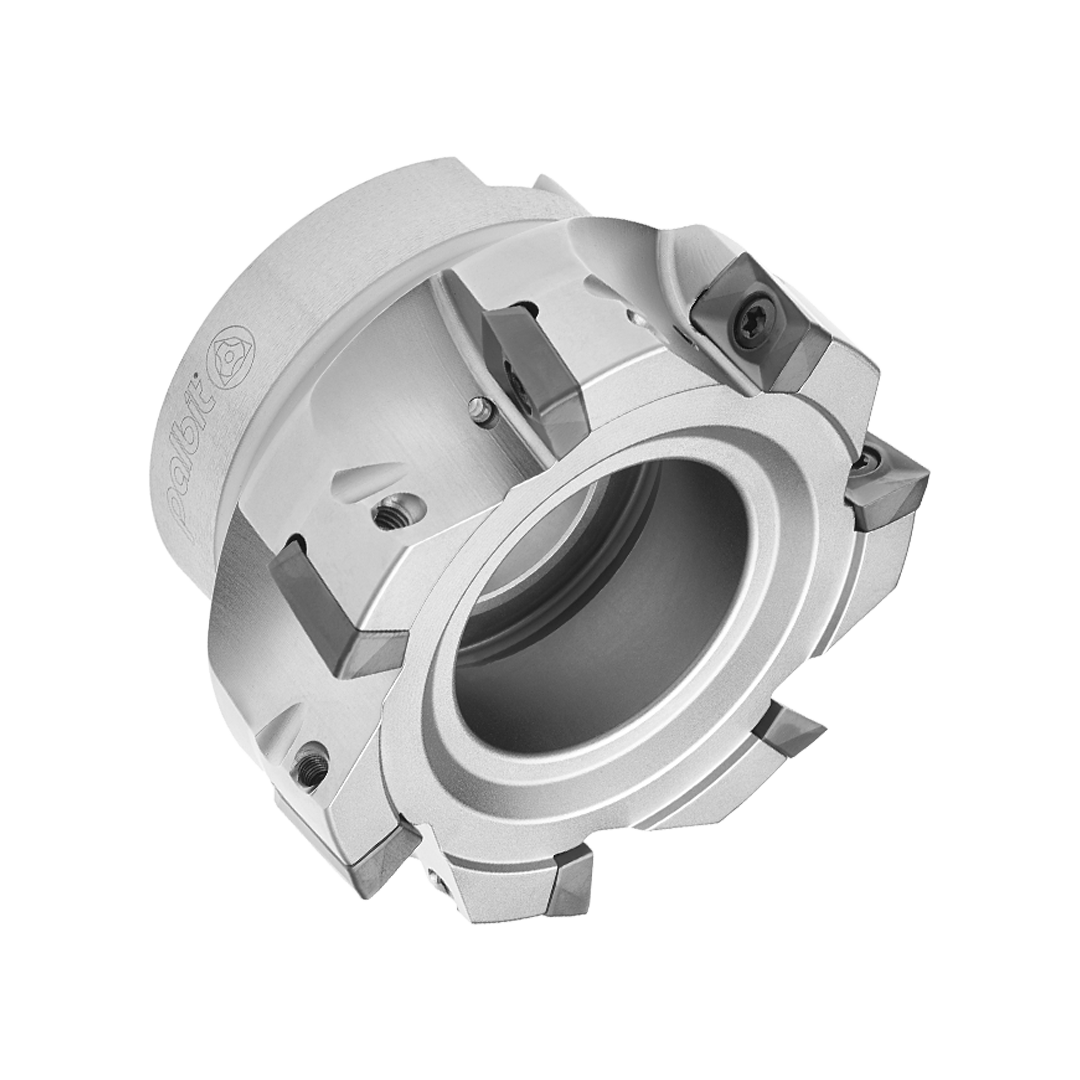

Palbit Arbor Mounting Holder - For AP1604 Inserts - 63mm Cutter Diameter - 181031300
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
Learn more about Klarna
Palbit Arbor Mounting Holder is a precision tooling accessory designed for turning and grooving in CNC operations. Built to fit AP1604 inserts and AP1003-compatible inserts, it provides secure clamping and stable machining performance for repeatable, accurate cuts.
- Compatibility: For AP1604 inserts; perfectly fits AP1003 inserts
- Diameter: 63mm cutter diameter
- Application: Designed for precision turning and grooving
- Clamping & Stability: Secure mounting that minimizes deflection during cutting
- Rigidity & Durability: Built for long tool life in demanding CNC operations
- Part Number: 181031300
With its robust clamping and rigid construction, this holder supports consistent tolerances and smooth tool paths, helping you achieve reliable finishes and extend insert life in high-precision turning and grooving tasks. It simplifies setup and alignment, enabling engineers and machinists to work efficiently with confidence.
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 63 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 9 |
| Rdial Rake Angle (GAMF) | -10 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 18090 - Arbor Mounting
View full collection →You are viewing PAL-181031300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181031400 | AP1604 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £252.09 | 5 days | |
| PAL-181031300 Viewing | AP1604 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £230.52 | 5 days | |
| PAL-181030900 | AP1604 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £200.25 | 5 days | |
| PAL-181031200 | AP1604 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £156.87 | 5 days | |
| PAL-181031600 | AP1604 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £369.48 | 5 days | |
| PAL-181031500 | AP1604 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £317.44 | 5 days |
