Palbit Arbor Mounting Holder - For AP1604 Inserts - 80mm Cutter Diameter - 181031400

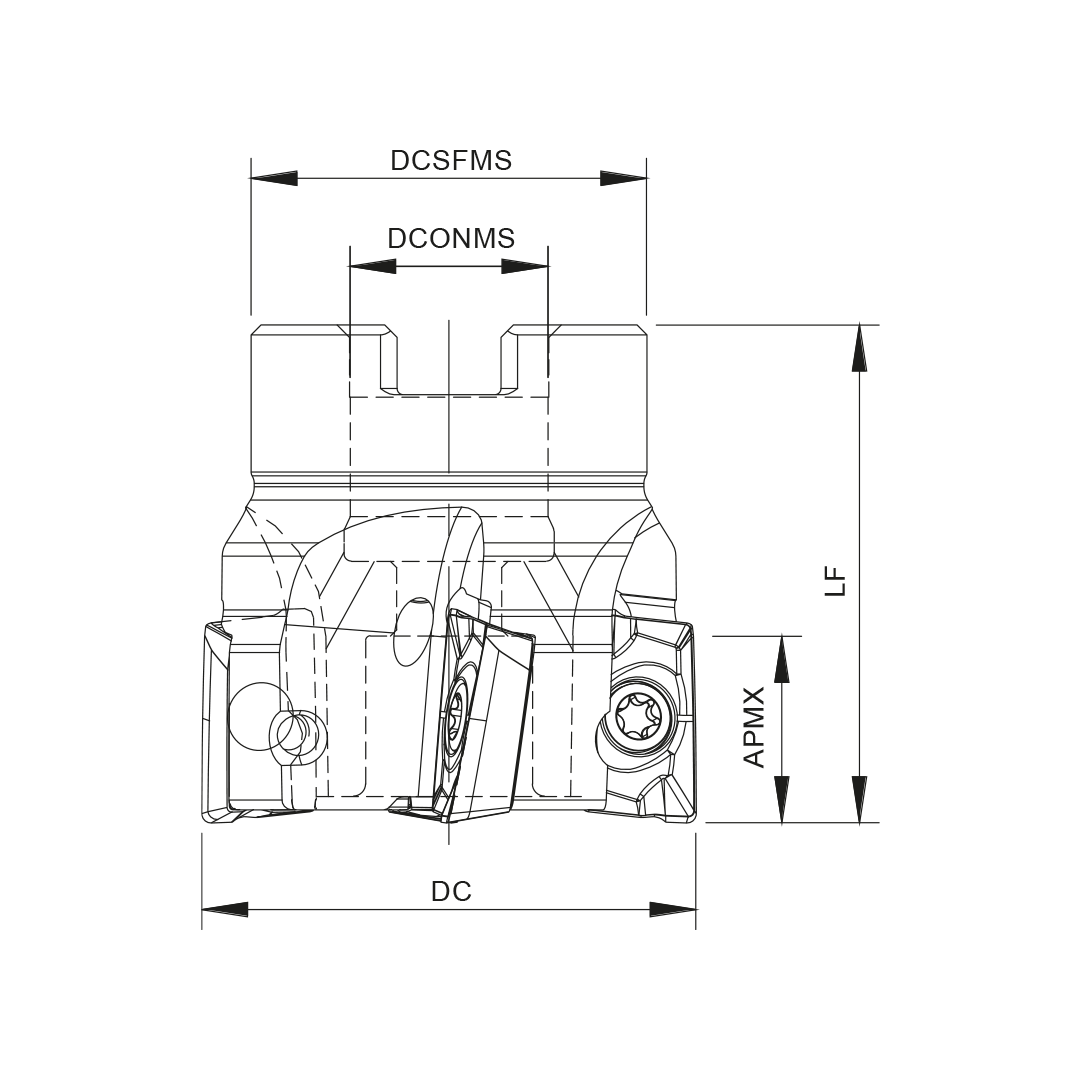

| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 27 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 60 |
Learn more about Klarna

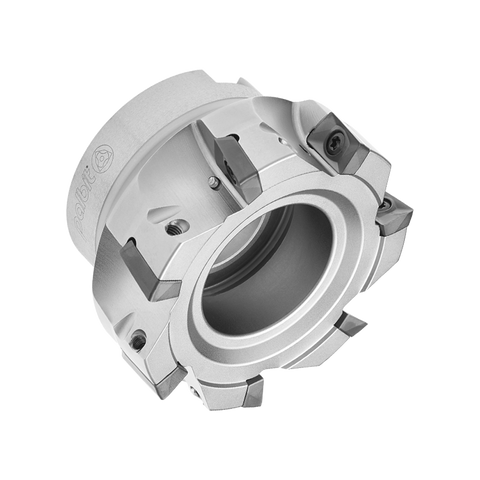

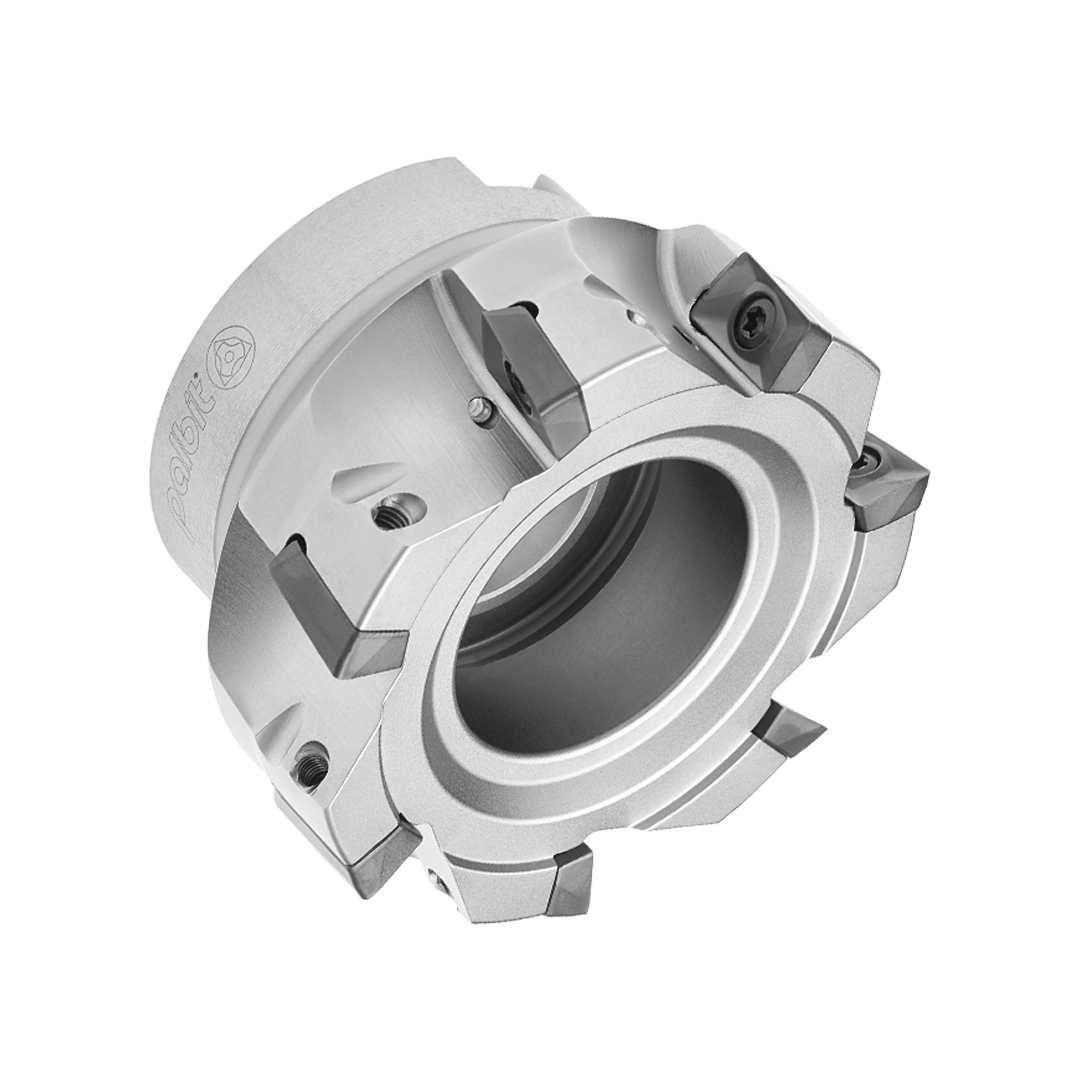

Take precision to the cutting edge with the Palbit Arbor Mounting Holder, engineered for AP1003 inserts and an 80 mm cutter diameter. It’s designed for engineers and machinists who demand consistent, repeatable performance in turning and grooving applications.
- Diameter: 80 mm cutter diameter
- Inserts compatibility: Designed to securely clamp AP1003 inserts
- Mounting type: Arbor mounting holder for precise alignment and stability
- Rigidity & durability: High rigidity and durable construction for consistent results
- Applications: Optimized for precision turning and grooving in demanding CNC operations
- Part number: 181031400
These features combine to deliver secure clamping, reduced tool deflection, and extended tool life, helping you achieve accurate dimensions, smooth finishes, and reliable performance across demanding machining cycles.
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 27 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 60 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 80 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | 10 |
| Rdial Rake Angle (GAMF) | -6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 18090 - Arbor Mounting
View full collection →You are viewing PAL-181031400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181031400 Viewing | AP1604 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £252.09 | 5 days | |
| PAL-181031300 | AP1604 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £230.52 | 5 days | |
| PAL-181030900 | AP1604 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £200.25 | 5 days | |
| PAL-181031200 | AP1604 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £156.87 | 5 days | |
| PAL-181031600 | AP1604 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £369.48 | 5 days | |
| PAL-181031500 | AP1604 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £317.44 | 5 days |
