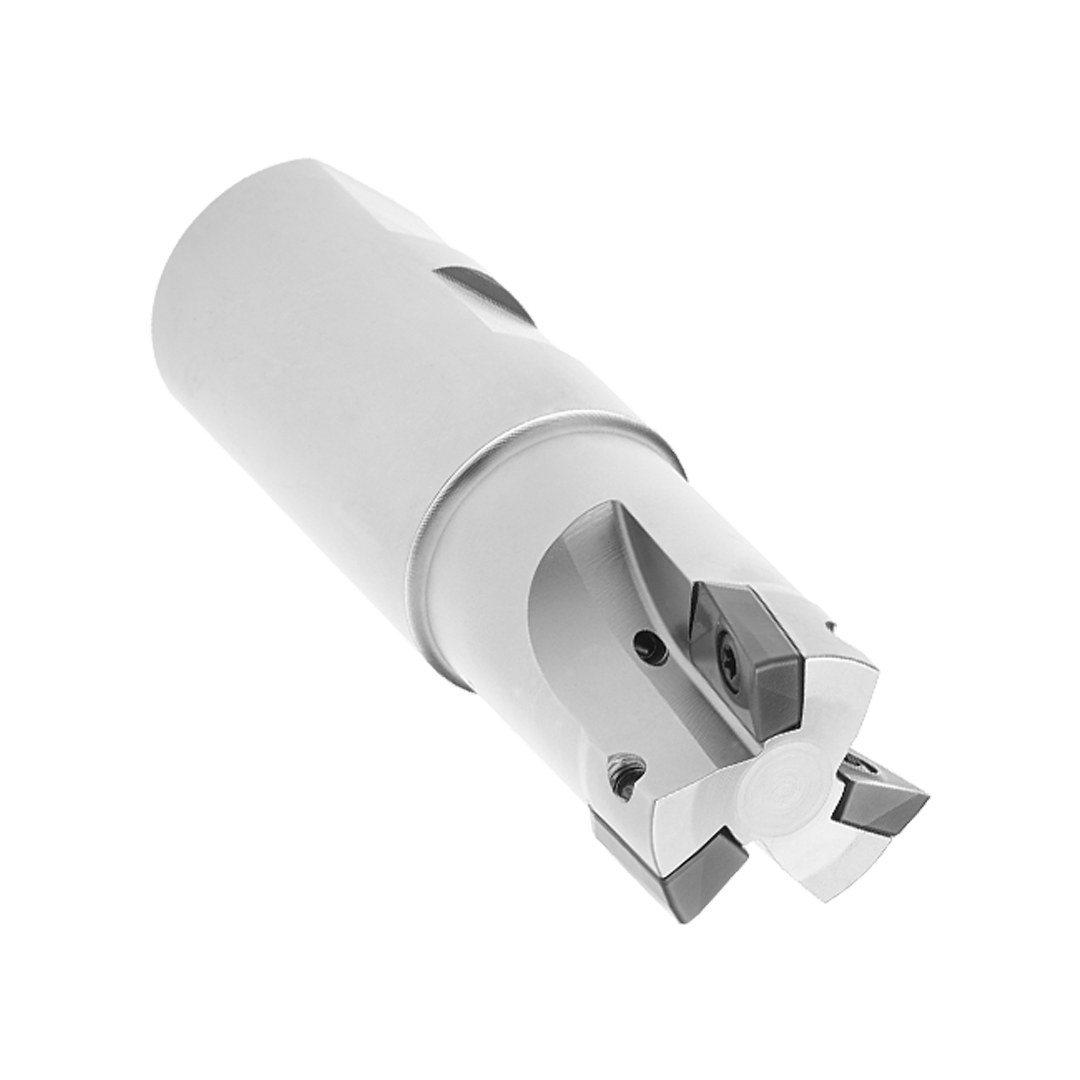

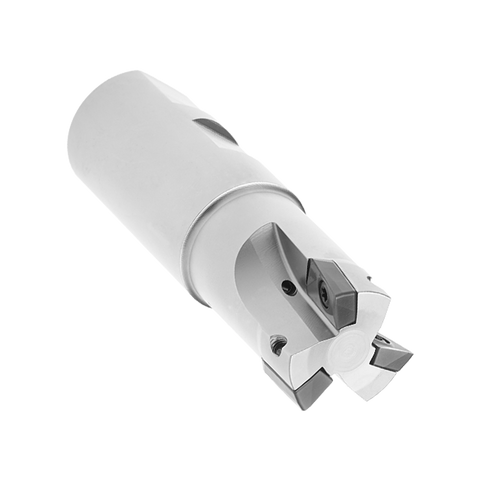

Palbit Weldon Shank Holder - For AP1604 Inserts - 40mm Cutter Diameter - 181042000
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
The Palbit Weldon Shank Holder is a rugged, high-rigidity tool holder engineered for heavy‑duty grooving and parting in CNC machining. Designed to pair with AP1604 inserts and optimized for a 40 mm cutter diameter, it delivers precise, repeatable cuts under demanding conditions.
- Compatibility: Weldon shank holder specifically for AP1604 inserts, ensuring secure fit and reliable performance.
- Cutting Diameter: 40 mm cutter diameter to support robust, productive grooving and parting operations.
- Rigidity: Robust construction and precise alignment provide superior rigidity and reduced deflection during heavy cuts.
- Insert Retention: Secure clamping design minimizes insert movement for consistent accuracy.
- Chip Evacuation: Optimized geometry promotes efficient chip clearance and cooler cutting.
- Application Fit: Built for demanding production environments where stable, long‑lasting tooling is essential.
Designed to deliver precise cutting, reliable performance, and extended tool life, this holder supports consistent tolerances and steady cycle times in tough CNC applications. Trustworthy under continuous production, it helps machinists achieve repeatable results with AP1604 inserts.
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Functional Length (LF) | 115 |
| Usable Length (LU) | 40 |
| Axial Rake Angel (GAMP) | 8 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 18090 - Weldon Shank
View full collection →You are viewing PAL-181042000. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181042000 Viewing | AP1604 | Shouldering Cutters | Weldon Shank | 40 | 115 | £145.42 | 5 days | |
| PAL-181042300 | AP1604 | Shouldering Cutters | Weldon Shank | 40 | 200 | £186.41 | 5 days | |
| PAL-181042200 | AP1604 | Shouldering Cutters | Weldon Shank | 32 | 200 | £213.36 | 5 days | |
| PAL-181041900 | AP1604 | Shouldering Cutters | Weldon Shank | 32 | 110 | £117.03 | 5 days | |
| PAL-181042100 | AP1604 | Shouldering Cutters | Weldon Shank | 25 | 200 | £173.86 | In Stock | |
| PAL-181041800 | AP1604 | Shouldering Cutters | Weldon Shank | 25 | 100 | £107.60 | 5 days |
