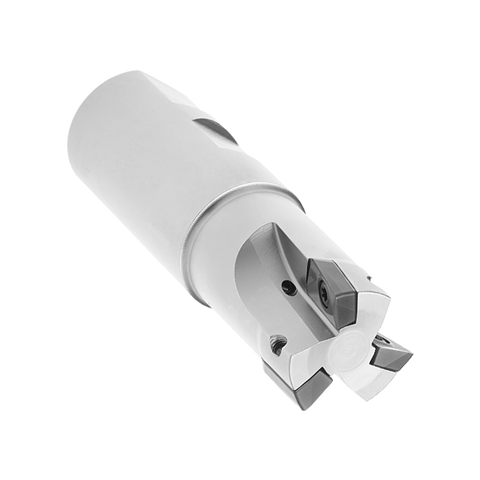

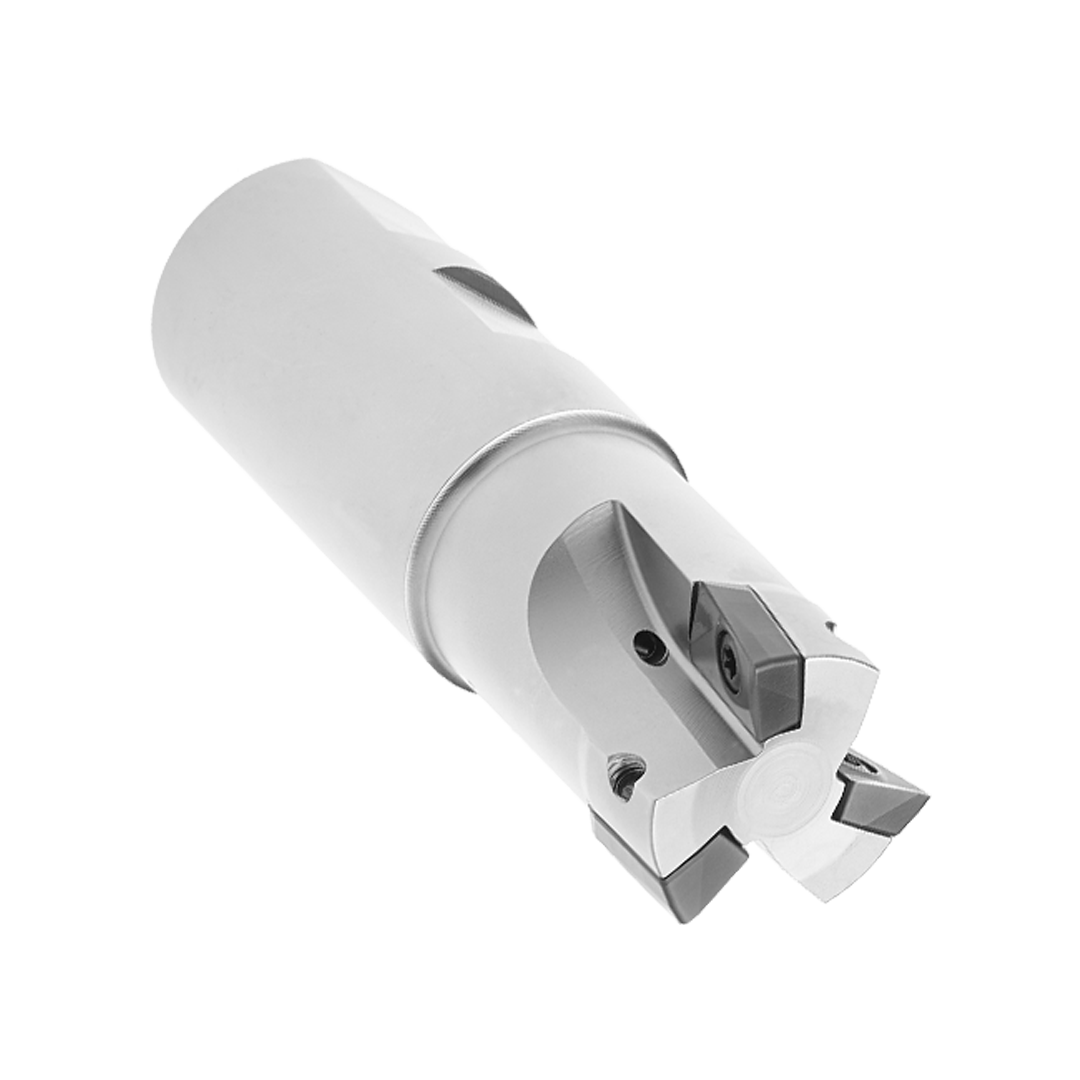

Palbit Weldon Shank Holder - For AP1604 Inserts - 25mm Cutter Diameter - 181042100
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Designed for heavy-duty grooving and parting, the Palbit Weldon Shank Holder for AP1604 inserts delivers exceptional rigidity and secure insert retention for demanding CNC work, model 181042100, with a 25 mm cutter diameter.
- Compatibility: Specifically engineered for AP1604 inserts, ensuring reliable seating and repeatable performance.
- Shank Design: Weldon-style shank provides high rigidity and reduces vibration during aggressive cutting.
- Cutting Diameter: 25 mm cutter diameter supports precise grooving and parting operations.
- Retention System: Secure clamping minimizes insert movement, enhancing consistency and tool life.
- Chip Evacuation: Optimized geometry promotes efficient chip clearance and helps manage heat buildup.
- Durability: Robust construction built to withstand demanding production environments and long cycles.
This holder translates into tangible production advantages: repeatable, precise cuts with reduced chatter, longer insert life from stable retention, and improved process reliability in tough machining scenarios. Designed for engineers and machinists who value consistent accuracy and efficient, high-volume performance in CNC operations.
| Insert Size & Shape | AP1604 |
| Depth of Cut Maximum (APMX) | 14.5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 25 |
| Functional Length (LF) | 200 |
| Usable Length (LU) | 60 |
| Axial Rake Angel (GAMP) | 6 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 18090 - Weldon Shank
View full collection →You are viewing PAL-181042100. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181042000 | AP1604 | Shouldering Cutters | Weldon Shank | 40 | 115 | £145.42 | 5 days | |
| PAL-181042300 | AP1604 | Shouldering Cutters | Weldon Shank | 40 | 200 | £186.41 | 5 days | |
| PAL-181042200 | AP1604 | Shouldering Cutters | Weldon Shank | 32 | 200 | £213.36 | 5 days | |
| PAL-181041900 | AP1604 | Shouldering Cutters | Weldon Shank | 32 | 110 | £117.03 | 5 days | |
| PAL-181042100 Viewing | AP1604 | Shouldering Cutters | Weldon Shank | 25 | 200 | £173.86 | In Stock | |
| PAL-181041800 | AP1604 | Shouldering Cutters | Weldon Shank | 25 | 100 | £107.60 | 5 days |
