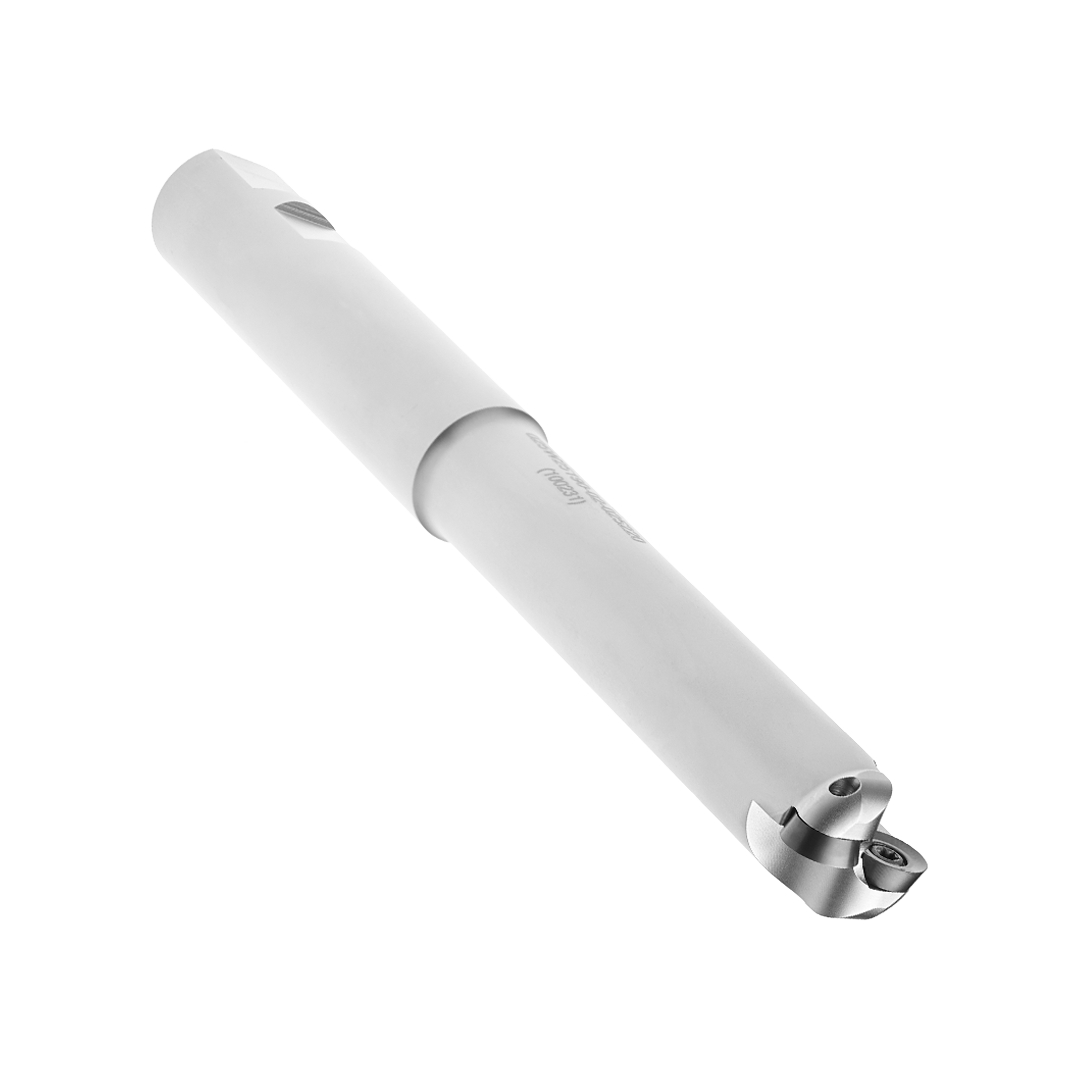

Palbit Weldon Shank Holder - For RD1003 Inserts - 10mm Cutter Diameter - 181047300
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 220 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Weldon Shank Holder for RD1003 inserts delivers stable, high-precision grooving and parting in demanding CNC environments. Engineered for production use, it emphasizes secure insert retention and exceptional rigidity to sustain accuracy and surface finish.
- Compatibility: Dedicated RD1003 insert design to ensure stable seating and reliable engagement.
- Diameter: 10 mm cutter diameter for versatile grooving and parting applications.
- Retention: Secure insert retention that minimizes movement during heavy cuts.
- Rigidity: Exceptional rigidity to reduce deflection and maintain consistent cutting performance.
- Chip Evacuation: Optimised flow design to promote efficient chip removal and heat management.
- Application Focus: Specifically tuned for precision grooving and parting tasks in CNC machining.
These features translate to consistent cutting accuracy across passes, cleaner finishes, and longer tool life. In production environments, the Palbit Weldon Shank Holder provides reliable performance and superior surface finishes, helping engineers and machinists achieve repeatable results with minimal downtime.
| Insert Size & Shape | RD1003 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 220 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 10 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 20 |
| Functional Length (LF) | 220 |
| Axial Rake Angel (GAMP) | 0 |
| Rdial Rake Angle (GAMF) | 0 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 25090 - Weldon Shank
View full collection →You are viewing PAL-181047300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181047300 Viewing | RD1003 | Profile Cutters | Weldon Shank | 10 | 220 | £149.14 | 5 days | |
| PAL-181047200 | RD1003 | Profile Cutters | Weldon Shank | 10 | 160 | £123.10 | 5 days |
