Palbit Arbor Mounting Holder - For AN1607 Inserts - 100mm Cutter Diameter - 181068100
| Insert Size & Shape | AN1607 |
| Depth of Cut Maximum (APMX) | 15 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
Learn more about Klarna

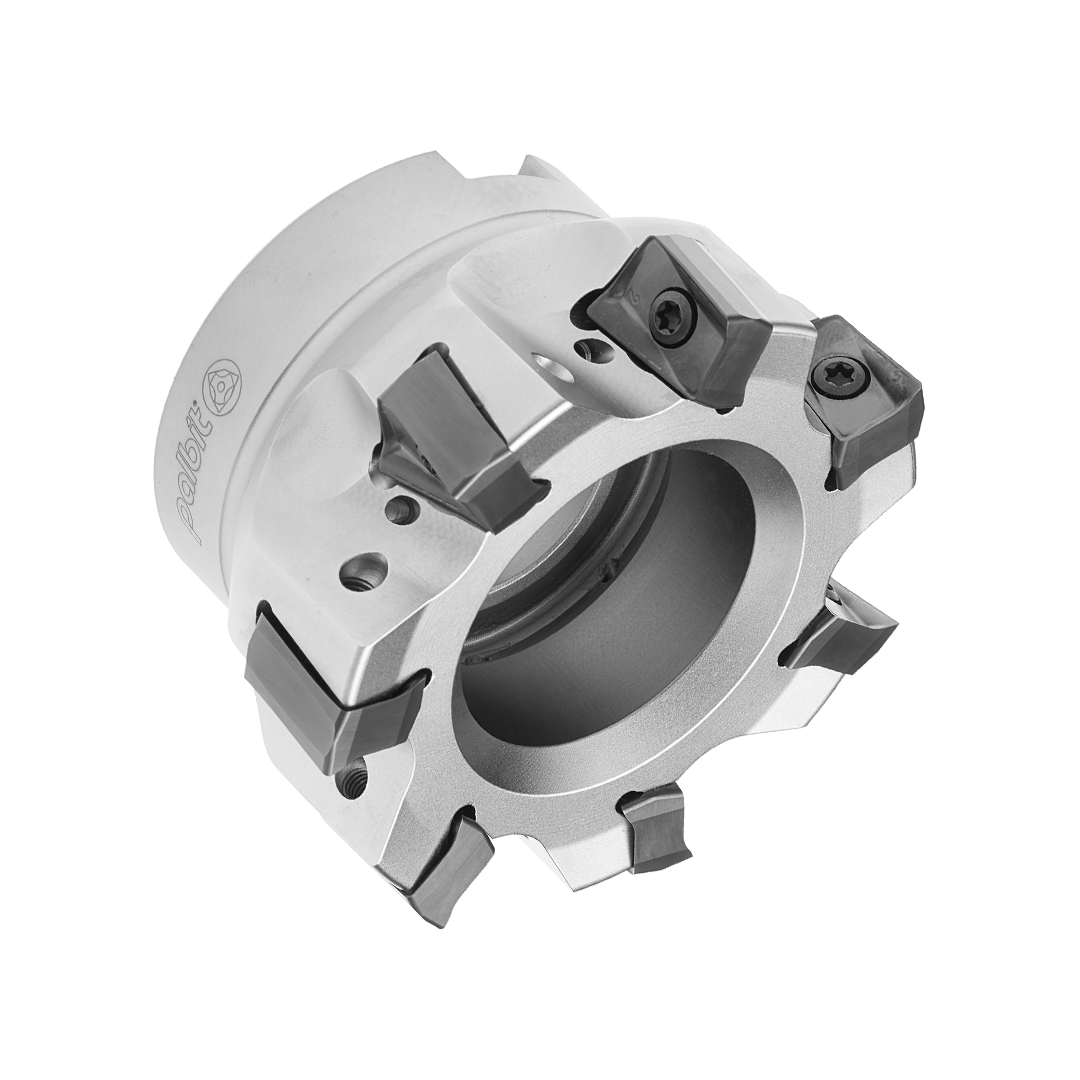

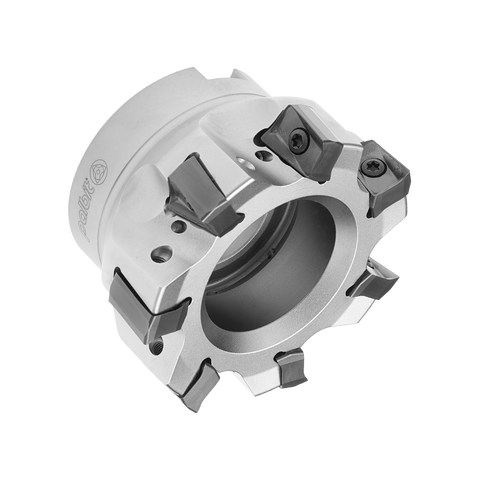

Palbit Arbor Mounting Holder for AN1607 inserts is a rugged accessory engineered for heavy-duty grooving and parting in CNC machining. With a 100 mm cutter diameter, it delivers reliable insert seating and precise alignment for demanding production environments.
- Inserts compatibility: specifically designed for AN1607 inserts to ensure optimal fit and secure retention.
- Diameter: 100 mm cutter diameter tailored for a wide range of grooving and parting applications.
- Rigidity & precision: engineered to maximize stiffness, providing consistent cutting accuracy under high-load conditions.
- Retention & chip evacuation: robust design that secures the insert while promoting efficient chip removal during operation.
- Performance in CNC environments: built for high-demand production settings, delivering stable results and repeatable outcomes.
This holder supports longer tool life and dependable cutting accuracy in tough production conditions, helping machinists reduce downtime, maintain tighter tolerances, and achieve repeatable finishes across batches.
| Insert Size & Shape | AN1607 |
| Depth of Cut Maximum (APMX) | 15 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 100 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | -4 |
| Rdial Rake Angle (GAMF) | -21 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 18190 - Arbor Mounting
View full collection →You are viewing PAL-181068100. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181068000 | AN1607 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £313.93 | 5 days | |
| PAL-181051800 | AN1607 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £391.08 | 5 days | |
| PAL-181067900 | AN1607 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £298.43 | 5 days | |
| PAL-181067800 | AN1607 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £239.39 | 5 days | |
| PAL-181067700 | AN1607 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £230.52 | 5 days | |
| PAL-181067600 | AN1607 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £183.44 | 5 days | |
| PAL-181068600 | AN1607 | Shouldering Cutters | Arbor Mounting | 160 | 63 | £682.69 | 5 days | |
| PAL-181068500 | AN1607 | Shouldering Cutters | Arbor Mounting | 160 | 63 | £546.66 | 5 days | |
| PAL-181068400 | AN1607 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £627.14 | 5 days | |
| PAL-181068300 | AN1607 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £503.10 | 5 days | |
| PAL-181068200 | AN1607 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £450.50 | 5 days | |
| PAL-181068100 Viewing | AN1607 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £360.82 | 5 days |
