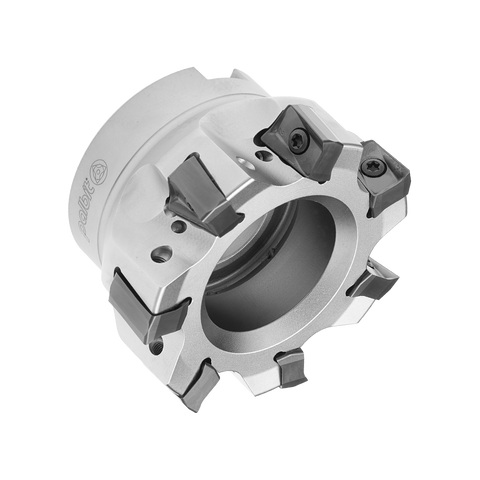

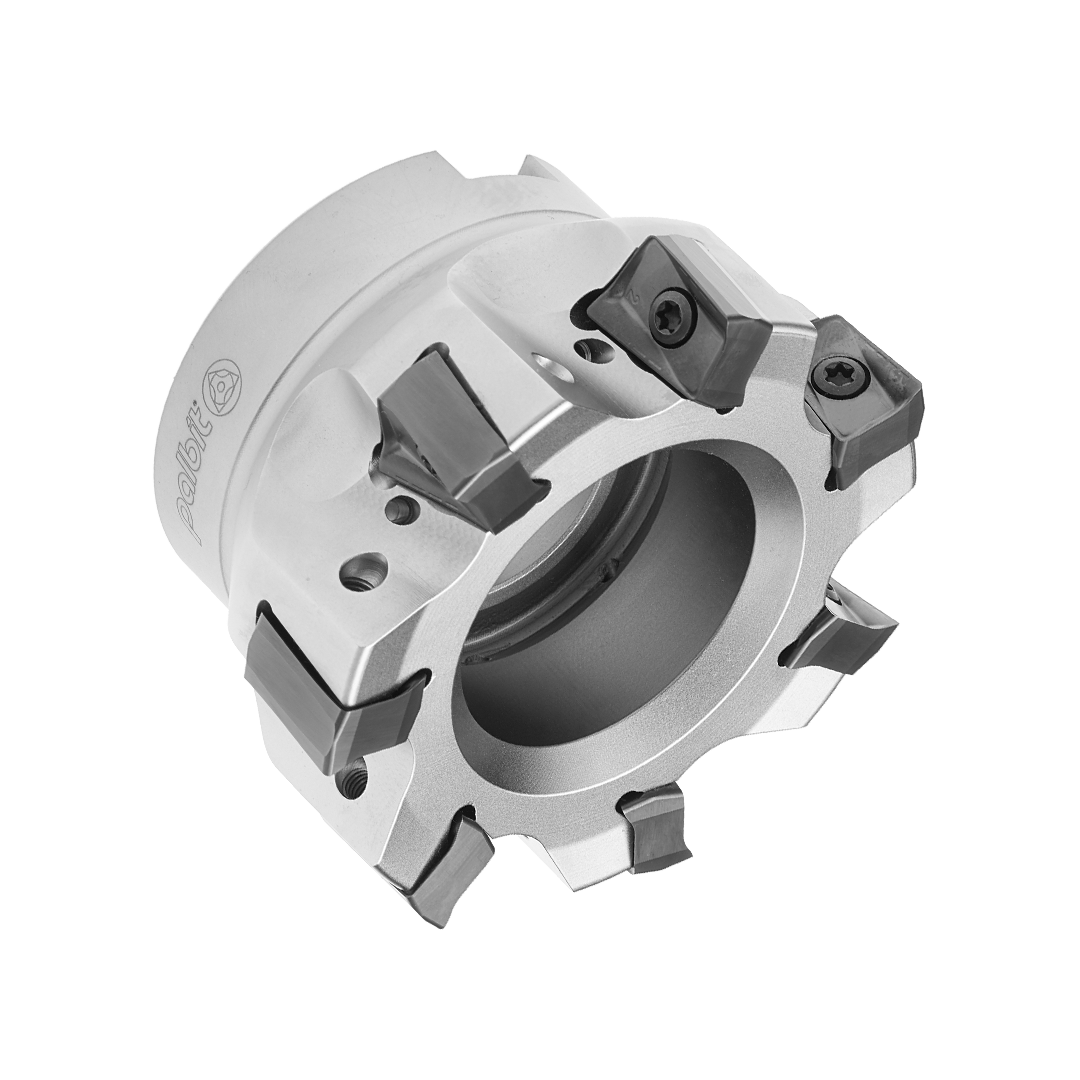

Palbit Arbor Mounting Holder - For AN1607 Inserts - 125mm Cutter Diameter - 181068400
Palbit Vendor Logo

Palbit Arbor Mounting Holder - For AN1607 Inserts - 125mm Cutter Diameter - 181068400

PAL-181068400

Availability: 5 days Estimated lead time, subject to availability

Engineered for heavy-duty grooving and parting tasks, Palbit Arbor Mounting Holders for AN1607 inserts deliver exceptional rigidity and precision. These robust holders ensure secure insert reten... Read more

View Other Sizes Suitable Inserts Suitable Spare Parts
Specification Value
Insert Size & Shape AN1607
Depth of Cut Maximum (APMX) 15
Cutting Item Count (CICT) 10
Connection Diameter (DCONMS) 40
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 90
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 125
Torque (TQ) 3
Functional Length (LF) 63
Axial Rake Angel (GAMP) -4
Rdial Rake Angle (GAMF) -20

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Engineered for heavy-duty grooving and parting tasks, Palbit Arbor Mounting Holders for AN1607 inserts deliver exceptional rigidity and precision. These robust holders ensure secure insert retention, excellent chip evacuation, and consistent performance in high-demand CNC machining environments. Trusted by machinists and engineers for reliable tool life and superior cutting accuracy in tough production conditions.
