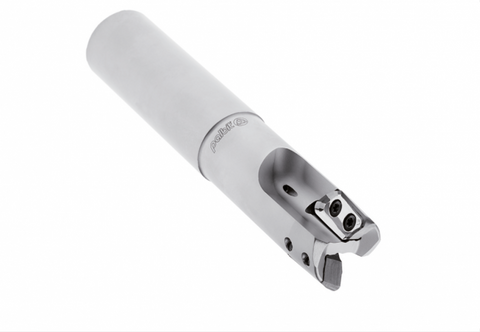

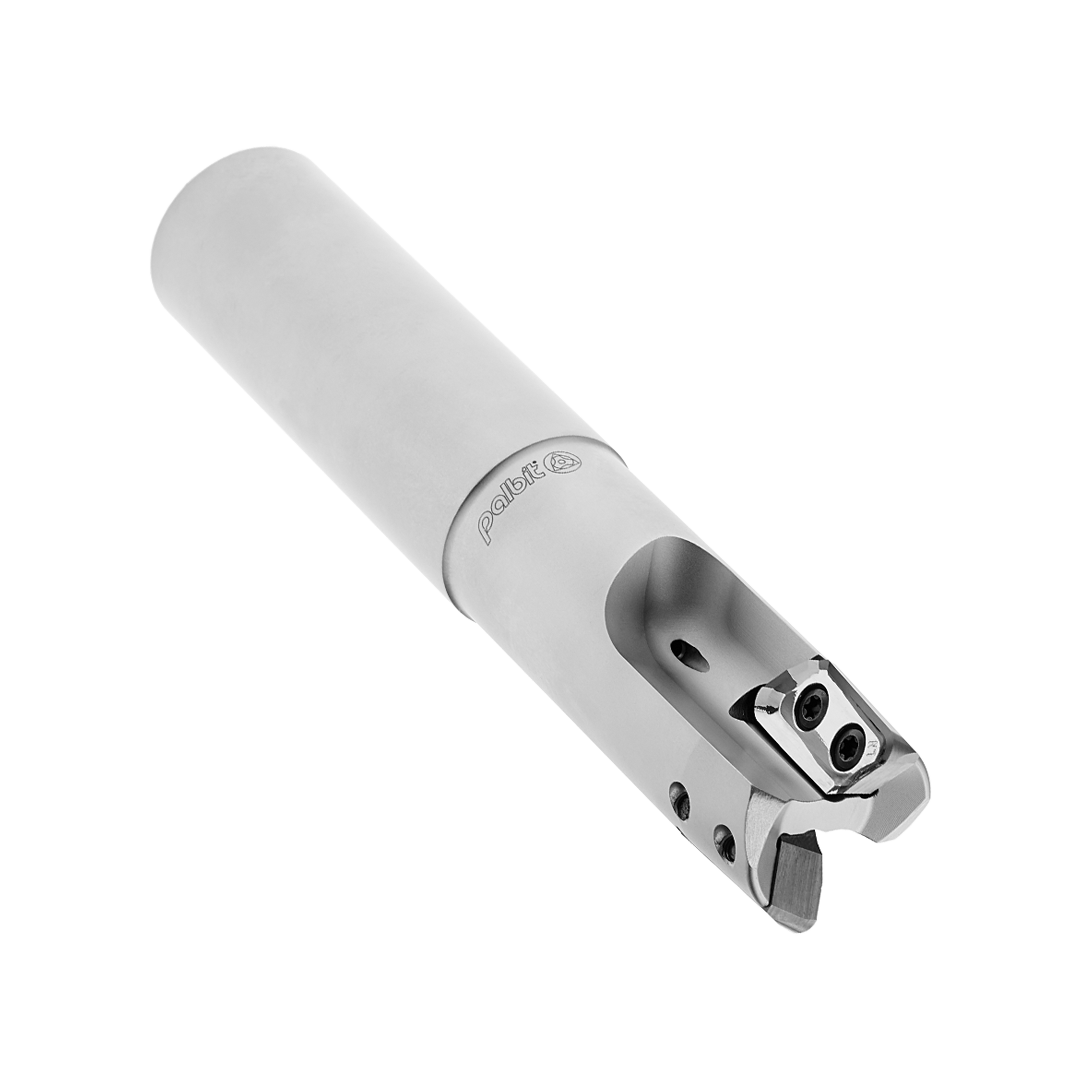

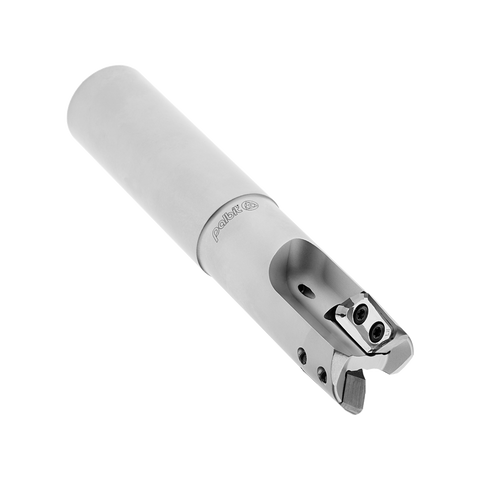

Palbit Cylindrical Shank Holder - For XD22M7 Inserts - 32mm Cutter Diameter - 181069800
| Insert Size & Shape | XD22M7 |
| Depth of Cut Maximum (APMX) | 21 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 32 |
Learn more about Klarna
Palbit Cylindrical Shank Holder is engineered to pair with XD22M7 inserts, delivering stable, precise external threading performance. Designed around a 32 mm cutter diameter, this holder supports repeatable results in demanding CNC setups.
- Compatibility: Engineered for XD22M7 inserts to ensure a precise, secure fit.
- Diameter: 32 mm cutter diameter optimized for external threading applications.
- Construction: Robust cylindrical shank design built to withstand high-demand machining environments.
- Insert Retention: Reliable retention mechanism keeps XD22M7 inserts firmly seated during heavy cuts.
- Stability and Precision: Delivers superior stability and consistent precision across runs.
- Durability: Designed for extended tool life under rigorous operation.
By using the Palbit Cylindrical Shank Holder with XD22M7 inserts, you gain secure insert retention, stable external threading performance, and longer tool life. The robust design supports dependable operation across high-demand cycles, helping you achieve tight tolerances and improved surface finish. Trusted by CNC engineers and machinists for reliable, repeatable results.
| Insert Size & Shape | XD22M7 |
| Depth of Cut Maximum (APMX) | 21 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Contact Surface Machine Side (DCSFMS) | 32 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 70 |
| Usable Length (LU) | 80 |
| Axial Rake Angel (GAMP) | 6 |
| Rdial Rake Angle (GAMF) | -10 |
