Palbit Threaded Coupling Holder - For SO0803 Inserts - 20mm Cutter Diameter - 181071900
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 16 |
| Tool Cutting Edge Angle (KAPR) | 10 |
Learn more about Klarna

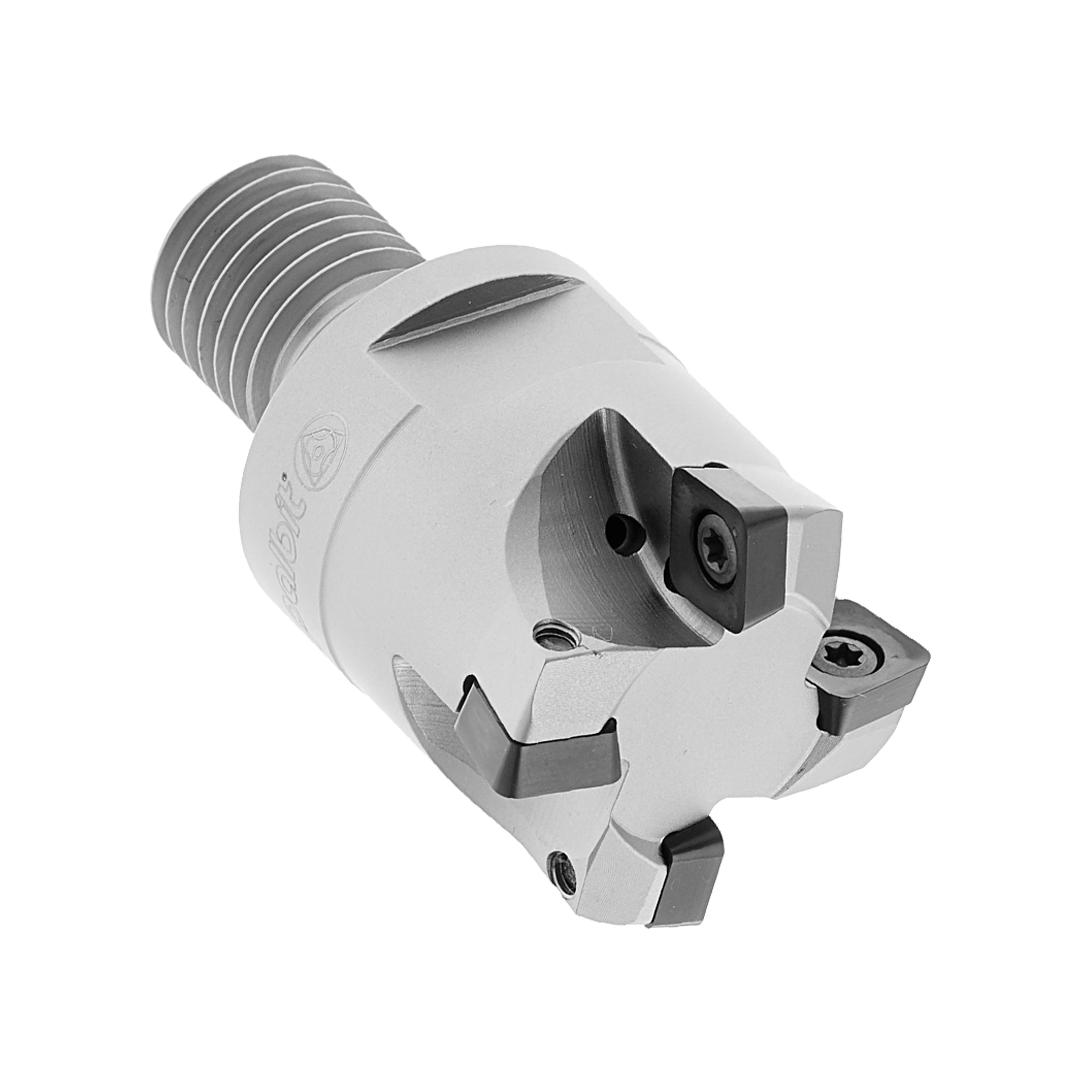

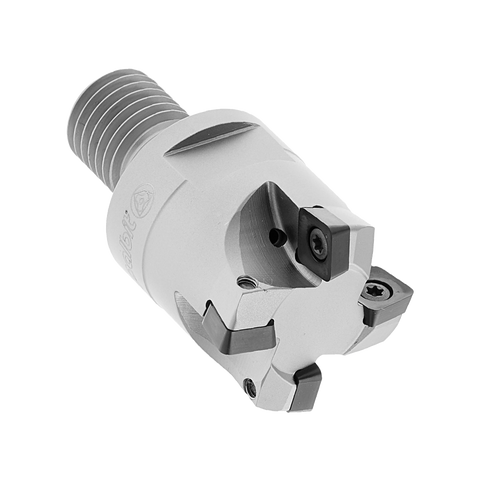

Palbit Threaded Coupling Holder is a rugged, purpose-built tool holder designed for SO0803 inserts, delivering precise internal threading with dependable stability in demanding CNC environments.
- Compatibility: Specifically designed to accept SO0803 inserts for a seamless threading workflow.
- Diameter: 20 mm cutter diameter for compact, fine-thread applications.
- Threaded Coupling: Robust threaded interface that enhances insert retention and minimizes runout during cutting.
- Rigidity & Retention: Engineered body provides exceptional rigidity to maintain accurate thread profiles under load.
- Chip Evacuation: Optimized chip flow to reduce buildup and improve cutting efficiency.
- Tool Life: Durable construction aimed at longer tool life in precision threading tasks.
- Part Number: 181071900 for precise product identification.
By marrying a stiff, secure interface with efficient chip management, this holder delivers consistent thread accuracy and reliable performance across high-precision CNC threading operations. Its 20 mm cutter diameter supports compact tooling without compromising on stability, making it a dependable choice for engineers and machinists focused on repeatable, high-quality internal threads.
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 2 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 16 |
| Tool Cutting Edge Angle (KAPR) | 10 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 25 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06410 - Threaded Coupling
View full collection →You are viewing PAL-181071900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181076900 | SO0803 | HI Feed | Threaded Coupling | 42 | 35 | £173.86 | 5 days | |
| PAL-181076800 | SO0803 | HI Feed | Threaded Coupling | 35 | 35 | £152.64 | 5 days | |
| PAL-181076700 | SO0803 | HI Feed | Threaded Coupling | 32 | 35 | £152.64 | 5 days | |
| PAL-181076600 | SO0803 | HI Feed | Threaded Coupling | 25 | 28 | £130.84 | 5 days | |
| PAL-181071900 Viewing | SO0803 | HI Feed | Threaded Coupling | 20 | 25 | £117.77 | 5 days |
