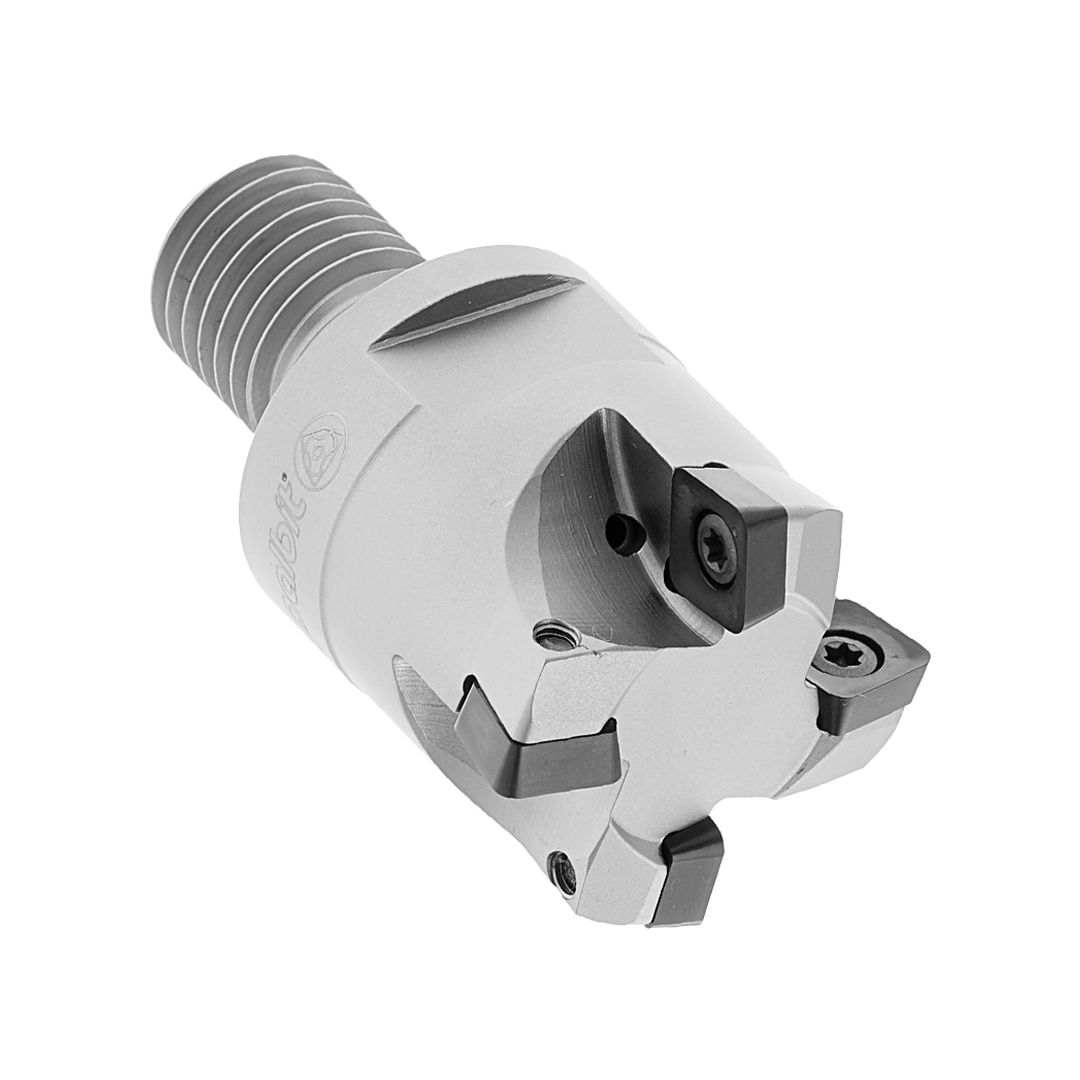

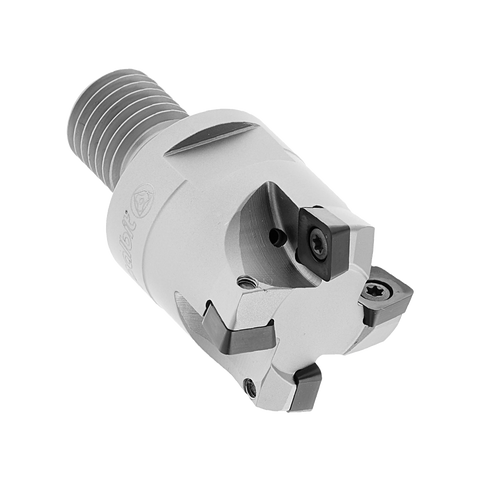

Palbit Threaded Coupling Holder - For SO0803 Inserts - 35mm Cutter Diameter - 181076800
Palbit Vendor Logo

Palbit Threaded Coupling Holder - For SO0803 Inserts - 35mm Cutter Diameter - 181076800

PAL-181076800

Availability: 5 days Estimated lead time, subject to availability

Engineered for fine internal threading, Palbit Threaded Coupling Holders designed for SO0803 inserts provide exceptional rigidity and secure insert retention. These holders deliver precise threa... Read more

View Other Sizes Suitable Inserts Suitable Spare Parts
Specification Value
Insert Size & Shape SO0803
Depth of Cut Maximum (APMX) 1
Cutting Item Count (CICT) 4
Adaptive Interface Machine Direction Threaded Coupling
Contact Surface Machine Side (DCSFMS) 29
Tool Cutting Edge Angle (KAPR) 10
Cutting Diameter (DC) 35
Torque (TQ) 1.4
Functional Length (LF) 35
Axial Rake Angel (GAMP) 2
Rdial Rake Angle (GAMF) -3

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Engineered for fine internal threading, Palbit Threaded Coupling Holders designed for SO0803 inserts provide exceptional rigidity and secure insert retention. These holders deliver precise thread profiles, efficient chip evacuation, and long tool life, making them ideal for high-accuracy CNC threading operations. Trusted by engineers and machinists for reliable performance in demanding precision machining environments.
