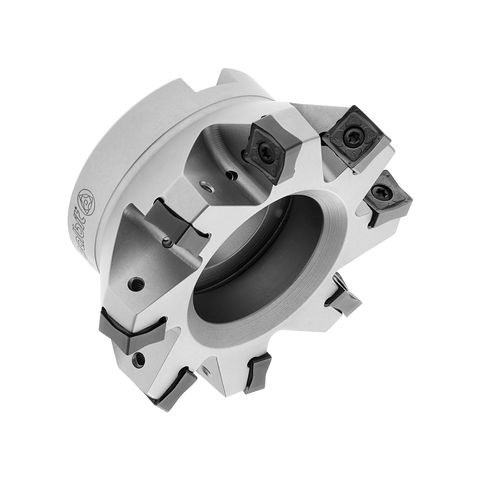

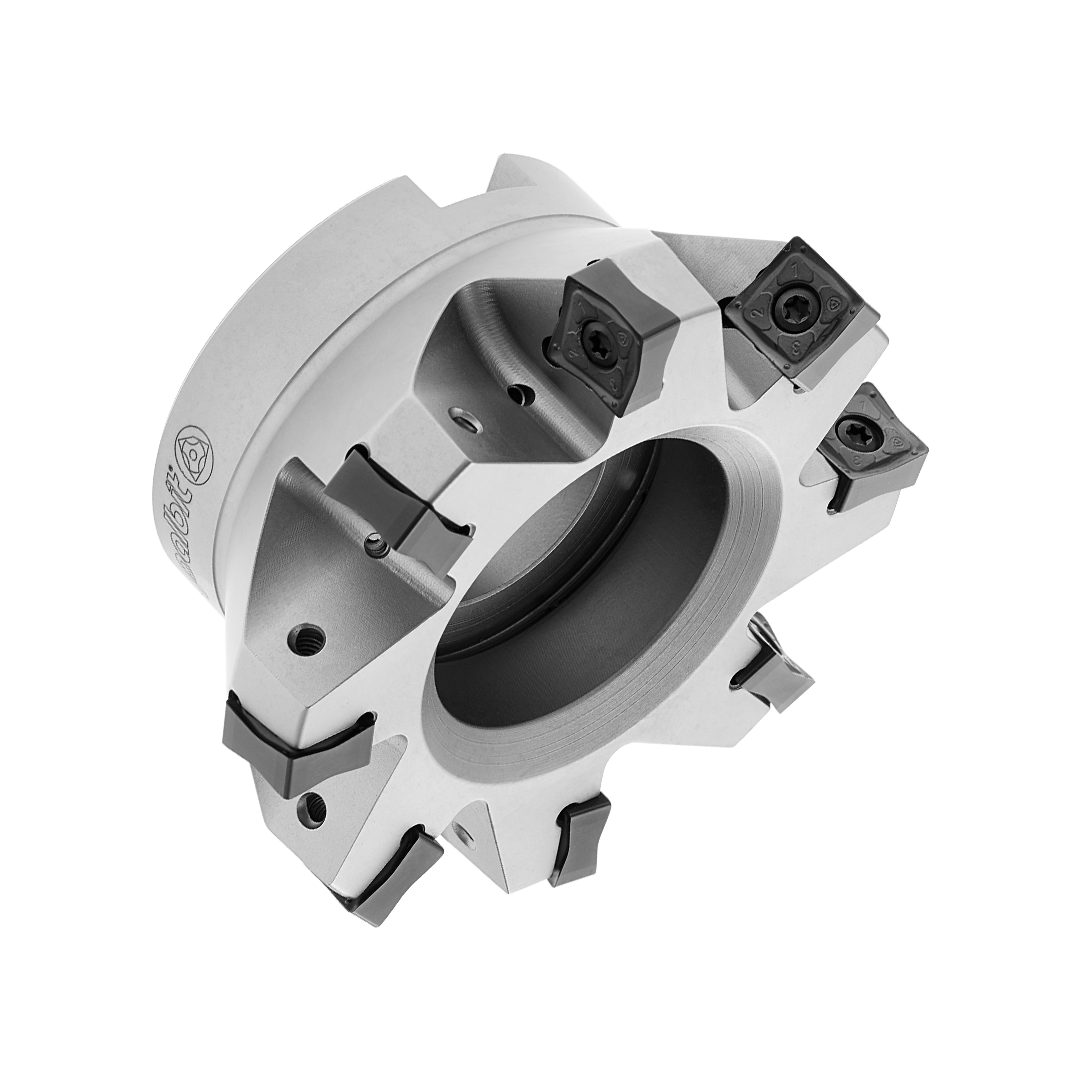

Palbit Arbor Mounting Holder - For SN1206 Inserts - 100mm Cutter Diameter - 181092000

PAL-181092000

Availability: 5 days Estimated lead time, subject to availability

Engineered for precision grooving and parting, Palbit Arbor Mounting Holders designed for SN1206 inserts provide secure clamping and exceptional rigidity. These holders deliver consistent cuttin... Read more

Specification Value
Insert Size & Shape SN1206
Depth of Cut Maximum (APMX) 10.5
Cutting Item Count (CICT) 11
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 73
Tool Cutting Edge Angle (KAPR) 88
Cutting Diameter (DC) 100
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 100.9
Functional Length (LF) 50
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -9

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Engineered for precision grooving and parting, Palbit Arbor Mounting Holders designed for SN1206 inserts provide secure clamping and exceptional rigidity. These holders deliver consistent cutting performance and extended tool life, making them ideal for demanding CNC machining operations. Trusted by engineers and machinists seeking reliable accuracy and superior surface finishes in production environments.
