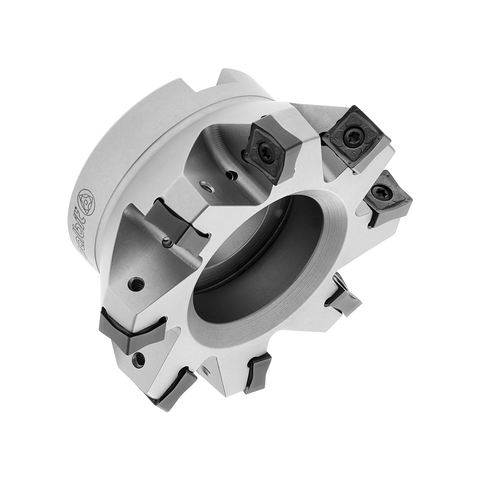

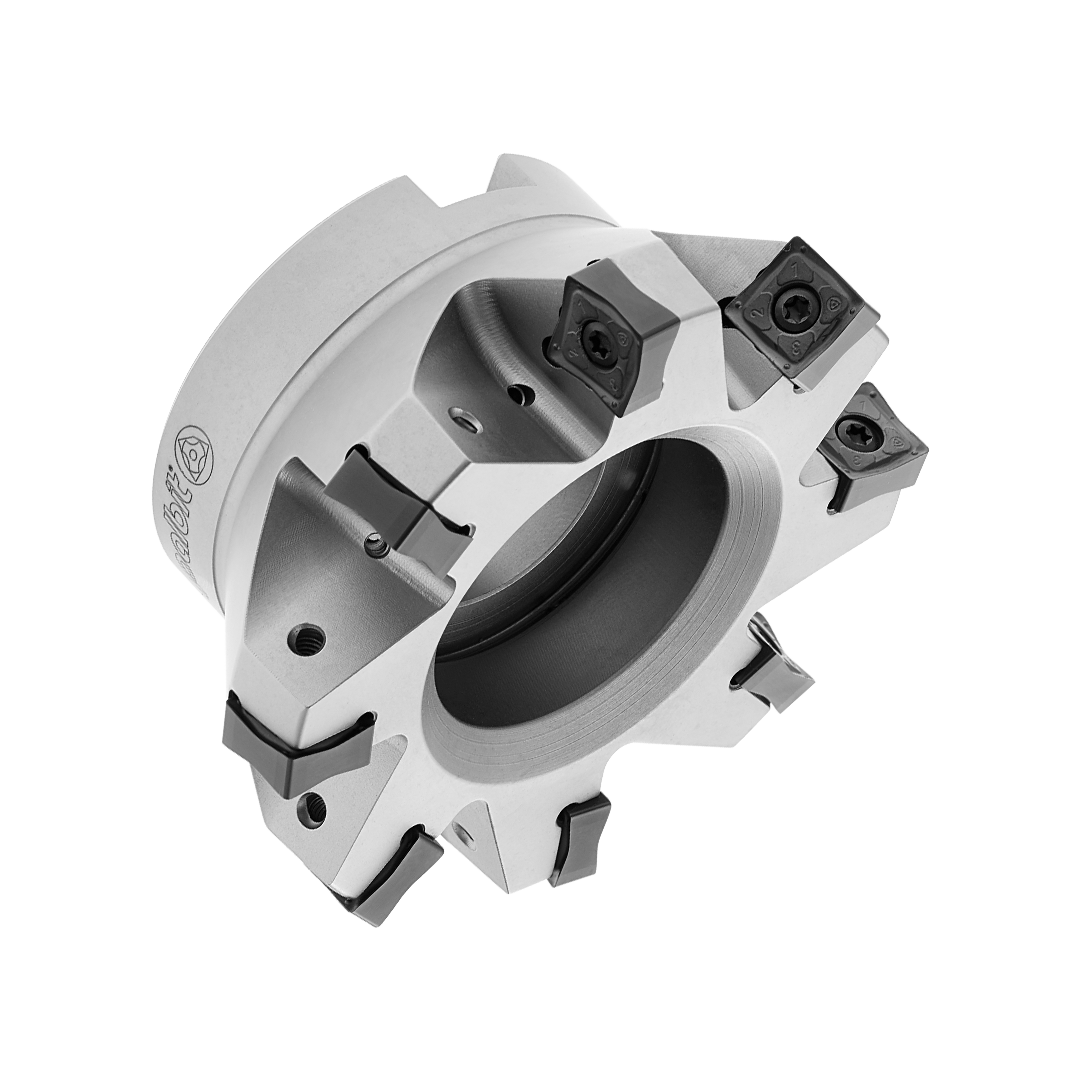

Palbit Arbor Mounting Holder - For SN1206 Inserts - 125mm Cutter Diameter - 181092200

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Palbit Arbor Mounting Holder - For SN1206 Inserts - 125mm Cutter Diameter - 181092200

SKU:PAL-181092200

Specification

Insert Size & Shape	SN1206
Depth of Cut Maximum (APMX)	10.5
Cutting Item Count (CICT)	14
Connection Diameter (DCONMS)	40
Adaptive Interface Machine Direction	Arbor Mounting
Contact Surface Machine Side (DCSFMS)	90

£596.67

Prices shown ex. VAT

5 days estimated lead time — subject to availability

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder for SN1206 inserts is a precision mounting solution for grooving and parting on CNC machines. Designed for engineers, machinists, and busy production environments, it delivers secure clamping and exceptional rigidity for accurate, repeatable cuts, with compatibility for a 125 mm cutter diameter to tackle high‑duty applications.

Secure clamping and exceptional rigidity: Keeps SN1206 inserts firmly seated during heavy cuts, reducing runout and chatter for a consistent, high‑quality surface finish.
Consistent performance and extended tool life: Balanced geometry and reliable seating deliver uniform chip loads, supporting long production runs and fewer tool changes.
Rugged, easy‑to‑use arbor for demanding production: Precision‑machined components and durable materials withstand tough environments while simplifying setup and maintenance.

By pairing Palbit's precision arbor with SN1206 inserts, shops gain dependable accuracy, repeatable results, and improved workflow. The robust design minimizes vibration, supports higher feed rates, and reduces downtime due to tool drift, helping you meet tight tolerances and production schedules with confidence.

Insert Size & Shape	SN1206
Depth of Cut Maximum (APMX)	10.5
Cutting Item Count (CICT)	14
Connection Diameter (DCONMS)	40
Adaptive Interface Machine Direction	Arbor Mounting
Contact Surface Machine Side (DCSFMS)	90
Tool Cutting Edge Angle (KAPR)	88
Cutting Diameter (DC)	125
Torque (TQ)	3
Maximum Cutting Diameter (DCX)	125.9
Functional Length (LF)	63
Axial Rake Angel (GAMP)	-6
Rdial Rake Angle (GAMF)	-9

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: PLUS 28088 - Arbor Mounting

View full collection →

You are viewing PAL-181092200. Click any other SKU to view its full details.

Product SKU	Insert Size and Shape	Application	Adaptive Machine Direction	Cutting Diameter (DC)	Functional Length (LF)	Price	Stock

PAL-181091800	SN1206	Facing Cutters	Arbor Mounting	80	50	£358.04	5 days
PAL-181091700	SN1206	Facing Cutters	Arbor Mounting	80	50	£318.18	5 days
PAL-181091600	SN1206	Facing Cutters	Arbor Mounting	63	40	£278.51	5 days
PAL-181084300	SN1206	Facing Cutters	Arbor Mounting	50	40	£238.63	5 days
PAL-181092900	SN1206	Facing Cutters	Arbor Mounting	200	63	£1,152.94	5 days
PAL-181092800	SN1206	Facing Cutters	Arbor Mounting	200	63	£994.05	5 days
PAL-181092300	SN1206	Facing Cutters	Arbor Mounting	160	63	£636.17	5 days
PAL-181092200 Viewing	SN1206	Facing Cutters	Arbor Mounting	125	63	£596.67	5 days
PAL-181092100	SN1206	Facing Cutters	Arbor Mounting	125	63	£517.12	5 days
PAL-181092000	SN1206	Facing Cutters	Arbor Mounting	100	50	£477.28	5 days
PAL-181091900	SN1206	Facing Cutters	Arbor Mounting	100	50	£397.54	5 days
