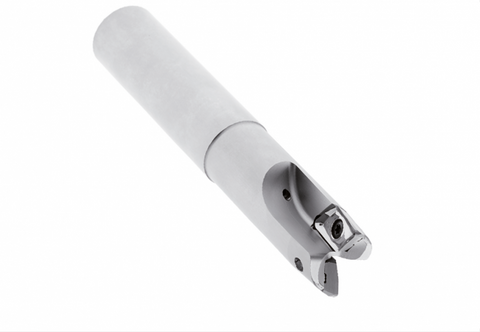

Palbit Cylindrical Shank Holder - For XD15M5 Inserts - 20mm Cutter Diameter - 181095000

Palbit Cylindrical Shank Holder - For XD15M5 Inserts - 20mm Cutter Diameter - 181095000

SKU:PAL-181095000
Palbit Cylindrical Shank Holder is engineered for XD15M5 inserts, delivering precise, dependable performance in internal threading applications. With a 20mm cutter diameter, it combines robust con... Read more ↓
Specification
Insert Size & ShapeXD15M5
Depth of Cut Maximum (APMX)14
Cutting Item Count (CICT)1
Connection Diameter (DCONMS)20
Adaptive Interface Machine DirectionCylindrical Shank
Tool Cutting Edge Angle (KAPR)90
View all specifications ↓
£199.15
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Cylindrical Shank Holder is engineered for XD15M5 inserts, delivering precise, dependable performance in internal threading applications. With a 20mm cutter diameter, it combines robust construction with secure insert fitment to maximise productivity in demanding CNC environments.

  • Compatibility: XD15M5 inserts
  • Shank design: Cylindrical shank for rigid, balanced mounting
  • Diameter: 20 mm cutter diameter
  • Coupling: Threaded coupling for secure insert locking
  • Application: Ideal for internal threading operations
  • Performance: Secure insert fitment with excellent chip control
  • Durability: Built for long-lasting operation in demanding machining environments

By using this Palbit holder, you’ll experience consistent threading accuracy, reduced tool deflection, and reliable chip evacuation. The rigid seating minimizes run-out, helping achieve clean thread profiles and repeatable results across multiple parts. Its durable construction reduces downtime and replacement costs, making it a dependable choice for CNC machinists and engineers tackling tough internal threading jobs.

Insert Size & Shape XD15M5
Depth of Cut Maximum (APMX) 14
Cutting Item Count (CICT) 1
Connection Diameter (DCONMS) 20
Adaptive Interface Machine Direction Cylindrical Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 20
Torque (TQ) 3
Functional Length (LF) 150
Usable Length (LU) 60
Axial Rake Angel (GAMP) 9
Rdial Rake Angle (GAMF) -10
