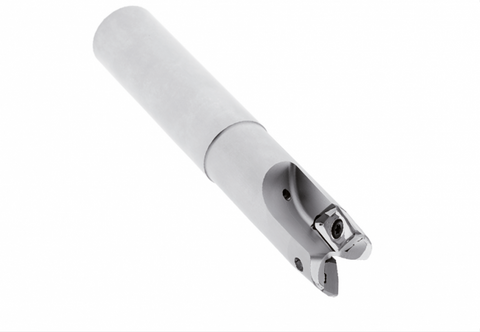

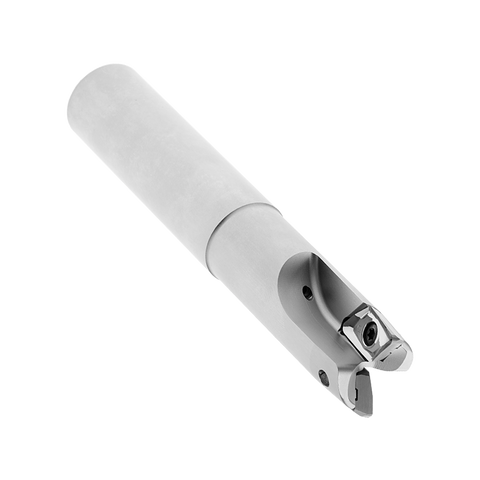

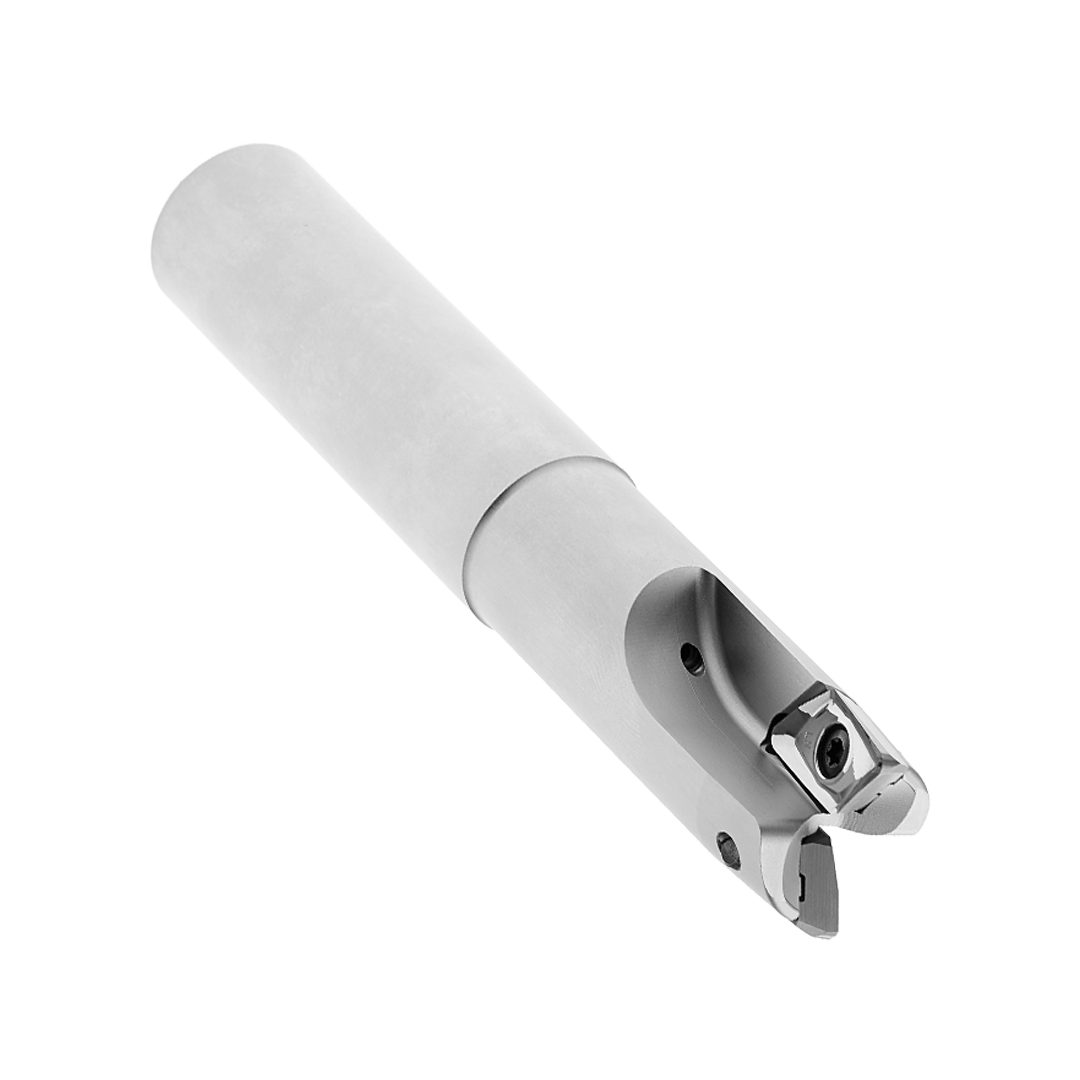

Palbit Cylindrical Shank Holder - For XD15M5 Inserts - 25mm Cutter Diameter - 181095100

Palbit Cylindrical Shank Holder - For XD15M5 Inserts - 25mm Cutter Diameter - 181095100

SKU:PAL-181095100
The Palbit Cylindrical Shank Holder is a precision tool holder designed for XD15M5 inserts, optimized for internal threading tasks. With a 25 mm cutter diameter, it delivers stable, accurate threa... Read more ↓
Specification
Insert Size & ShapeXD15M5
Depth of Cut Maximum (APMX)14
Cutting Item Count (CICT)2
Connection Diameter (DCONMS)25
Adaptive Interface Machine DirectionCylindrical Shank
Tool Cutting Edge Angle (KAPR)90
View all specifications ↓
£260.60
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit Cylindrical Shank Holder is a precision tool holder designed for XD15M5 inserts, optimized for internal threading tasks. With a 25 mm cutter diameter, it delivers stable, accurate threading in demanding CNC environments.

  • Part Number: 181095100
  • XD15M5 Insert Compatibility: Specifically designed to fit XD15M5 inserts for secure seating and consistent thread quality.
  • Diameter: 25 mm cutter diameter for balanced rigidity and clean thread profiles.
  • Shank Type: Cylindrical shank interface for straightforward mounting and repeatable alignment.
  • Secure Insert Fitment: Precise clamping interface minimizes movement during cutting.
  • Internal Threading Applications: Optimized for internal threading tasks to improve throughput and accuracy.
  • Chip Control and Durability: Designed to aid chip evacuation and withstand demanding machining cycles for longer tool life.

This Palbit holder helps CNC machinists unlock higher threading precision, improved tool life, and steadier production throughput in demanding environments. The combination of XD15M5 compatibility, cylindrical shank rigidity, and optimized fitment supports consistent, repeatable threads from setup to finish.

Insert Size & Shape XD15M5
Depth of Cut Maximum (APMX) 14
Cutting Item Count (CICT) 2
Connection Diameter (DCONMS) 25
Adaptive Interface Machine Direction Cylindrical Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 25
Torque (TQ) 3
Functional Length (LF) 180
Usable Length (LU) 90
Axial Rake Angel (GAMP) 6
Rdial Rake Angle (GAMF) -14

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: ALUPRO 76090 - Cylindrical Shank

View full collection →

You are viewing PAL-181095100. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181095700 XD15M5Shouldering CuttersCylindrical Shank40250£378.79 5 days
PAL-181095300 XD15M5Shouldering CuttersCylindrical Shank40250£378.79 5 days
PAL-181095200 XD15M5Shouldering CuttersCylindrical Shank32200£284.09 5 days
PAL-181095500 XD15M5Shouldering CuttersCylindrical Shank25180£260.60 5 days
PAL-181095400 XD15M5Shouldering CuttersCylindrical Shank20150£237.08 5 days
PAL-181095100 ViewingXD15M5Shouldering CuttersCylindrical Shank25180£260.60 5 days
PAL-181095000 XD15M5Shouldering CuttersCylindrical Shank20150£237.08 5 days
