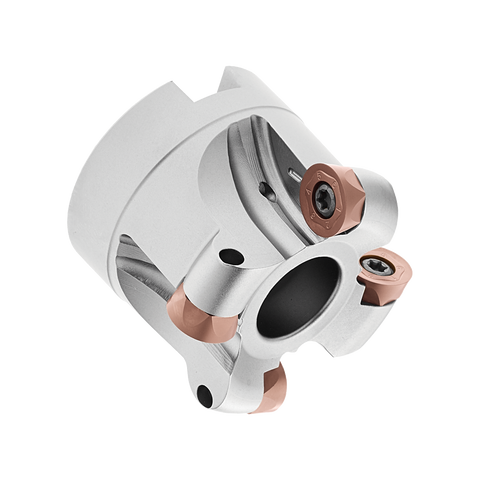

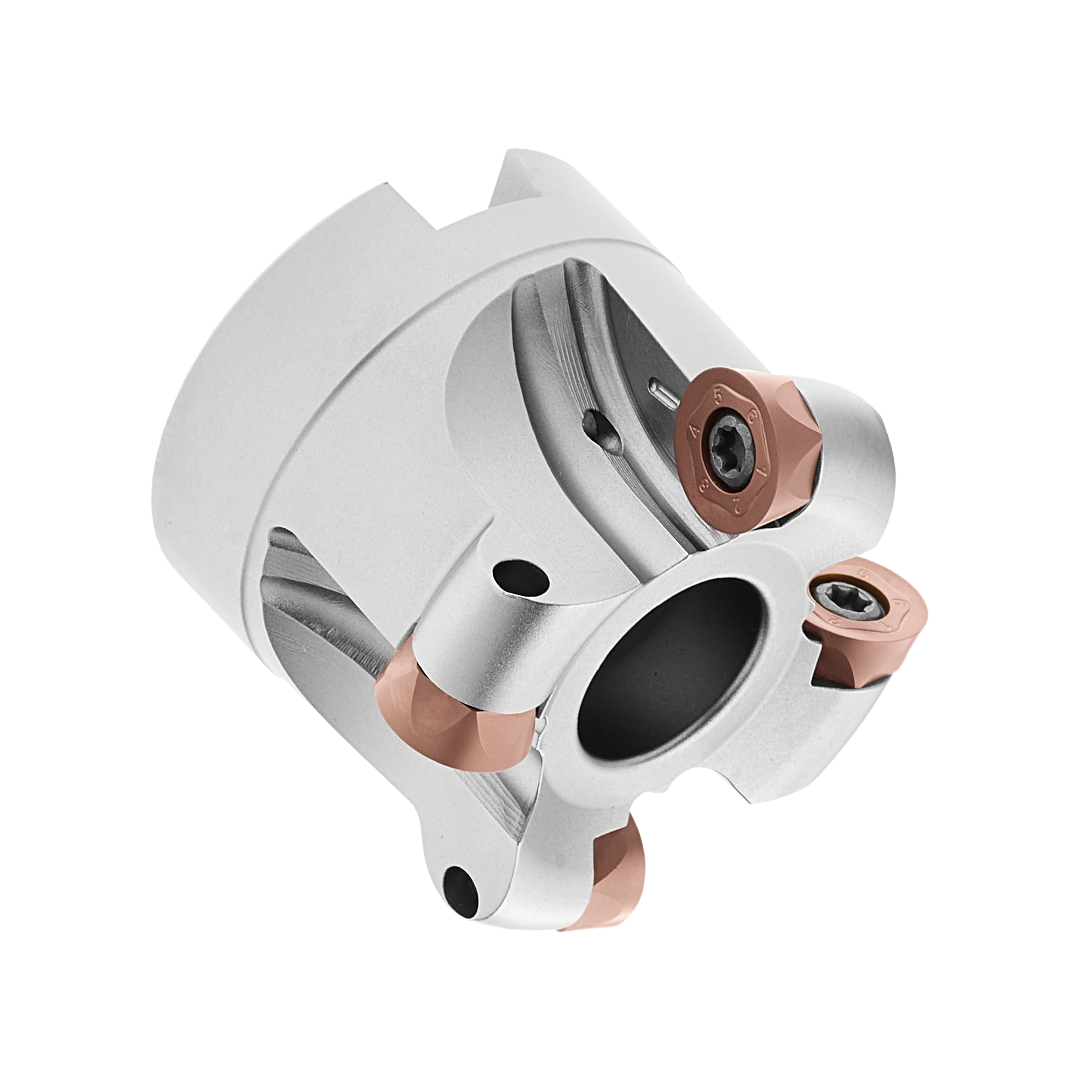

Palbit Arbor Mounting Holder - For RP1204 Inserts - 28mm Cutter Diameter - 181098700
| Insert Size & Shape | RP1204 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 36 |
Learn more about Klarna
Palbit Arbor Mounting Holder for RP1204 inserts is designed to deliver secure insert seating and rigid support for precision grooving and parting on CNC machines. It’s built for engineers and machinists who aim for consistent tool life and superior surface finishes in demanding production environments.
- Compatibility: RP1204 inserts
- Cutter Diameter: 28 mm
- Insert Retention: Secure insert retention
- Rigidity: Excellent rigidity for stable cutting
- Application: Optimized for grooving and parting operations
- Part Number: 181098700
This holder delivers dependable cutting performance by securely clamping RP1204 inserts, minimizing deflection and vibration, and providing a consistent seating depth. The result is repeatable part finishes, longer tool life in high-production environments, and smoother transitions between passes in demanding machining tasks.
| Insert Size & Shape | RP1204 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 36 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 28 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 40 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 33790 - Arbor Mounting
View full collection →You are viewing PAL-181098700. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181122100 | RP1204 | Profile Cutters | Arbor Mounting | 51 | 40 | £292.35 | 5 days | |
| PAL-181124200 | RP1204 | Profile Cutters | Arbor Mounting | 40 | 40 | £267.44 | 5 days | |
| PAL-181111500 | RP1204 | Profile Cutters | Arbor Mounting | 38 | 40 | £225.51 | 5 days | |
| PAL-181098700 Viewing | RP1204 | Profile Cutters | Arbor Mounting | 28 | 40 | £196.92 | 5 days |
