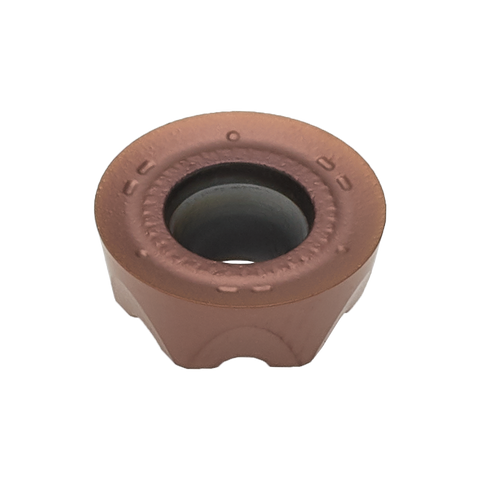

Palbit Indexable Milling Insert - for Profile Milling - RPHT 1204 M0E-LS4 PHH530
| ISO Code | RPHT 1204 M0E-LS4 PHH530 |
| Insert Size and Shape | RP1204 |
| Product Line | TURBOMILL 34290 |
| Grade | PHH530 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 4 |
Learn more about Klarna
The Palbit RPHT indexable milling insert is designed for high-precision profile milling, excelling at complex contours and intricate 3D surfaces. Built with robust carbide and an optimized cutting geometry, it delivers smooth cutting action, excellent surface finishes, and long-lasting durability.
- Indexable design: Interchangeable insert for quick changes and reduced downtime.
- Profile milling focus: Engineered to tackle complex contours and intricate 3D surfaces with high precision.
- Cutting geometry: Advanced geometry tuned for smooth cutting action and stable chip evacuation.
- Material: Robust carbide construction provides wear resistance and long tool life.
- Finish performance: Delivers excellent surface finishes on challenging profiles.
With the Palbit RPHT insert, you can achieve tight tolerances on difficult geometries while reducing finishing passes. The carbide body resists wear under demanding milling conditions, preserving accuracy over long runs. Its interchangeable design minimizes downtime, enabling quick insert swaps and keeping production on schedule with consistent part quality across applications.
| ISO Code | RPHT 1204 M0E-LS4 PHH530 |
| Insert Size and Shape | RP1204 |
| Product Line | TURBOMILL 34290 |
| Grade | PHH530 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | Profile Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | R |
| Inscribed Circle Diameter (IC) | 12 |
| Insert Thickness (S) | 4.76 |
| Corner Radius (RE) | 6 |
| Fixing Hole Diameter (D1) | 4.4 |
| Chip Breaker (CBMD) | S4 |
