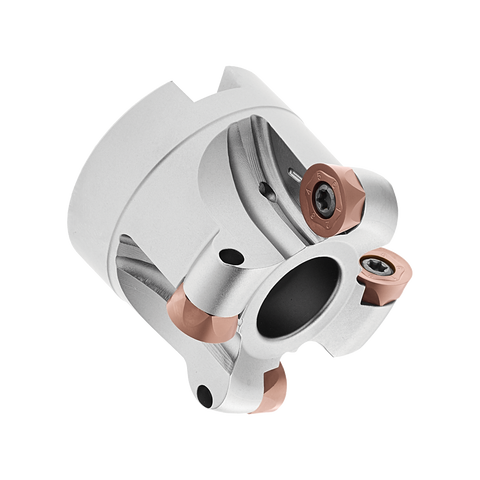

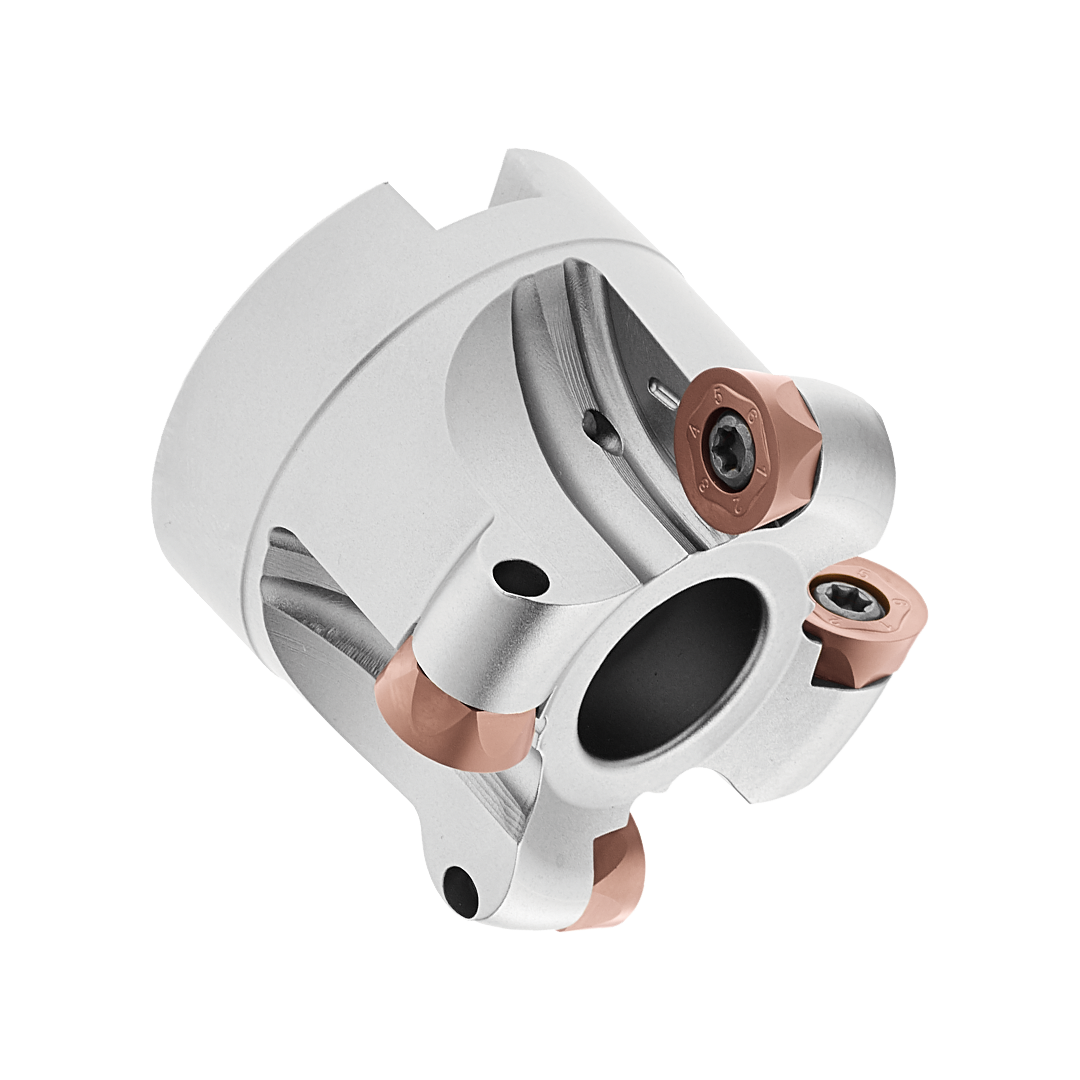

Palbit Arbor Mounting Holder - For RP1204 Inserts - 51mm Cutter Diameter - 181122100
| Insert Size & Shape | RP1204 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
Learn more about Klarna
Engineered for precision CNC grooving and parting, the Palbit Arbor Mounting Holder secures RP1204 inserts with unwavering stability. Designed for engineers and machinists seeking consistent tool life and superior surface finish in demanding production environments, this holder delivers reliable performance at a 51 mm cutter diameter.
- Inserts compatibility: Compatible with RP1204 inserts to streamline tool setup and replacement.
- Cutter diameter: 51 mm cutting diameter aligns with RP1204 geometry for precise slotting and grooving.
- Insert retention: Secure retention mechanism minimizes insert movement under load, improving surface finishes and tolerances.
- Rigidity: Optimized clamping and balance for high rigidity during high-speed machining.
- Part number: 181122100
With this holder, you achieve consistent tool life and reliable cutting performance through secure insert seating and reduced vibration. The design supports smoother grooving and cleaner parting surfaces, delivering tighter tolerances and improved surface finish in demanding production runs. A straightforward setup and dependable construction help minimize downtime in high‑volume shops.
| Insert Size & Shape | RP1204 |
| Depth of Cut Maximum (APMX) | 6 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 51 |
| Torque (TQ) | 3 |
| Maximum Cutting Diameter (DCX) | 63 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 33790 - Arbor Mounting
View full collection →You are viewing PAL-181122100. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181122100 Viewing | RP1204 | Profile Cutters | Arbor Mounting | 51 | 40 | £292.35 | 5 days | |
| PAL-181124200 | RP1204 | Profile Cutters | Arbor Mounting | 40 | 40 | £267.44 | 5 days | |
| PAL-181111500 | RP1204 | Profile Cutters | Arbor Mounting | 38 | 40 | £225.51 | 5 days | |
| PAL-181098700 | RP1204 | Profile Cutters | Arbor Mounting | 28 | 40 | £196.92 | 5 days |
