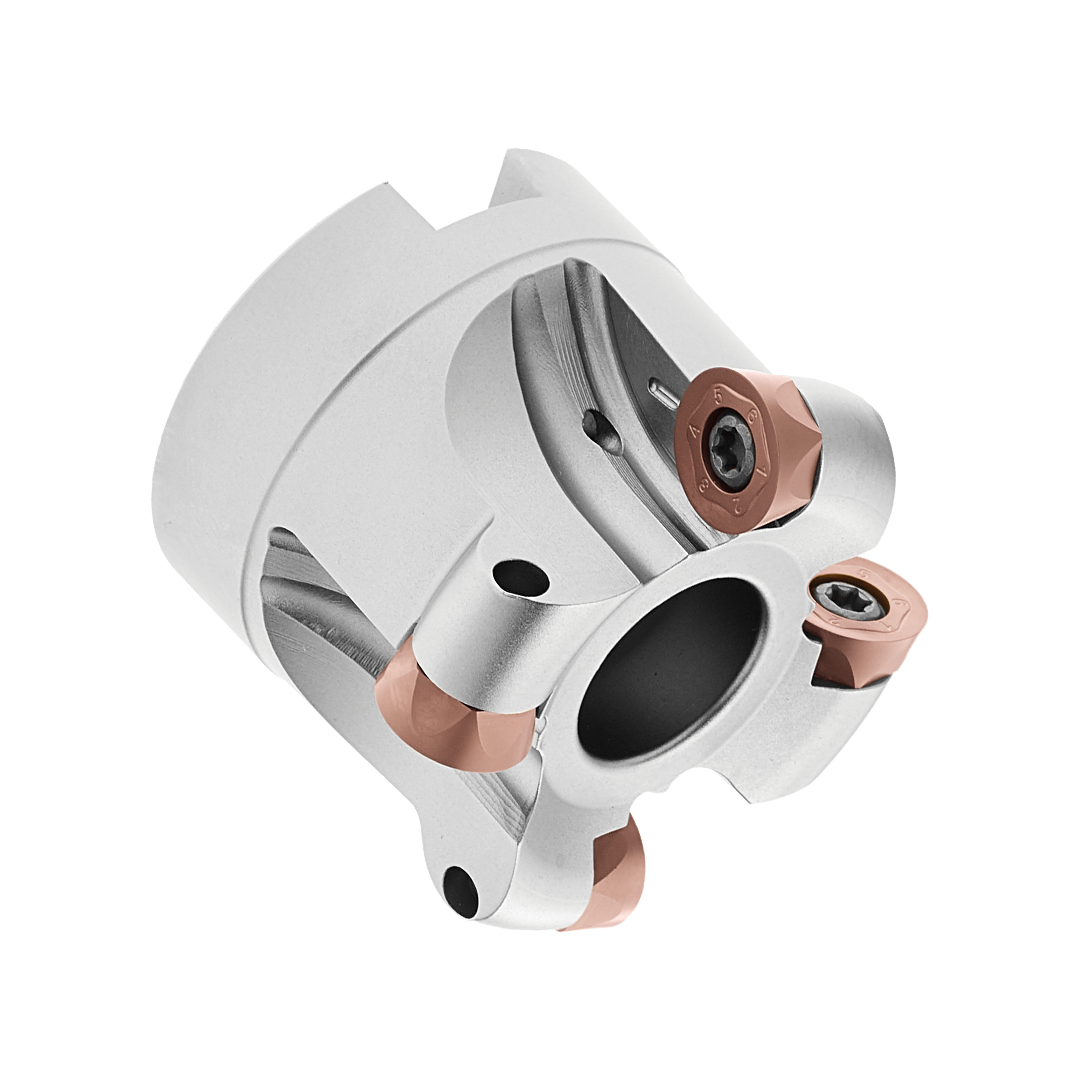

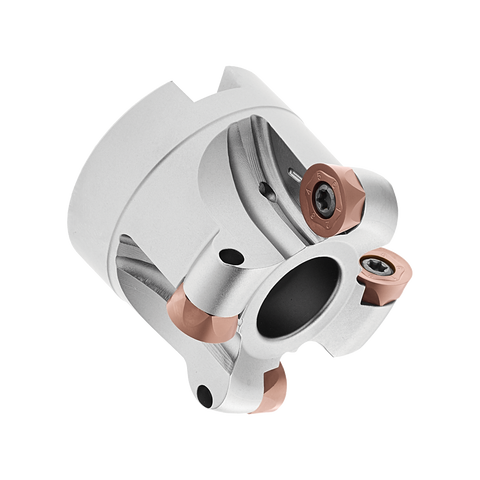

Palbit Arbor Mounting Holder - For RP1204 Inserts - 40mm Cutter Diameter - 181124200
Palbit Vendor Logo

Palbit Arbor Mounting Holder - For RP1204 Inserts - 40mm Cutter Diameter - 181124200

PAL-181124200

Availability: 5 days Estimated lead time, subject to availability
Klarna Payment
Pay with Klarna – split your purchase into 3 interest-free instalments.
No extra cost if paid on time. 18+ only.
Learn more about Klarna

Optimise your grooving and parting operations with Palbit Arbor Mounting Holders designed for RP1204 inserts. These holders provide secure insert retention, excellent rigidity, and reliable cutt... Read more

View Other Sizes Suitable Inserts Suitable Spare Parts
Specification Value
Insert Size & Shape RP1204
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 5
Connection Diameter (DCONMS) 22
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 42
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 40
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 52
Functional Length (LF) 40
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -4

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Optimise your grooving and parting operations with Palbit Arbor Mounting Holders designed for RP1204 inserts. These holders provide secure insert retention, excellent rigidity, and reliable cutting performance for precision CNC machining. Ideal for engineers and machinists focused on consistent tool life and superior surface finish in demanding production environments.
