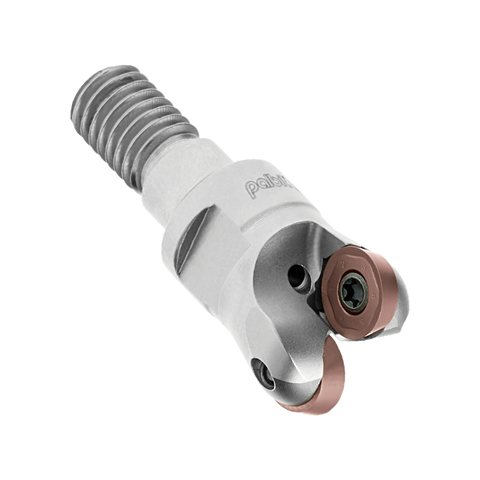

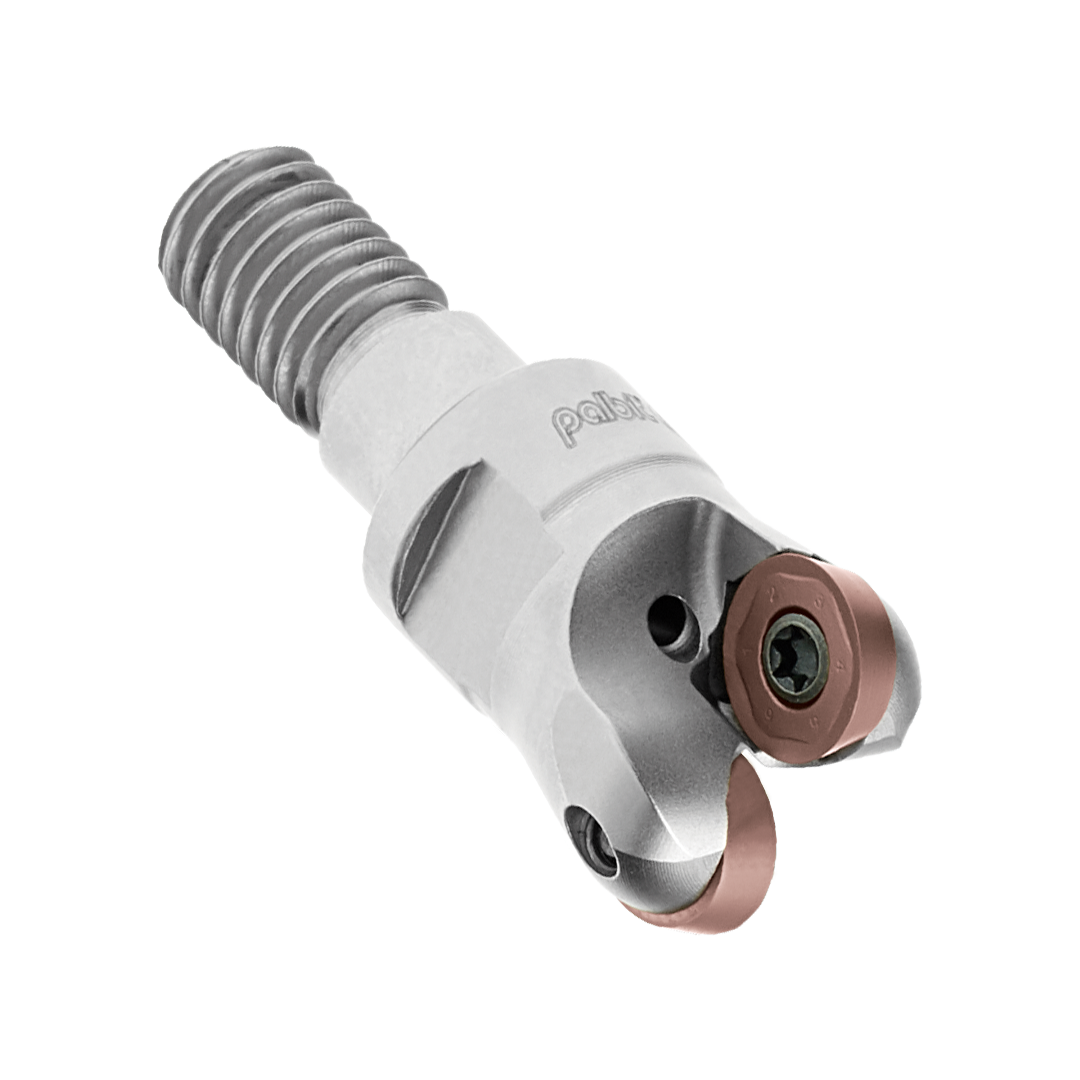

Palbit Threaded Coupling Holder - For RP10T3 Inserts - 22mm Cutter Diameter - 181110800
| Insert Size & Shape | RP10T3 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Threaded Coupling Holder for RP10T3 inserts delivers precise internal threading with secure clamping and high rigidity. Designed for demanding CNC threading applications, it maintains accurate thread cutting at a 22 mm cutter diameter.
- Compatibility: For RP10T3 inserts
- Cutter Diameter: 22 mm
- Clamping: Secure coupling holder with robust, precise clamping
- Rigidity: Excellent rigidity to maintain stable cutting conditions
- Chip Control: Enhanced chip control for cleaner, more consistent cuts
- Tool Life: Extended tool life through stable performance in production
This holder minimizes deflection and supports repeatable thread accuracy, helping reduce scrap and cycle times in production environments. The combination of secure clamping, rigid construction, and optimized chip evacuation delivers reliable, consistent threading results when using RP10T3 inserts at a 22 mm cutter diameter.
| Insert Size & Shape | RP10T3 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 4 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 22 |
| Torque (TQ) | 1.4 |
| Maximum Cutting Diameter (DCX) | 32 |
| Functional Length (LF) | 35 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TOROMILL 33690 - Threaded Coupling
View full collection →You are viewing PAL-181110800. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181120700 | RP10T3 | Profile Cutters | Threaded Coupling | 25 | 45 | £234.43 | 5 days | |
| PAL-181110800 Viewing | RP10T3 | Profile Cutters | Threaded Coupling | 22 | 35 | £237.08 | 5 days | |
| PAL-181110700 | RP10T3 | Profile Cutters | Threaded Coupling | 15 | 35 | £201.06 | 5 days |
