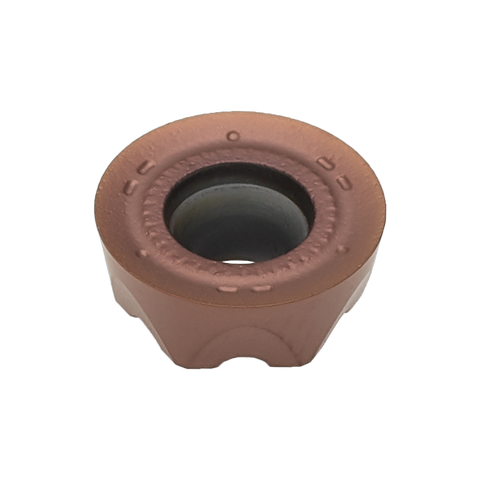

Palbit Indexable Milling Insert - for Profile Milling - RPHT 10T3M0E-LS PHH808
| ISO Code | RPHT 10T3M0E-LS PHH808 |
| Insert Size and Shape | RP10T3 |
| Product Line | TURBOMILL 34190 |
| Grade | PHH808 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 6 |
Learn more about Klarna
Palbit RPHT indexable milling insert is engineered for high-precision profile milling, tackling complex contours and intricate 3D surfaces with reliability. Its robust carbide construction and optimized cutting geometry deliver smooth cutting action and durable performance across demanding milling jobs.
- Type: Indexable milling insert designed for profile milling
- Material: Carbide construction for wear resistance and long tool life
- Cutting geometry: Advanced geometry that promotes smooth cutting action, stable chip flow, and clean edge finishes
- Part/Code: RPHT 10T3M0E-LS PHH808
- Application: Optimized for machining complex contours and intricate 3D surfaces
This insert helps you achieve precise contour replication with tighter tolerances and superior surface finishes on challenging parts. The carbide body resists wear at high cutting speeds, extending tool life and reducing downtime, while the refined geometry minimizes chatter to maintain dimensional accuracy throughout the milling process.
| ISO Code | RPHT 10T3M0E-LS PHH808 |
| Insert Size and Shape | RP10T3 |
| Product Line | TURBOMILL 34190 |
| Grade | PHH808 |
| Hand | Neutral |
| Cutting Edge Count (CEDC) | 6 |
| Operation Type (CTPT) | Profile Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | R |
| Inscribed Circle Diameter (IC) | 10 |
| Insert Thickness (S) | 3.97 |
| Corner Radius (RE) | 5 |
| Fixing Hole Diameter (D1) | 3.4 |
| Chip Breaker (CBMD) | LS |
