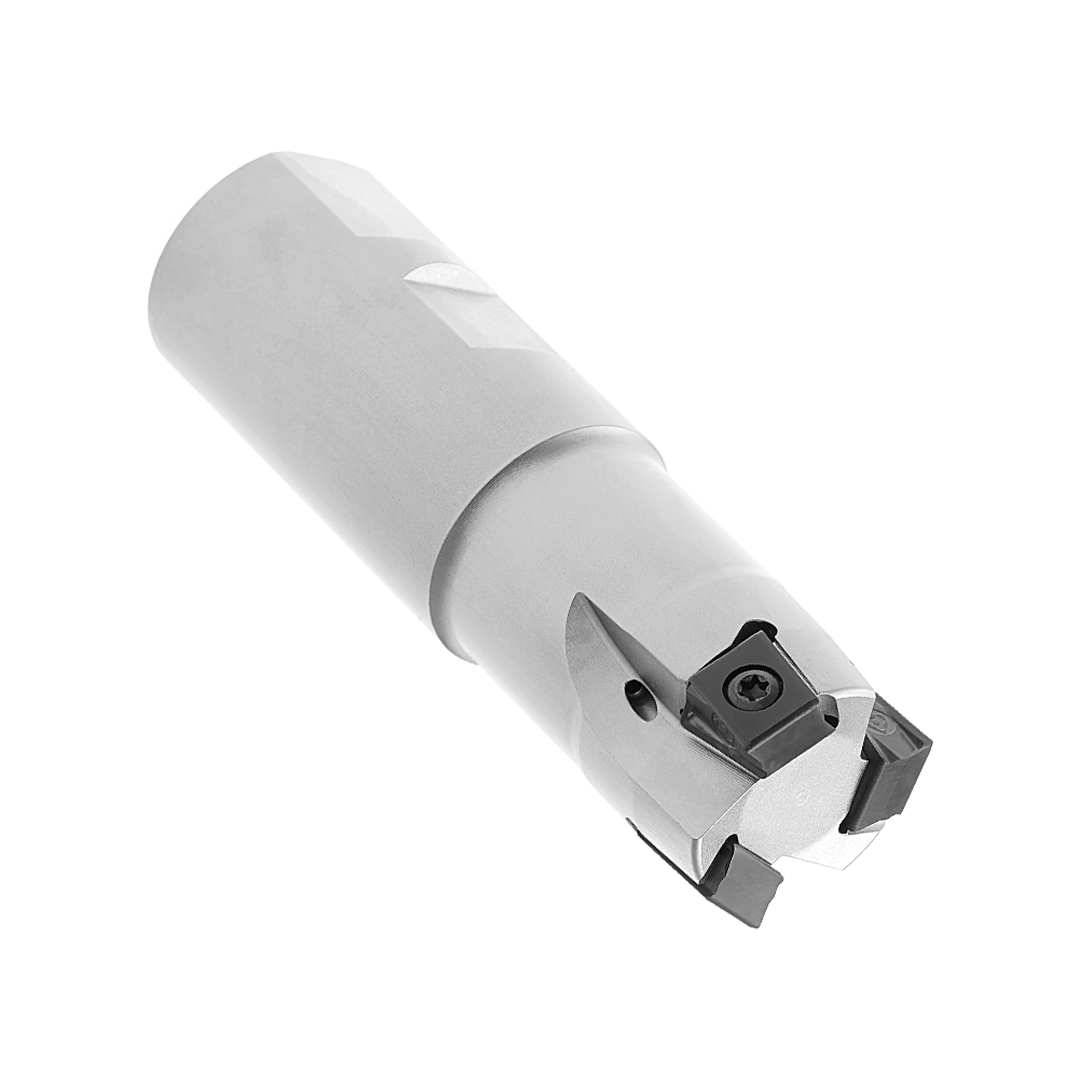

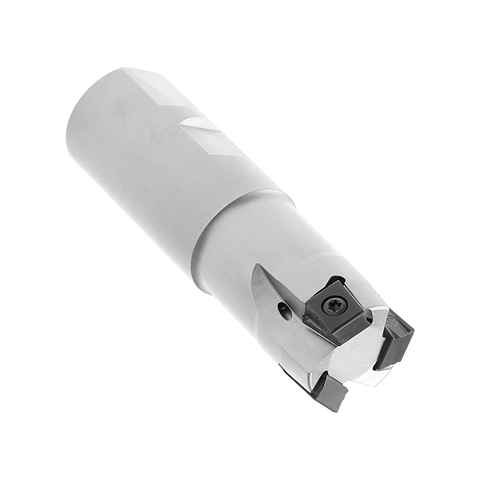

Palbit Weldon Shank Holder - For LN1306 Inserts - 40mm Cutter Diameter - 181118400
| Insert Size & Shape | LN1306 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Engineered for precise grooving and parting, the Palbit Weldon Shank Holder for LN1306 inserts delivers exceptional rigidity and secure insert clamping in a compact Weldon-shank design. Designed for demanding CNC environments, it helps you achieve consistent cuts and superior surface finishes.
- 40 mm Cutter Diameter: Precisely sized cutting diameter for reliable grooving and parting performance.
- LN1306 Insert Compatibility: Specifically engineered to hold LN1306 inserts with Weldon shank for secure seating.
- Model: 181118400
- Outstanding Rigidity: Stiff holder design minimizes deflection during heavy cuts for consistent outcomes.
- Secure Insert Clamping: Robust clamping mechanism keeps inserts firmly in place, preserving accuracy.
- Vibration Reduction: Optimized geometry reduces chatter, contributing to better surface finishes and tool life.
- Production-Grade Reliability: Built to deliver repeatable performance in high-demand production environments.
By combining precise seating with firm clamping, this holder minimizes runout and vibration, enabling accurate depth control and smoother finishes. Its rugged construction supports longer tool life and reduced downtime in high-output CNC operations, making it a dependable choice for grooving and parting tasks.
| Insert Size & Shape | LN1306 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 110 |
| Usable Length (LU) | 50 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -18 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TGPLUS 90190 - Weldon Shank
View full collection →You are viewing PAL-181118400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181118400 Viewing | LN1306 | Shouldering Cutters | Weldon Shank | 40 | 110 | £265.77 | 5 days | |
| PAL-181109800 | LN1306 | Shouldering Cutters | Weldon Shank | 32 | 110 | £208.73 | 5 days | |
| PAL-181118300 | LN1306 | Shouldering Cutters | Weldon Shank | 25 | 95 | £174.22 | 5 days |
