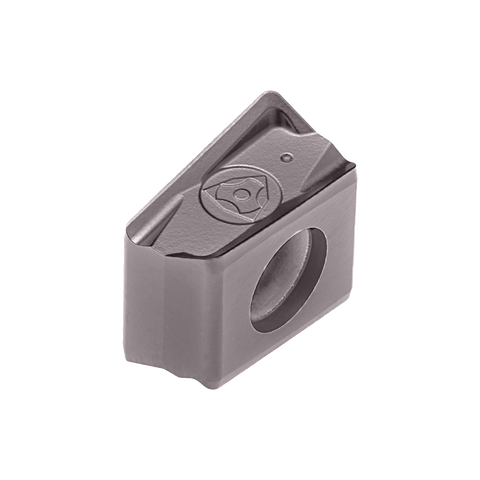

Palbit Indexable Milling Insert - for Shoulder Milling - LNXT 130604 PNER-MP PH5320
Palbit Vendor Logo

Palbit Indexable Milling Insert - for Shoulder Milling - LNXT 130604 PNER-MP PH5320

PAL-1112242L6

Availability: 5 days Estimated lead time, subject to availability

The Palbit LNXT indexable milling insert is crafted for precise shoulder milling operations, offering exceptional edge stability and smooth surface finishes. Built with durable carbide and optim... Read more

Specification Value
ISO Code LNXT 130604 PNER-MP PH5320
Insert Size and Shape LN1306
Product Line TGPLUS 90190
Grade PH5320
Hand Right
Cutting Edge Count (CEDC) 4
Operation Type (CTPT) Shoulder Milling
Tolerance Class Insert (TCINS) X
Insert Shape Code (SC) L
Insert Thickness (S) 6.8
Corner Radius (RE) 0.4
Insert Length (INSL) 13
Fixing Hole Diameter (D1) 4.45
Chip Breaker (CBMD) MP
Wiper Edge Length (BS) 0.9
Cast Iron

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

The Palbit LNXT indexable milling insert is crafted for precise shoulder milling operations, offering exceptional edge stability and smooth surface finishes. Built with durable carbide and optimized cutting geometry, it excels in producing clean 90° shoulders even under demanding machining conditions.
