Palbit Arbor Mounting Holder - For LN0904 Inserts - 40mm Cutter Diameter - 181144400
| Insert Size & Shape | LN0904 |
| Depth of Cut Maximum (APMX) | 7 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 36 |
Learn more about Klarna

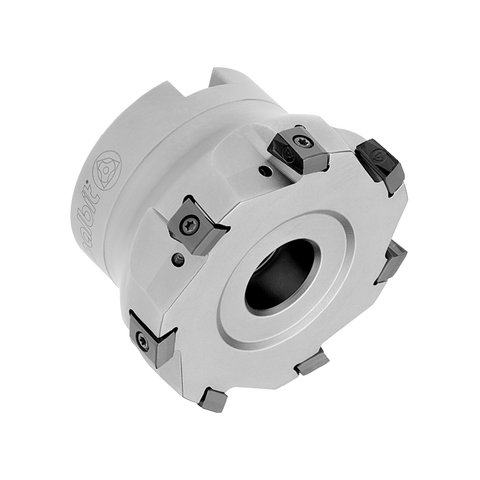

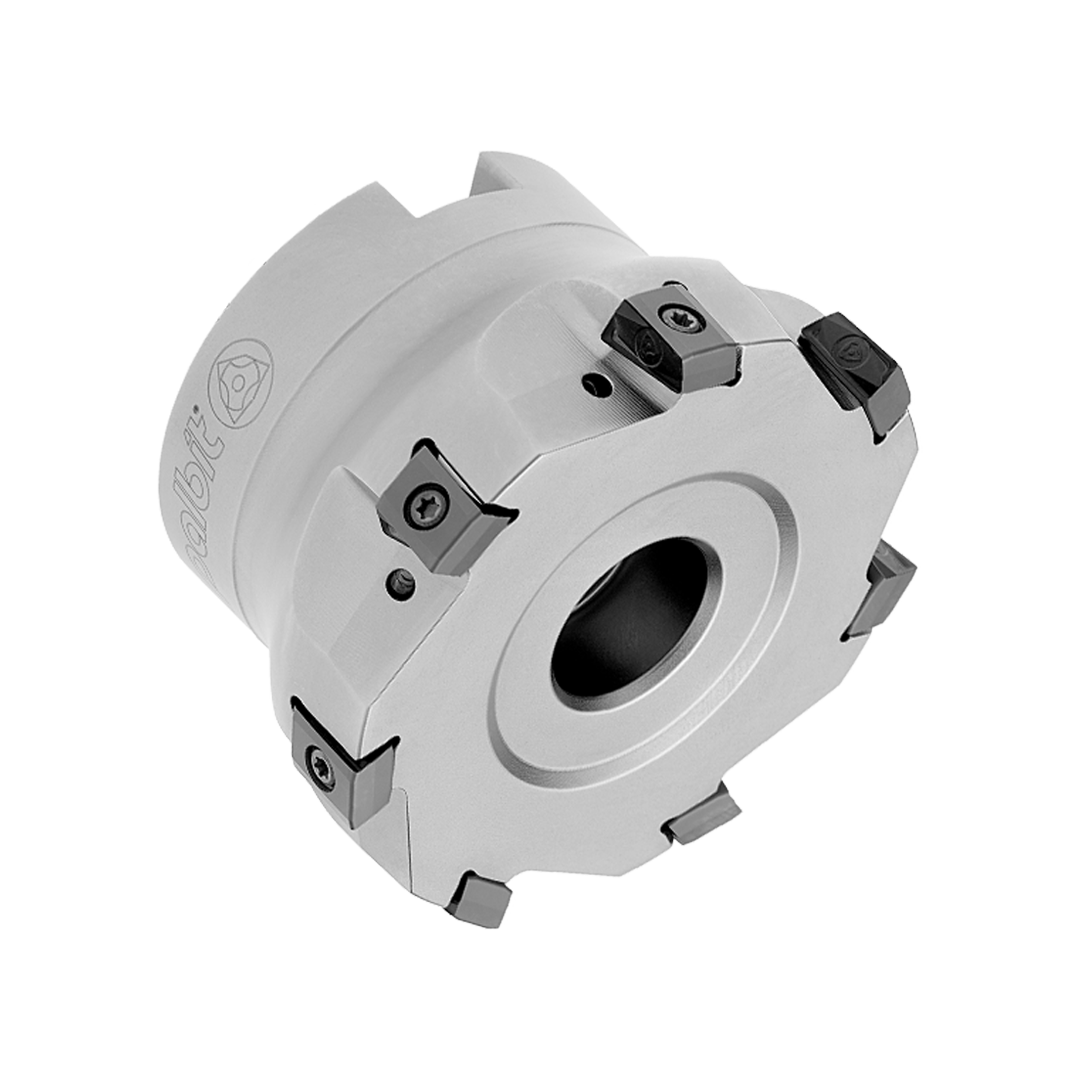

The Palbit Arbor Mounting Holder is a precision tool accessory engineered for LN0904 inserts, optimized for a 40 mm cutter diameter. It delivers secure insert clamping, high rigidity, and reliable performance in demanding CNC turning and grooving tasks.
- Compatibility: Designed specifically for LN0904 inserts.
- cutter diameter support: Optimized for 40 mm cutter diameter.
- Secure clamping: Ensures stable insert retention during high-precision operations.
- Rigidity: High rigidity for consistent, predictable machining results.
- Application: Ideal for turning and grooving in tight-tolerance environments.
This holder helps engineers and machinists achieve superior surface finishes and extend tool life in demanding CNC applications.
| Insert Size & Shape | LN0904 |
| Depth of Cut Maximum (APMX) | 7 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 36 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | -4 |
| Rdial Rake Angle (GAMF) | -18 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TGPLUS 90090 - Arbor Mounting
View full collection →You are viewing PAL-181144400. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181146600 | LN0904 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £406.20 | 5 days | |
| PAL-181144600 | LN0904 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £314.29 | 5 days | |
| PAL-181144500 | LN0904 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £241.01 | 5 days | |
| PAL-181144400 Viewing | LN0904 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £205.05 | 5 days |
