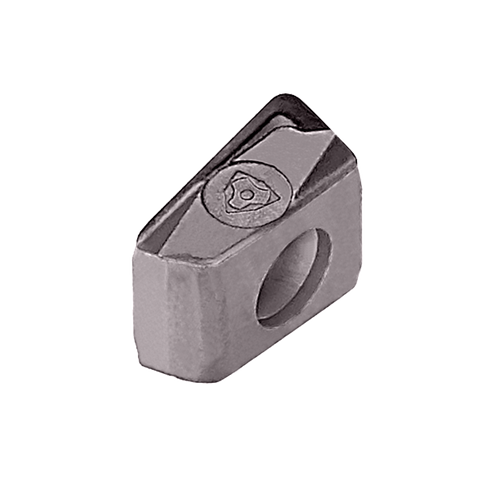

Palbit Indexable Milling Insert - for Shoulder Milling - LNXT 090408 PNER-MP PHS740
SKU:PAL-1112226T9
The Palbit LNXT indexable milling insert is engineered for precise shoulder milling, delivering exceptional edge stability and smooth surface finishes in demanding conditions. Built with durable c...
Read more ↓
Material Compatibility
P
Specification
View all specifications ↓
| ISO Code | LNXT 090408 PNER-MP PHS740 |
| Insert Size and Shape | LN0904 |
| Product Line | TGPLUS 90090 |
| Grade | PHS740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
£15.12
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit LNXT indexable milling insert is engineered for precise shoulder milling, delivering exceptional edge stability and smooth surface finishes in demanding conditions. Built with durable carbide and an optimized cutting geometry, it excels at producing clean 90° shoulders with consistent quality.
- Application: Designed for shoulder milling to achieve precise 90° shoulders.
- Material: Durable carbide insert for long tool life and reliable performance.
- Cutting geometry: Optimized geometry for clean edges and smooth surface finishes.
- Edge stability: Exceptional edge stability that maintains performance under heavy cutting and vibration.
- Indexable design: LNXT indexing enables quick insert changes to minimize downtime.
- Part number: LNXT 090408 PNER-MP PHS740 for easy identification.
This insert helps operators achieve repeatable shoulder dimensions with minimal finishing passes, reducing rework and boosting productivity. The carbide construction resists wear in challenging materials, while the optimized geometry delivers efficient cutting, stable chip evacuation, and consistent surface quality across production runs.
| ISO Code | LNXT 090408 PNER-MP PHS740 |
| Insert Size and Shape | LN0904 |
| Product Line | TGPLUS 90090 |
| Grade | PHS740 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | X |
| Insert Shape Code (SC) | L |
| Insert Thickness (S) | 4.5 |
| Corner Radius (RE) | 0.8 |
| Insert Length (INSL) | 9 |
| Fixing Hole Diameter (D1) | 2.7 |
| Chip Breaker (CBMD) | MP |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Palbit LNXT Inserts
View full collection →You are viewing PAL-1112226T9. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-1111590L5 | LNXT 150612 PNER-MP PH5705 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111590L9 | LNXT 150612 PNER-MP PH5740 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111313L5 | LNXT 150608 PNER-MP PH5705 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111313G6 | LNXT 150608 PNER-MP PH7740 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111591G4 | LNXT 150608 PNSR-HP PH7920 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111590G6 | LNXT 150612 PNER-MP PH7740 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111313L9 | LNXT 150608 PNER-MP PH5740 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111591G6 | LNXT 150608 PNSR-HP PH7740 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111313G1 | LNXT 150608 PNER-MP PH7910 | LN1506 | TGPLUS 90390 | L | 6.35 | £16.17 | 5 days | |
| PAL-1111524L5 | LNXT 150608 PNER-W PH5705 | LN1506 | TGPLUS 90390 | L | 6.35 | £20.51 | 5 days | |
| PAL-1111524G1 | LNXT 150608 PNER-W PH7910 | LN1506 | TGPLUS 90390 | L | 6.35 | £20.51 | 5 days | |
| PAL-1111313T9 | LNXT 150608 PNER-MP PHS740 | LN1506 | TGPLUS 90390 | L | 6.35 | £17.27 | 5 days | |
| PAL-1111590T1 | LNXT 150612 PNER-MP PHP920 | LN1506 | TGPLUS 90390 | L | 6.35 | £17.27 | 5 days | |
| PAL-1111313T1 | LNXT 150608 PNER-MP PHP920 | LN1506 | TGPLUS 90390 | L | 6.35 | £17.27 | 5 days | |
| PAL-1112243T9 | LNXT 130608 PNER-MP PHS740 | LN1306 | TGPLUS 90190 | L | 6.8 | £16.38 | 5 days | |
| PAL-1112242T9 | LNXT 130604 PNER-MP PHS740 | LN1306 | TGPLUS 90190 | L | 6.8 | £16.38 | 5 days | |
| PAL-1112243L6 | LNXT 130608 PNER-MP PH5320 | LN1306 | TGPLUS 90190 | L | 6.8 | £15.31 | 5 days | |
| PAL-1112242L6 | LNXT 130604 PNER-MP PH5320 | LN1306 | TGPLUS 90190 | L | 6.8 | £15.31 | 5 days | |
| PAL-1112242G6 | LNXT 130604 PNER-MP PH7740 | LN1306 | TGPLUS 90190 | L | 6.8 | £15.31 | 5 days | |
| PAL-1112243G6 | LNXT 130608 PNER-MP PH7740 | LN1306 | TGPLUS 90190 | L | 6.8 | £15.31 | 5 days | |
| PAL-1112243T1 | LNXT 130608 PNER-MP PHP920 | LN1306 | TGPLUS 90190 | L | 6.8 | £16.38 | 5 days | |
| PAL-1112839T1 | LNXT 130604 PNEL-MP PHP920 | LN1306 | TGPLUS 90190 | L | 6.8 | £16.38 | 5 days | |
| PAL-1112860T1 | LNXT 130608 PNEL-MP PHP920 | LN1306 | TGPLUS 90190 | L | 6.8 | £16.38 | 5 days | |
| PAL-1112242T1 | LNXT 130604 PNER-MP PHP920 | LN1306 | TGPLUS 90190 | L | 6.8 | £16.38 | 5 days | |
| PAL-1112226T9 Viewing | LNXT 090408 PNER-MP PHS740 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days | |
| PAL-1112225T9 | LNXT 090404 PNER-MP PHS740 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days | |
| PAL-1112226L6 | LNXT 090408 PNER-MP PH5320 | LN0904 | TGPLUS 90090 | L | 4.5 | £13.80 | 5 days | |
| PAL-1112226G6 | LNXT 090408 PNER-MP PH7740 | LN0904 | TGPLUS 90090 | L | 4.5 | £13.80 | 5 days | |
| PAL-1112225G6 | LNXT 090404 PNER-MP PH7740 | LN0904 | TGPLUS 90090 | L | 4.5 | £13.80 | 5 days | |
| PAL-1112225L6 | LNXT 090404 PNER-MP PH5320 | LN0904 | TGPLUS 90090 | L | 4.5 | £13.80 | 5 days | |
| PAL-1112226T1 | LNXT 090408 PNER-MP PHP920 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days | |
| PAL-1112225T1 | LNXT 090404 PNER-MP PHP920 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days | |
| PAL-1112868X9 | LNXT 090404 PNER-LS PHH930 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days | |
| PAL-1112862T1 | LNXT 090408 PNEL-MP PHP920 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days | |
| PAL-1112861T1 | LNXT 090404 PNEL-MP PHP920 | LN0904 | TGPLUS 90090 | L | 4.5 | £15.12 | 5 days |
