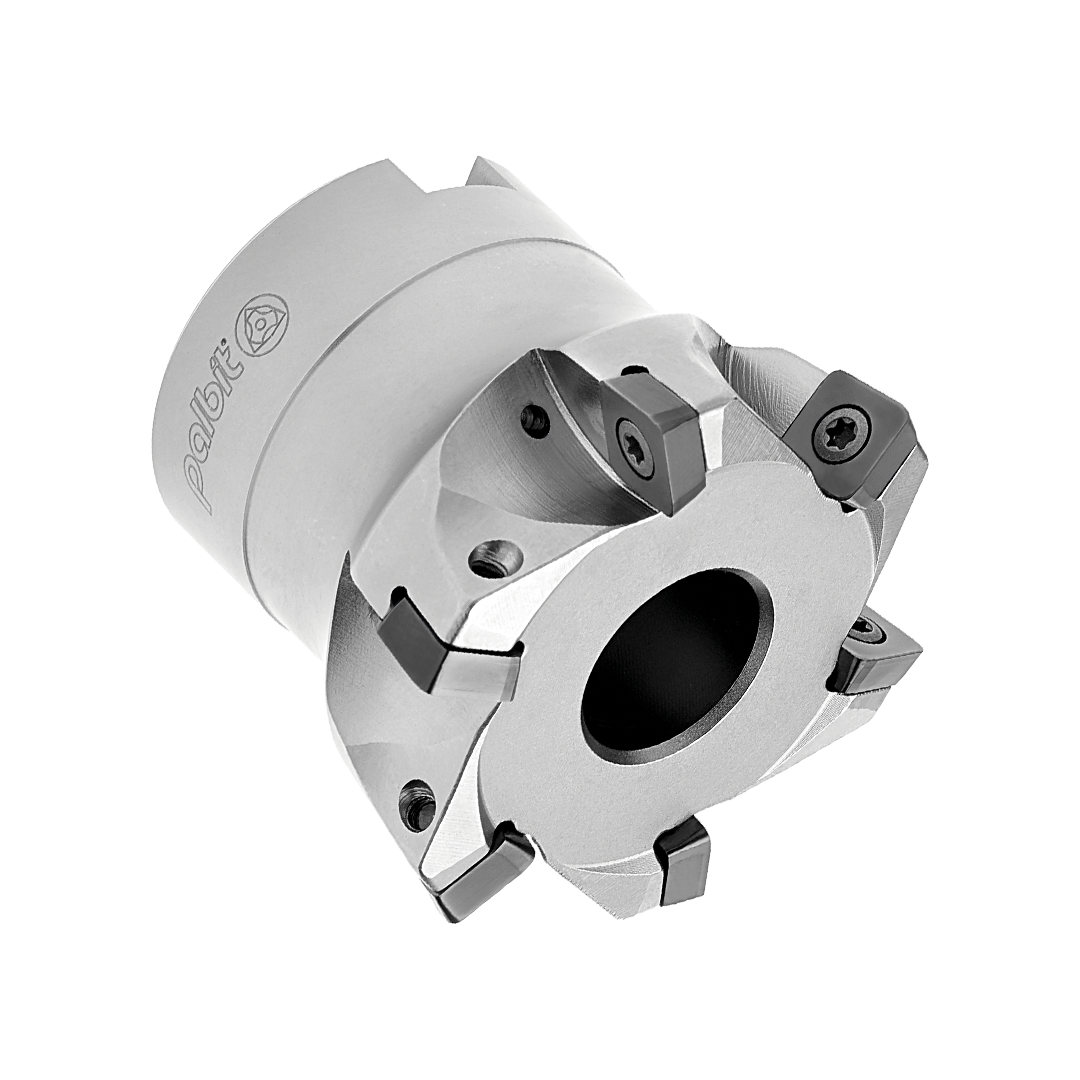

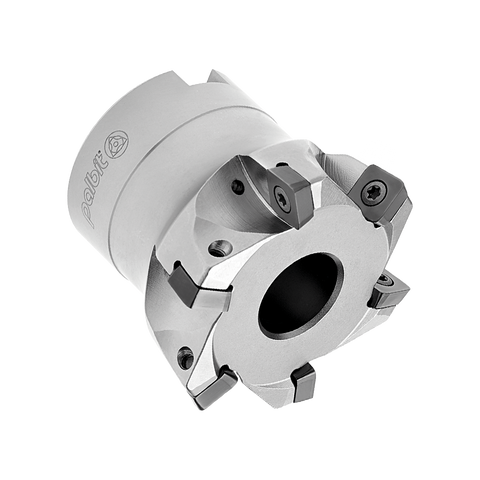

Palbit Arbor Mounting Holder - For SO0803 Inserts - 40mm Cutter Diameter - 181149800
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 30 |
Learn more about Klarna
Engineered for precision grooving and parting, the Palbit Arbor Mounting Holder for SO0803 inserts delivers secure clamping and superior rigidity. Built for high-speed CNC machining, this holder ensures consistent cutting accuracy and long tool life, making it a dependable choice for demanding production environments.
- Compatibility: Designed specifically for Palbit SO0803 inserts.
- Diameter: 40 mm cutter diameter.
- Secure Clamping: Robust mounting that minimizes runout and maintains alignment.
- Rigidity: Precision-balanced body for maximum stiffness during heavy cutting.
- Performance: Optimized for high-speed CNC machining with stable, clean cuts.
- Durability & Finish: Promotes long tool life and superior surface finishes in tough production environments.
With reliable mounting and consistent rigidity, you’ll achieve repeatable groove and parting results, reduced tool wear, and fewer interruptions in production. This holder supports precise grooving operations while helping you meet tight tolerances and finish requirements, all in a durable, production-ready design.
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 30 |
| Tool Cutting Edge Angle (KAPR) | 10 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06410 - Arbor Mounting
View full collection →You are viewing PAL-181149800. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181149900 | SO0803 | HI Feed | Arbor Mounting | 52 | 45 | £254.70 | 5 days | |
| PAL-181153200 | SO0803 | HI Feed | Arbor Mounting | 50 | 45 | £254.70 | 5 days | |
| PAL-181149800 Viewing | SO0803 | HI Feed | Arbor Mounting | 40 | 40 | £222.76 | 5 days |
