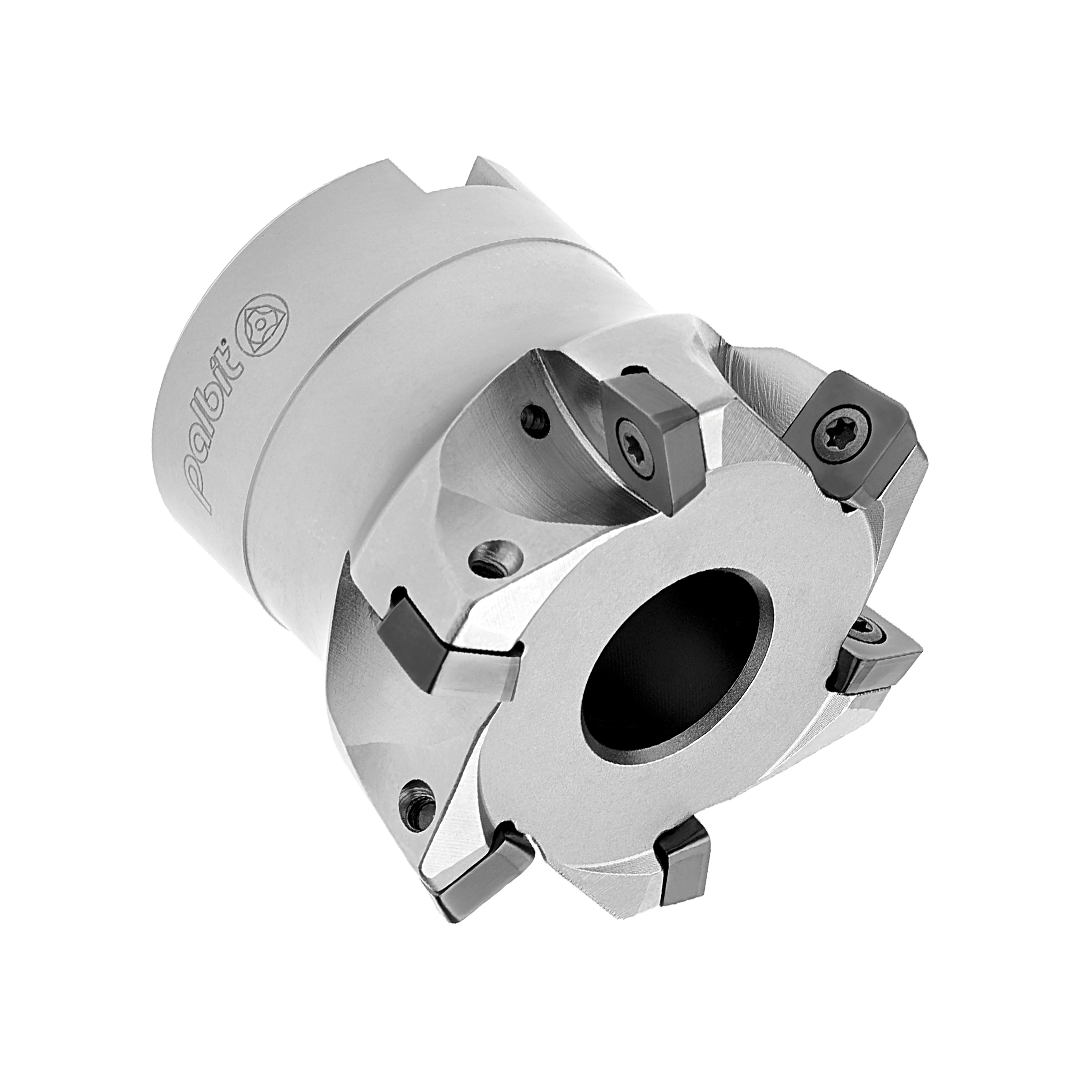

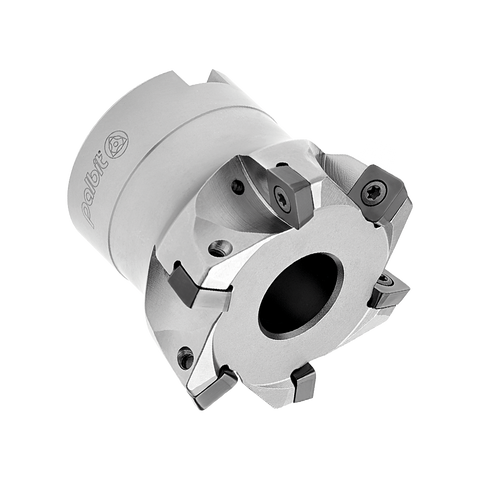

Palbit Arbor Mounting Holder - For SO0803 Inserts - 52mm Cutter Diameter - 181149900

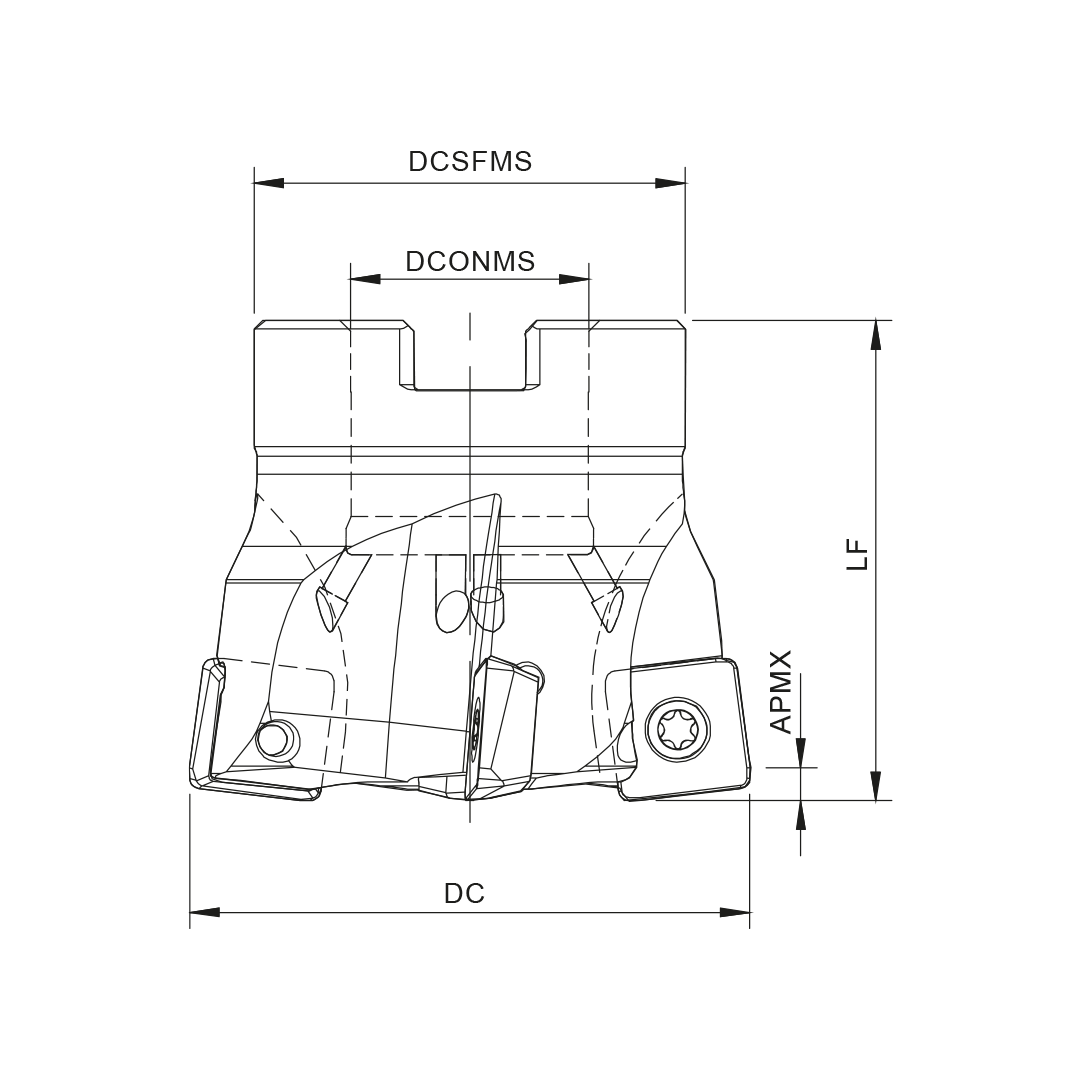

| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 40 |
Learn more about Klarna
The Palbit Arbor Mounting Holder for SO0803 inserts is engineered for precision grooving and parting in high-speed CNC machining. It provides secure clamping and exceptional rigidity to deliver repeatable accuracy and long tool life.
- For SO0803 Inserts: Precisely designed to seat and align SO0803 inserts for consistent performance.
- 52 mm Cutter Diameter: Matches the specified geometry to fit typical grooving applications.
- Secure Clamping: Robust fastening minimizes runout and keeps inserts firmly in place during cutting.
- High Rigidity: Sturdy mounting interface resists vibration for stable, accurate cuts.
- Grooving and Parting Focus: Optimized for the demanding needs of groove and parting operations.
These characteristics translate to reliable performance, steady surface finishes, and extended tool life in demanding production environments. Engineers and machinists rely on Palbit's mounting solutions for predictable results and reduced downtime in high-speed CNC operations.
| Insert Size & Shape | SO0803 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 6 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 40 |
| Tool Cutting Edge Angle (KAPR) | 10 |
| Cutting Diameter (DC) | 52 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 45 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | -3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06410 - Arbor Mounting
View full collection →You are viewing PAL-181149900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181149900 Viewing | SO0803 | HI Feed | Arbor Mounting | 52 | 45 | £254.70 | 5 days | |
| PAL-181153200 | SO0803 | HI Feed | Arbor Mounting | 50 | 45 | £254.70 | 5 days | |
| PAL-181149800 | SO0803 | HI Feed | Arbor Mounting | 40 | 40 | £222.76 | 5 days |
