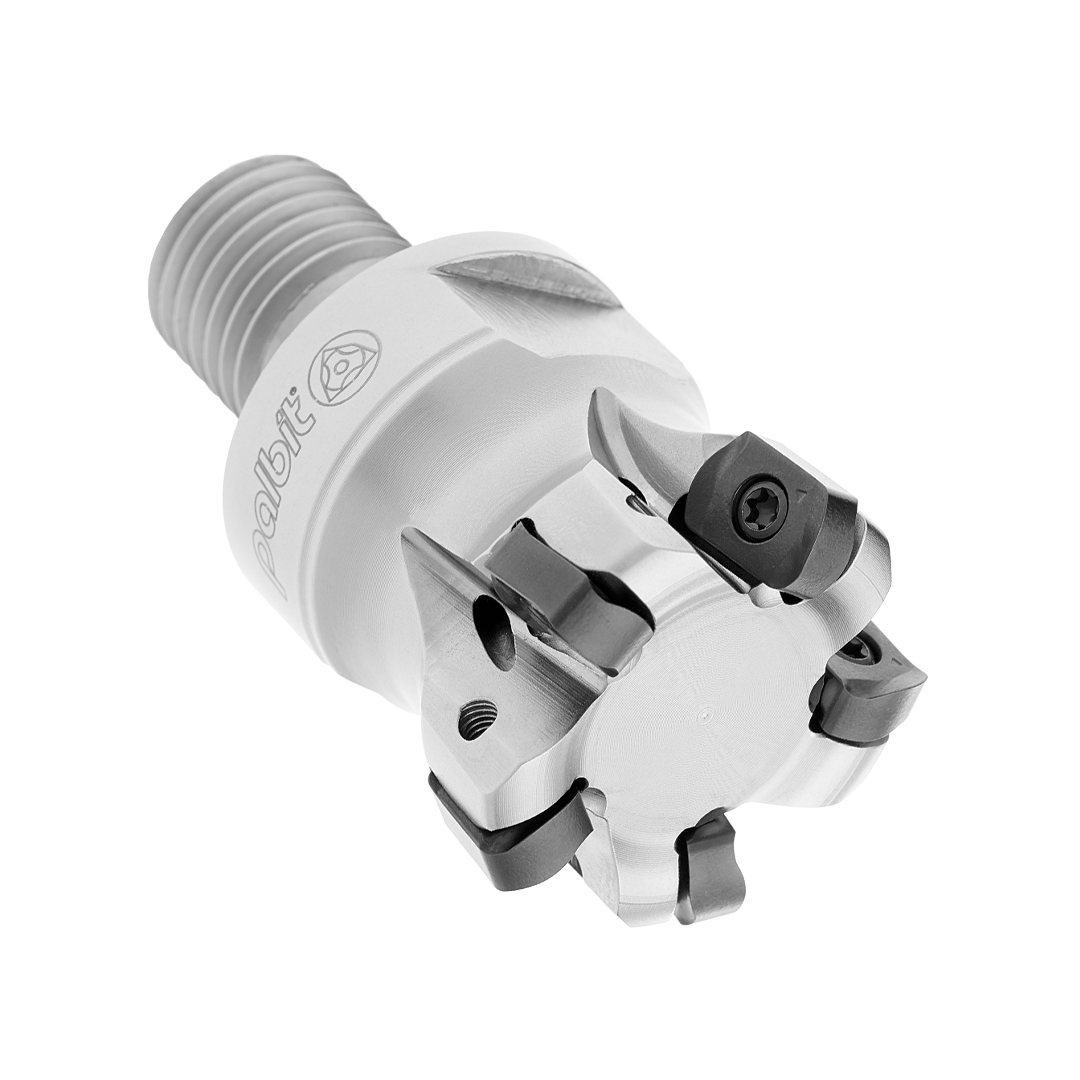

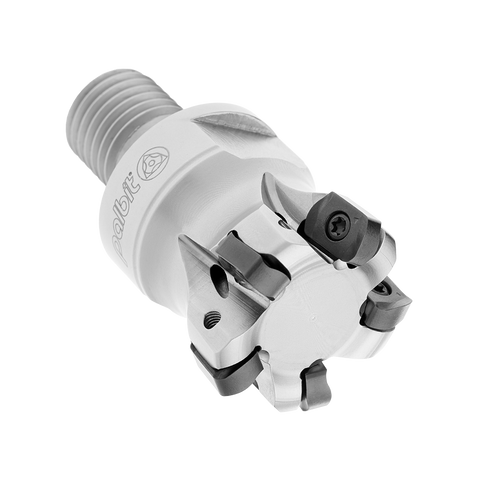

Palbit Threaded Coupling Holder - For XN06T3 Inserts - 20mm Cutter Diameter - 181151400

Palbit Threaded Coupling Holder - For XN06T3 Inserts - 20mm Cutter Diameter - 181151400

SKU:PAL-181151400
Palbit Threaded Coupling Holder for XN06T3 inserts delivers secure clamping and high rigidity for precision micro internal threading. Designed for CNC engineers and machinists, it supports tight-t... Read more ↓
Specification
Insert Size & ShapeXN06T3
Depth of Cut Maximum (APMX)1
Cutting Item Count (CICT)3
Adaptive Interface Machine DirectionThreaded Coupling
Contact Surface Machine Side (DCSFMS)18
Tool Cutting Edge Angle (KAPR)20
View all specifications ↓
£159.84
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Threaded Coupling Holder for XN06T3 inserts delivers secure clamping and high rigidity for precision micro internal threading. Designed for CNC engineers and machinists, it supports tight-tolerance threading tasks with a 20 mm cutter diameter.

  • Compatibility: Specifically engineered for XN06T3 inserts, ensuring precise interface and alignment.
  • Diameter: 20 mm cutter diameter for compact, predictable cutting geometry on small components.
  • Clamping: Secure, repeatable clamping that minimizes runout and preserves thread geometry.
  • Rigidity: Robust design that resists deflection under cutting forces during micro threading.
  • Thread Profile Accuracy: Maintains consistent thread forms for high-precision internal threads.
  • Vibration Control: Optimized to reduce vibration, improving surface finish and tool life.

By delivering reliable clamping, rigidity, and consistent thread formation, this coupling holder reduces scrap and rework in precision threading projects. It enables smooth tool paths, enhanced surface finishes, and longer tool life in environments that demand tight tolerances and dependable threading quality.

Insert Size & Shape XN06T3
Depth of Cut Maximum (APMX) 1
Cutting Item Count (CICT) 3
Adaptive Interface Machine Direction Threaded Coupling
Contact Surface Machine Side (DCSFMS) 18
Tool Cutting Edge Angle (KAPR) 20
Cutting Diameter (DC) 20
Torque (TQ) 1.2
Functional Length (LF) 28
Axial Rake Angel (GAMP) -7
Rdial Rake Angle (GAMF) -15

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: TETRAFEED 16320 - Threaded Coupling

View full collection →

You are viewing PAL-181151400. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181151800 XN06T3HI FeedThreaded Coupling4235£243.43 5 days
PAL-181178500 XN06T3HI FeedThreaded Coupling4035£225.16 5 days
PAL-181151700 XN06T3HI FeedThreaded Coupling4045£214.08 5 days
PAL-181178600 XN06T3HI FeedThreaded Coupling3535£208.92 5 days
PAL-181151600 XN06T3HI FeedThreaded Coupling3535£212.98 5 days
PAL-181148000 XN06T3HI FeedThreaded Coupling3235£205.42 5 days
PAL-181151500 XN06T3HI FeedThreaded Coupling2535£174.98 5 days
PAL-181151400 ViewingXN06T3HI FeedThreaded Coupling2028£159.84 5 days
PAL-181151300 XN06T3HI FeedThreaded Coupling1625£117.94 5 days
