Palbit Threaded Coupling Holder - For XN06T3 Inserts - 35mm Cutter Diameter - 181178600

Palbit Threaded Coupling Holder - For XN06T3 Inserts - 35mm Cutter Diameter - 181178600

SKU:PAL-181178600
The Palbit Threaded Coupling Holder is a precision tool holder designed for micro internal threading using XN06T3 inserts. With a 35mm cutter diameter, it delivers secure clamping, high rigidity, ... Read more ↓
Specification
Insert Size & ShapeXN06T3
Depth of Cut Maximum (APMX)1
Cutting Item Count (CICT)5
Adaptive Interface Machine DirectionThreaded Coupling
Contact Surface Machine Side (DCSFMS)29
Tool Cutting Edge Angle (KAPR)20
View all specifications ↓
£208.92
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

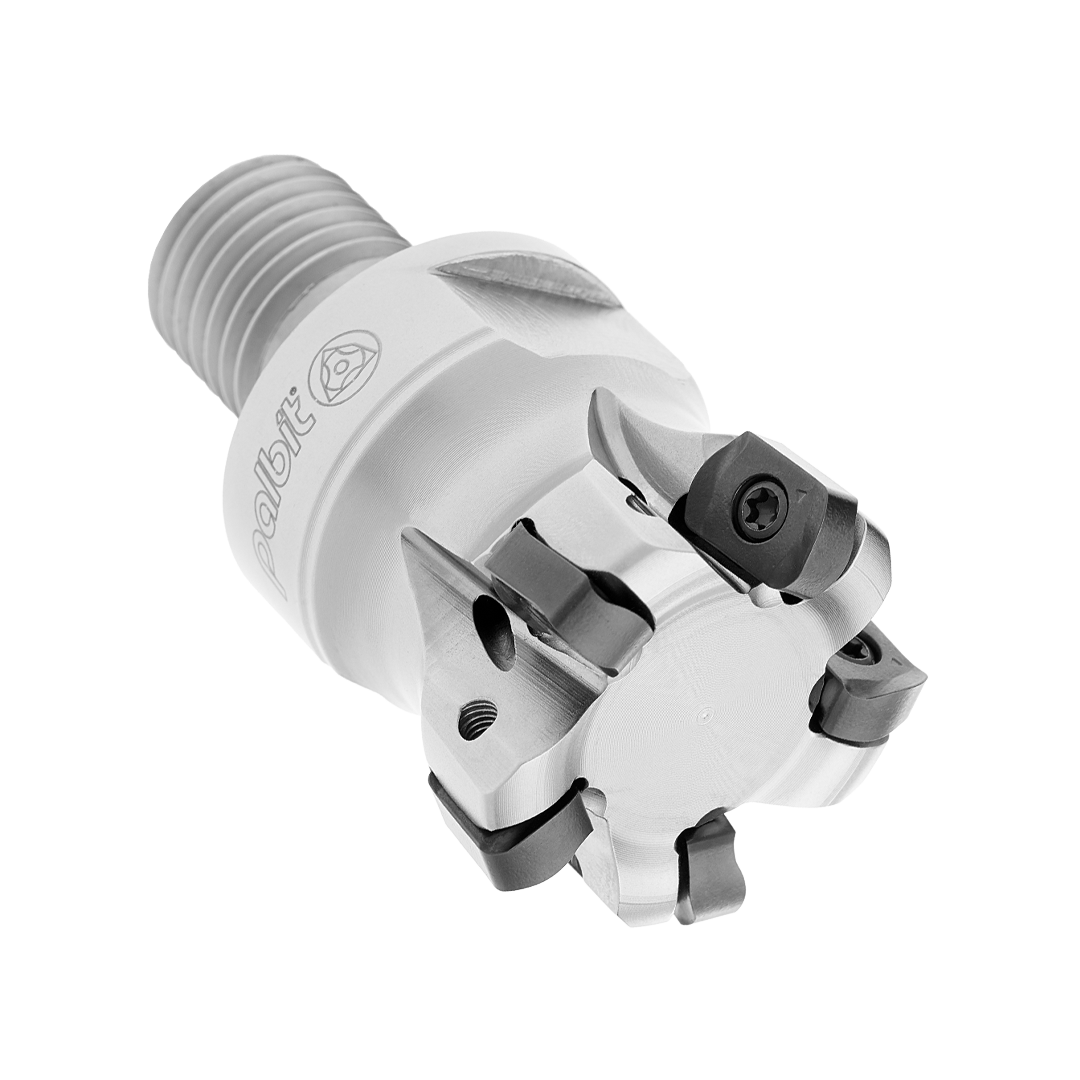

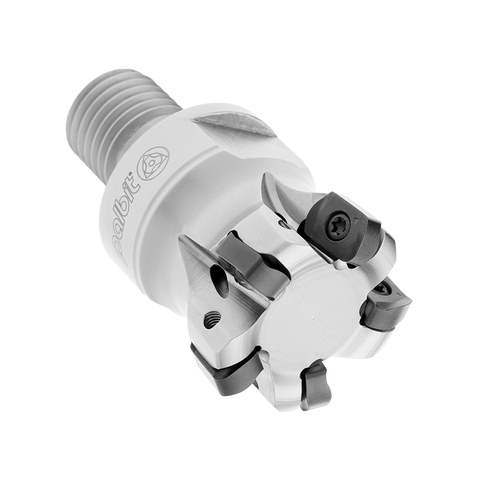

The Palbit Threaded Coupling Holder is a precision tool holder designed for micro internal threading using XN06T3 inserts. With a 35mm cutter diameter, it delivers secure clamping, high rigidity, and reliable performance in tight-tolerance CNC applications.

  • Product Code: 181178600
  • Compatibility: For XN06T3 inserts, ensuring proper seating and alignment.
  • Cutter Diameter: 35 mm
  • Threaded Coupling Design: Secure clamping and stable engagement between holder and insert.
  • Rigidity: Built to minimize deflection and vibrations during machining.
  • Precision Outcomes: Helps achieve accurate thread profiles and consistent threading quality.
  • Tool Life: Designed to reduce wear and extend service life in repetitive threading tasks.

Designed for CNC engineers and machinists performing fine-detail threading with tight tolerances, this holder ensures dependable performance across multiple cycles. The combination of secure clamping, rigidity, and vibration reduction translates to cleaner thread forms, repeatable results, and longer tool life—so you can produce precise internal threads with confidence and efficiency.

Insert Size & Shape XN06T3
Depth of Cut Maximum (APMX) 1
Cutting Item Count (CICT) 5
Adaptive Interface Machine Direction Threaded Coupling
Contact Surface Machine Side (DCSFMS) 29
Tool Cutting Edge Angle (KAPR) 20
Cutting Diameter (DC) 35
Torque (TQ) 1.2
Functional Length (LF) 35
Axial Rake Angel (GAMP) -7
Rdial Rake Angle (GAMF) -9

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: TETRAFEED 16320 - Threaded Coupling

View full collection →

You are viewing PAL-181178600. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181151800 XN06T3HI FeedThreaded Coupling4235£243.43 5 days
PAL-181178500 XN06T3HI FeedThreaded Coupling4035£225.16 5 days
PAL-181151700 XN06T3HI FeedThreaded Coupling4045£214.08 5 days
PAL-181178600 ViewingXN06T3HI FeedThreaded Coupling3535£208.92 5 days
PAL-181151600 XN06T3HI FeedThreaded Coupling3535£212.98 5 days
PAL-181148000 XN06T3HI FeedThreaded Coupling3235£205.42 5 days
PAL-181151500 XN06T3HI FeedThreaded Coupling2535£174.98 5 days
PAL-181151400 XN06T3HI FeedThreaded Coupling2028£159.84 5 days
PAL-181151300 XN06T3HI FeedThreaded Coupling1625£117.94 5 days
