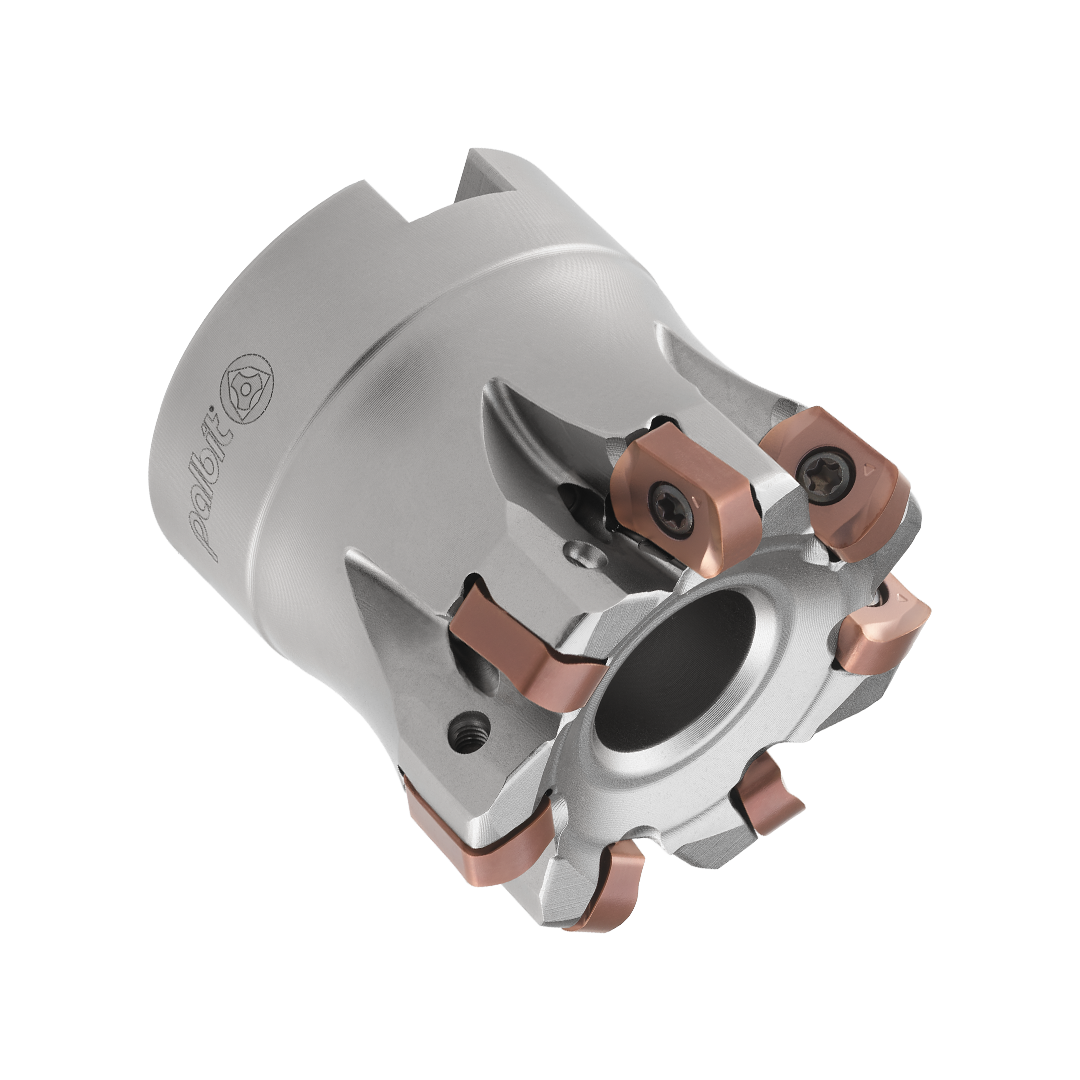

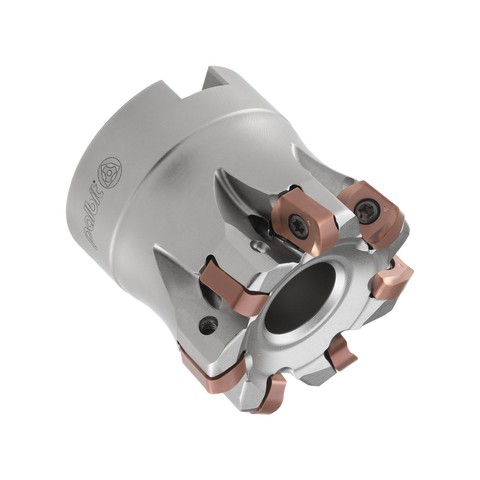

Palbit Arbor Mounting Holder - For XN06T3 Inserts - 63mm Cutter Diameter - 181152600
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 9 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
Learn more about Klarna
The Palbit Arbor Mounting Holder is a precision toolholding solution designed for CNC engineers and machinists performing fine-detail grooving and parting. It secures XN06T3 inserts with rugged clamping to ensure accurate cuts and extended tool life.
- 63 mm Cutter Diameter: Defines the cutting envelope for grooving and parting tasks, supporting predictable depths and chip control.
- For XN06T3 Inserts: Engineered to seat and align XN06T3 inserts for reliable alignment and consistent performance.
- Secure Clamping: Robust clamping system minimizes movement during cutting, enhancing accuracy and surface finish.
- High Rigidity: Built to resist deflection under load, delivering stable cuts and longer tool life in demanding environments.
- Designed for Precision Grooving and Parting: Optimized geometry and seating support enable clean, precise grooves and clean parting operations.
Reliable results and superior surface finishes are achieved across high-volume machining tasks, with reduced setup time and enhanced process stability on busy shop floors and CNC production lines.
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 9 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 63 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TETRAFEED 16320 - Arbor Mounting
View full collection →You are viewing PAL-181152600. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181177800 | XN06T3 | HI Feed | Arbor Mounting | 80 | 50 | £369.12 | 5 days | |
| PAL-181152600 Viewing | XN06T3 | HI Feed | Arbor Mounting | 63 | 40 | £308.03 | 5 days | |
| PAL-181152500 | XN06T3 | HI Feed | Arbor Mounting | 52 | 40 | £277.57 | 5 days | |
| PAL-181157500 | XN06T3 | HI Feed | Arbor Mounting | 50 | 40 | £224.42 | 5 days | |
| PAL-181152400 | XN06T3 | HI Feed | Arbor Mounting | 50 | 40 | £269.99 | 5 days | |
| PAL-181152300 | XN06T3 | HI Feed | Arbor Mounting | 40 | 40 | £232.00 | 5 days | |
| PAL-181206300 | XN06T3 | HI Feed | Arbor Mounting | 32 | 40 | £201.21 | 5 days |
