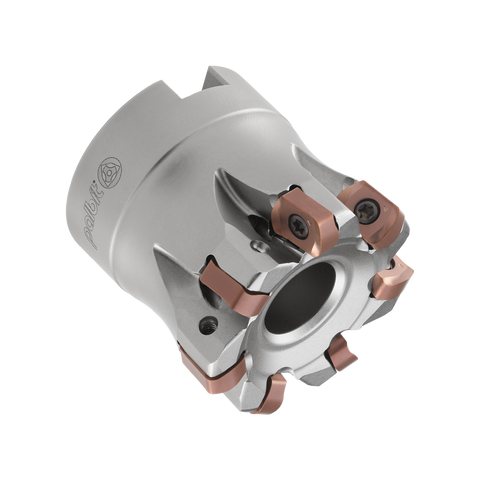

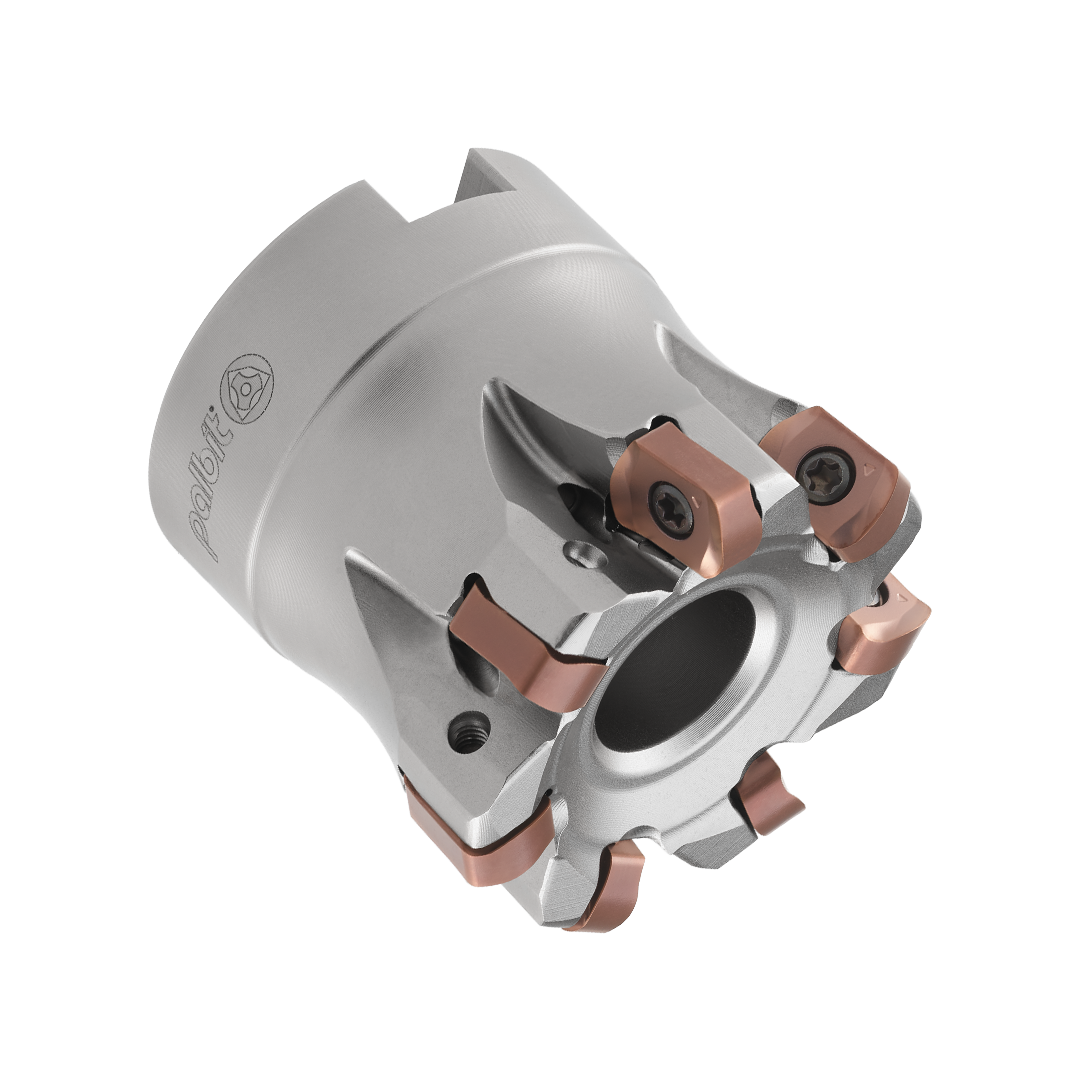

Palbit Arbor Mounting Holder - For XN06T3 Inserts - 80mm Cutter Diameter - 181177800

Palbit Arbor Mounting Holder - For XN06T3 Inserts - 80mm Cutter Diameter - 181177800

SKU:PAL-181177800
Palbit's Arbor Mounting Holder is built for precision grooving and parting with XN06T3 inserts, delivering secure clamping and exceptional rigidity for demanding CNC applications. For XN06T3 ins... Read more ↓
Specification
Insert Size & ShapeXN06T3
Depth of Cut Maximum (APMX)1
Cutting Item Count (CICT)10
Connection Diameter (DCONMS)27
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)60
View all specifications ↓
£369.12
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit's Arbor Mounting Holder is built for precision grooving and parting with XN06T3 inserts, delivering secure clamping and exceptional rigidity for demanding CNC applications.

  • For XN06T3 inserts: Precisely engineered to seat and clamp XN06T3 inserts for stable, accurate cuts.
  • 80 mm cutter diameter: Designed to accommodate an 80 mm cutter diameter for wide grooves and deeper passes.
  • Secure clamping: Robust clamping system minimizes runout and enhances surface finish.
  • High rigidity: Engineered to resist deflection, ensuring consistent cutting performance.
  • Performance in CNC environments: Optimized for long tool life and reliable results in demanding production settings.
  • Designed for professionals: Ideal for CNC engineers and machinists performing fine-detail grooving and parting tasks.

This Arbor Mounting Holder translates into precise, repeatable grooving and parting with clean surface finishes. Its secure clamp and built-in rigidity minimize deflection and chatter, helping CNC engineers achieve consistent tolerances on every pass. Designed for demanding production environments, it supports longer tool life and reduces downtime from tool changes while delivering reliable, high-quality results.

Insert Size & Shape XN06T3
Depth of Cut Maximum (APMX) 1
Cutting Item Count (CICT) 10
Connection Diameter (DCONMS) 27
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 60
Tool Cutting Edge Angle (KAPR) 20
Cutting Diameter (DC) 80
Torque (TQ) 1.2
Functional Length (LF) 50
Axial Rake Angel (GAMP) -7
Rdial Rake Angle (GAMF) -5
