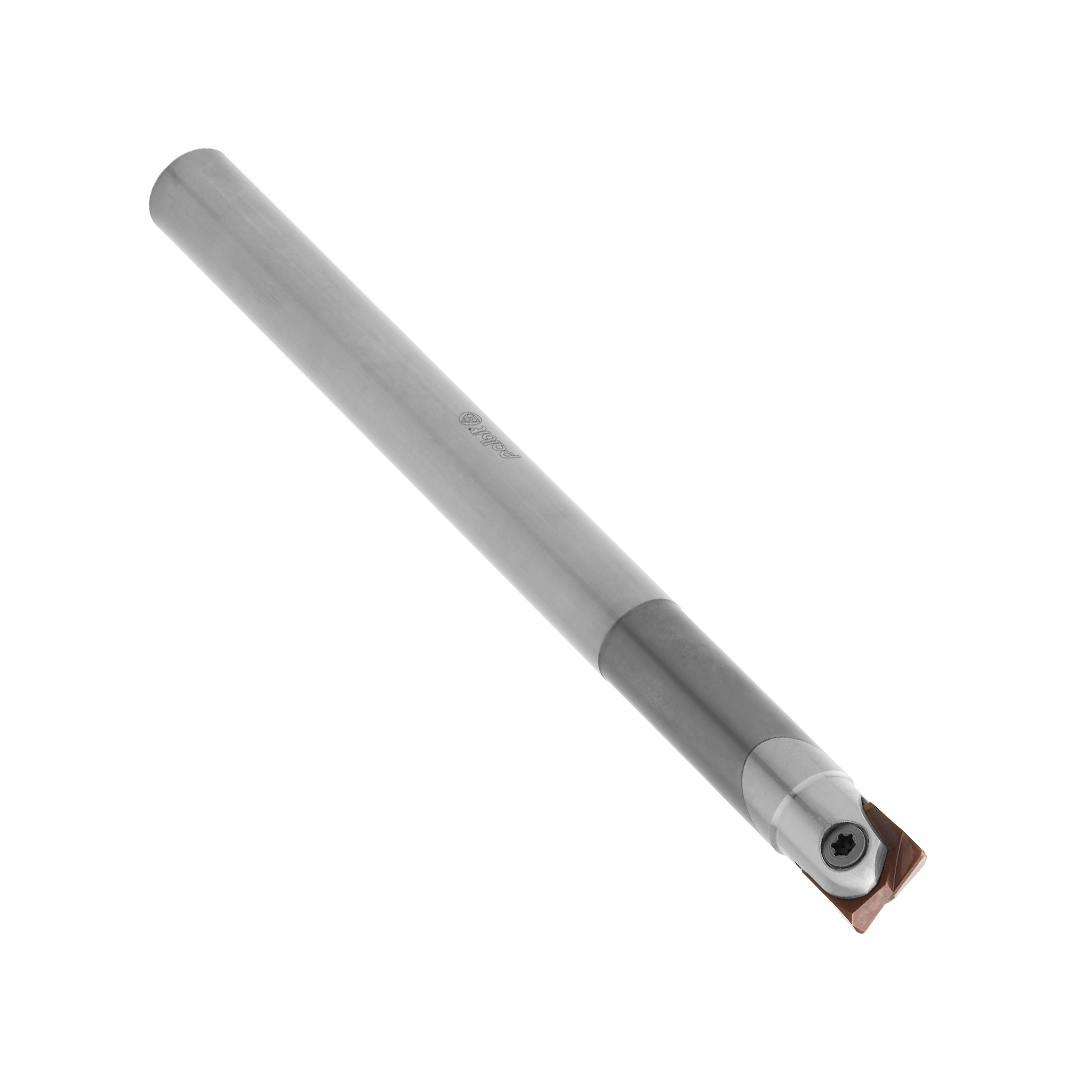

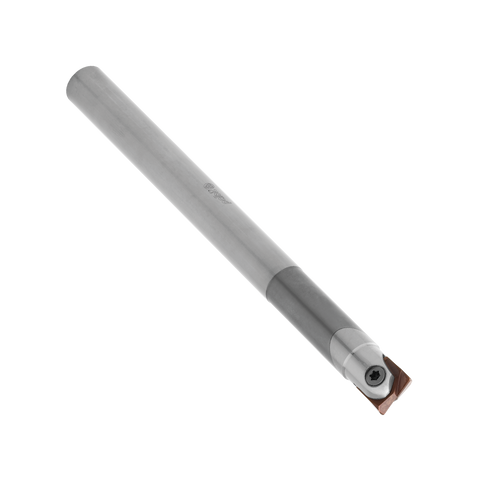

Palbit Cylindrical Shank Holder - 12mm Cutter Diameter - 181155700

Palbit Cylindrical Shank Holder - 12mm Cutter Diameter - 181155700

SKU:PAL-181155700
Palbit Cylindrical Shank Holder, 12 mm cutter diameter, model 181155700, is built for precision and versatility in CNC machining. It provides secure tool holding for a wide range of inserts, deli... Read more ↓
Specification
Depth of Cut Maximum (APMX)6.0 4.0
Cutting Item Count (CICT)2
Connection Diameter (DCONMS)12
Adaptive Interface Machine DirectionCylindrical Shank
Tool Cutting Edge Angle (KAPR)90
Cutting Diameter (DC)12
View all specifications ↓
£316.82
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Cylindrical Shank Holder, 12 mm cutter diameter, model 181155700, is built for precision and versatility in CNC machining. It provides secure tool holding for a wide range of inserts, delivering rigidity and dependable performance in external threading and milling tasks.

  • 12 mm cutter diameter: Designed to accommodate a 12 mm cutter for precise engagement and alignment during external threading and milling.
  • Rigid cylindrical shank design: Engineered to maximize rigidity and minimize deflection, ensuring stable cutting conditions across demanding operations.
  • Wide insert compatibility: Holds a broad range of inserts, enabling quick adaptation to different applications without swapping holders.
  • Optimized for external threading and milling: Specifically suited to the demands of external threading and milling workflows for reliable performance.
  • Professional-grade construction: Trusted by CNC engineers and machinists for consistent accuracy in harsh machining environments.
  • Model number: 181155700 for easy reference and ordering

Designed to deliver secure tool engagement and exceptional rigidity, this holder helps maximize tool life, improve surface finish, and maintain tight tolerances in demanding environments. Its broad insert compatibility reduces setup time and inventory needs, while the 12 mm cutter diameter supports a wide range of tooling. For CNC professionals seeking dependable, repeatable results, Palbit’s cylindrical shank holder offers proven performance in both threading and milling applications.

Depth of Cut Maximum (APMX) 6.0 4.0
Cutting Item Count (CICT) 2
Connection Diameter (DCONMS) 12
Adaptive Interface Machine Direction Cylindrical Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 12
Torque (TQ) 5
Functional Length (LF) 165
Usable Length (LU) 55

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: W-PRO 62090 - Cylindrical Shank

View full collection →

You are viewing PAL-181155700. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181157400 Insert Size and ShapeProfile CuttersCylindrical Shank20300£633.65 5 days
PAL-181157300 Insert Size and ShapeProfile CuttersCylindrical Shank20250£588.38 5 days
PAL-181157200 Insert Size and ShapeProfile CuttersCylindrical Shank20220£543.15 5 days
PAL-181157100 Insert Size and ShapeProfile CuttersCylindrical Shank16250£452.59 5 days
PAL-181157000 Insert Size and ShapeProfile CuttersCylindrical Shank16200£429.98 5 days
PAL-181156900 Insert Size and ShapeProfile CuttersCylindrical Shank12200£339.46 5 days
PAL-181155700 ViewingInsert Size and ShapeProfile CuttersCylindrical Shank12165£316.82 5 days
PAL-181156800 Insert Size and ShapeProfile CuttersCylindrical Shank10180£316.82 5 days
PAL-181156700 Insert Size and ShapeProfile CuttersCylindrical Shank10150£303.41 5 days
