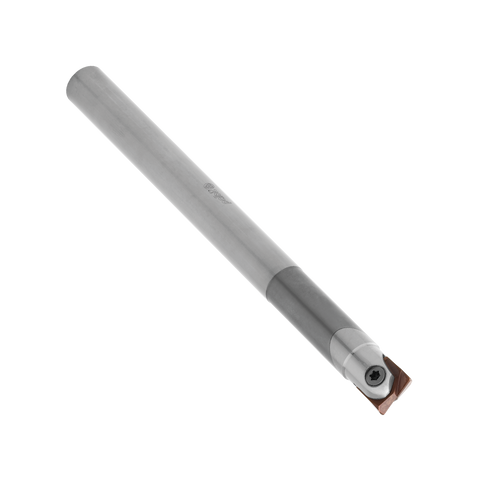

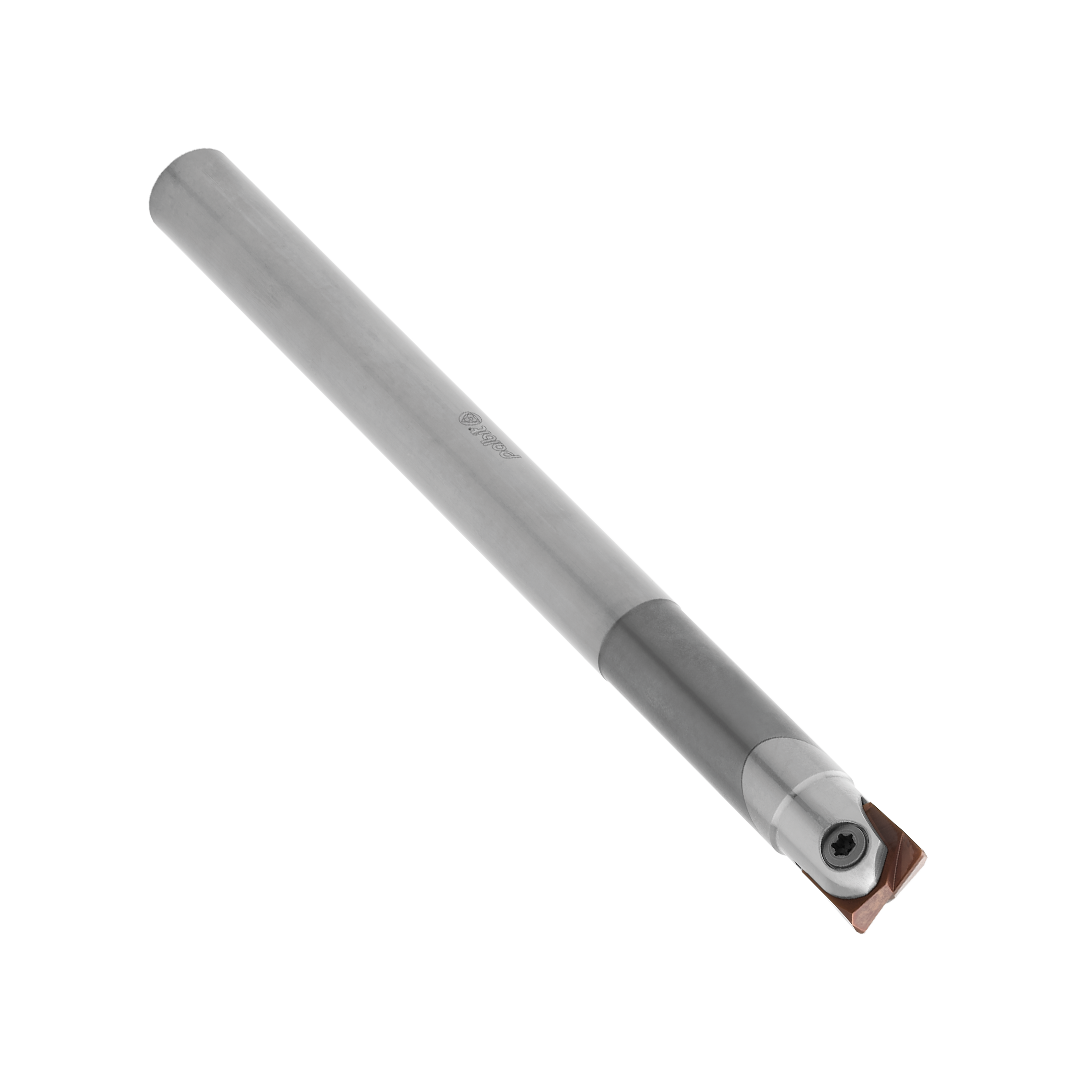

Palbit Cylindrical Shank Holder - 20mm Cutter Diameter - 181157400

Palbit Cylindrical Shank Holder - 20mm Cutter Diameter - 181157400

SKU:PAL-181157400
Palbit Cylindrical Shank Holder is a precision tool holder engineered for secure, stable performance with a wide range of inserts. Built for external threading and milling, it is designed for a 2... Read more ↓
Specification
Depth of Cut Maximum (APMX)10.0 6.0
Cutting Item Count (CICT)2
Connection Diameter (DCONMS)20
Adaptive Interface Machine DirectionCylindrical Shank
Tool Cutting Edge Angle (KAPR)90
Cutting Diameter (DC)20
View all specifications ↓
£633.65
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Cylindrical Shank Holder is a precision tool holder engineered for secure, stable performance with a wide range of inserts. Built for external threading and milling, it is designed for a 20 mm cutter diameter to deliver consistent accuracy in demanding machining environments.

  • Diameter: 20 mm cutter diameter
  • Design: Cylindrical shank holder for secure insertion and rigidity
  • Insert compatibility: Wide range of inserts supported
  • Applications: Optimized for external threading and milling
  • Performance: Excellent rigidity and reliable performance
  • End-user trust: Trusted by CNC engineers and machinists

Using this Palbit holder helps maximise tool life, deliver superior surface finishes, and maintain consistent accuracy across challenging machining tasks. The robust cylindrical shank minimizes vibration, enabling smoother cuts in external threading and milling. Its broad insert compatibility provides flexibility to optimize tooling for varying materials and speeds, reducing downtime and improving overall productivity.

Depth of Cut Maximum (APMX) 10.0 6.0
Cutting Item Count (CICT) 2
Connection Diameter (DCONMS) 20
Adaptive Interface Machine Direction Cylindrical Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 20
Torque (TQ) 6.9
Functional Length (LF) 300

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: W-PRO 62090 - Cylindrical Shank

View full collection →

You are viewing PAL-181157400. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181157400 ViewingInsert Size and ShapeProfile CuttersCylindrical Shank20300£633.65 5 days
PAL-181157300 Insert Size and ShapeProfile CuttersCylindrical Shank20250£588.38 5 days
PAL-181157200 Insert Size and ShapeProfile CuttersCylindrical Shank20220£543.15 5 days
PAL-181157100 Insert Size and ShapeProfile CuttersCylindrical Shank16250£452.59 5 days
PAL-181157000 Insert Size and ShapeProfile CuttersCylindrical Shank16200£429.98 5 days
PAL-181156900 Insert Size and ShapeProfile CuttersCylindrical Shank12200£339.46 5 days
PAL-181155700 Insert Size and ShapeProfile CuttersCylindrical Shank12165£316.82 5 days
PAL-181156800 Insert Size and ShapeProfile CuttersCylindrical Shank10180£316.82 5 days
PAL-181156700 Insert Size and ShapeProfile CuttersCylindrical Shank10150£303.41 5 days
