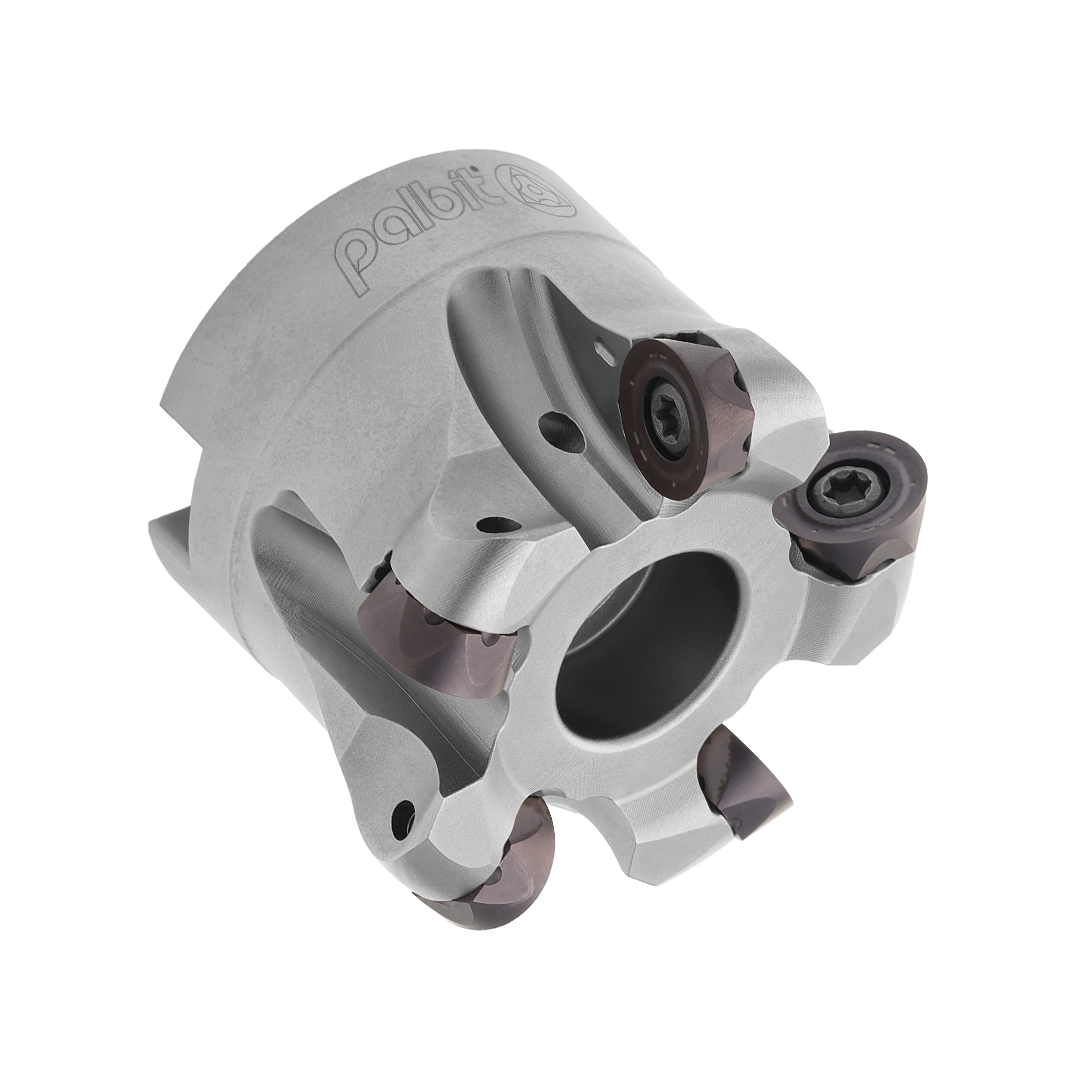

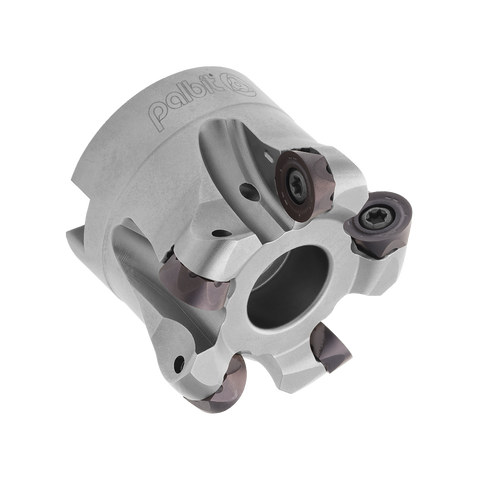

Palbit Arbor Mounting Holder - For RP1204 Inserts - 28mm Cutter Diameter - 181159600

Palbit Arbor Mounting Holder - For RP1204 Inserts - 28mm Cutter Diameter - 181159600

SKU:PAL-181159600
Palbit Arbor Mounting Holder is a precision accessory designed for RP1204 inserts, delivering secure retention and high rigidity to optimize grooving and parting in CNC work. It’s ideal for engine... Read more ↓
Specification
Insert Size & ShapeRP1204
Depth of Cut Maximum (APMX)6
Cutting Item Count (CICT)4
Connection Diameter (DCONMS)16
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)36
View all specifications ↓
£203.19
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder is a precision accessory designed for RP1204 inserts, delivering secure retention and high rigidity to optimize grooving and parting in CNC work. It’s ideal for engineers and machinists who demand consistent tool life and superior surface finish in demanding production environments.

  • For RP1204 inserts: Specifically engineered to accommodate RP1204 inserts for reliable performance.
  • 28mm cutter diameter: Compatible with a 28mm cutting diameter to suit standard grooving and parting applications.
  • Secure insert retention: Ensures the insert stays firmly in place during cutting, reducing movement and chatter.
  • Excellent rigidity: Stiff mounting minimizes deflection for consistent, precise results.
  • Reliable cutting performance: Delivers stable, predictable performance across production runs.

Designed to optimize grooving and parting operations, this holder helps achieve consistent tool life and a superior surface finish in precision CNC machining. Its robust construction supports repeatable performance in demanding production environments, giving engineers and machinists confidence from setup through completion.

Insert Size & Shape RP1204
Depth of Cut Maximum (APMX) 6
Cutting Item Count (CICT) 4
Connection Diameter (DCONMS) 16
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 36
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 28
Torque (TQ) 3
Maximum Cutting Diameter (DCX) 40
Functional Length (LF) 40
Axial Rake Angel (GAMP) 5
Rdial Rake Angle (GAMF) -4
