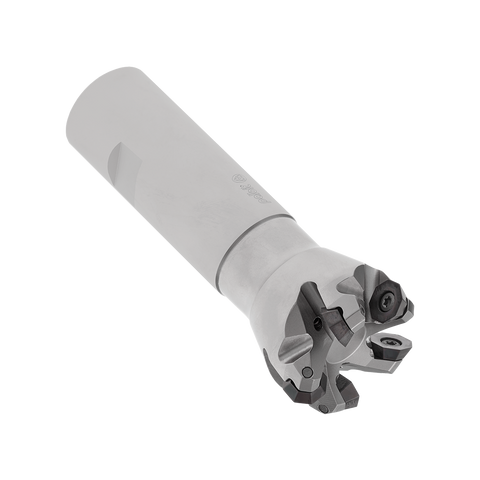

Palbit Weldon Shank Holder - For SF1004 OF0403 Inserts - 25mm Cutter Diameter - 181166000
| Insert Size & Shape | SF1004 OF0403 |
| Depth of Cut Maximum (APMX) | 3.50 2.50 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 45 |
Learn more about Klarna

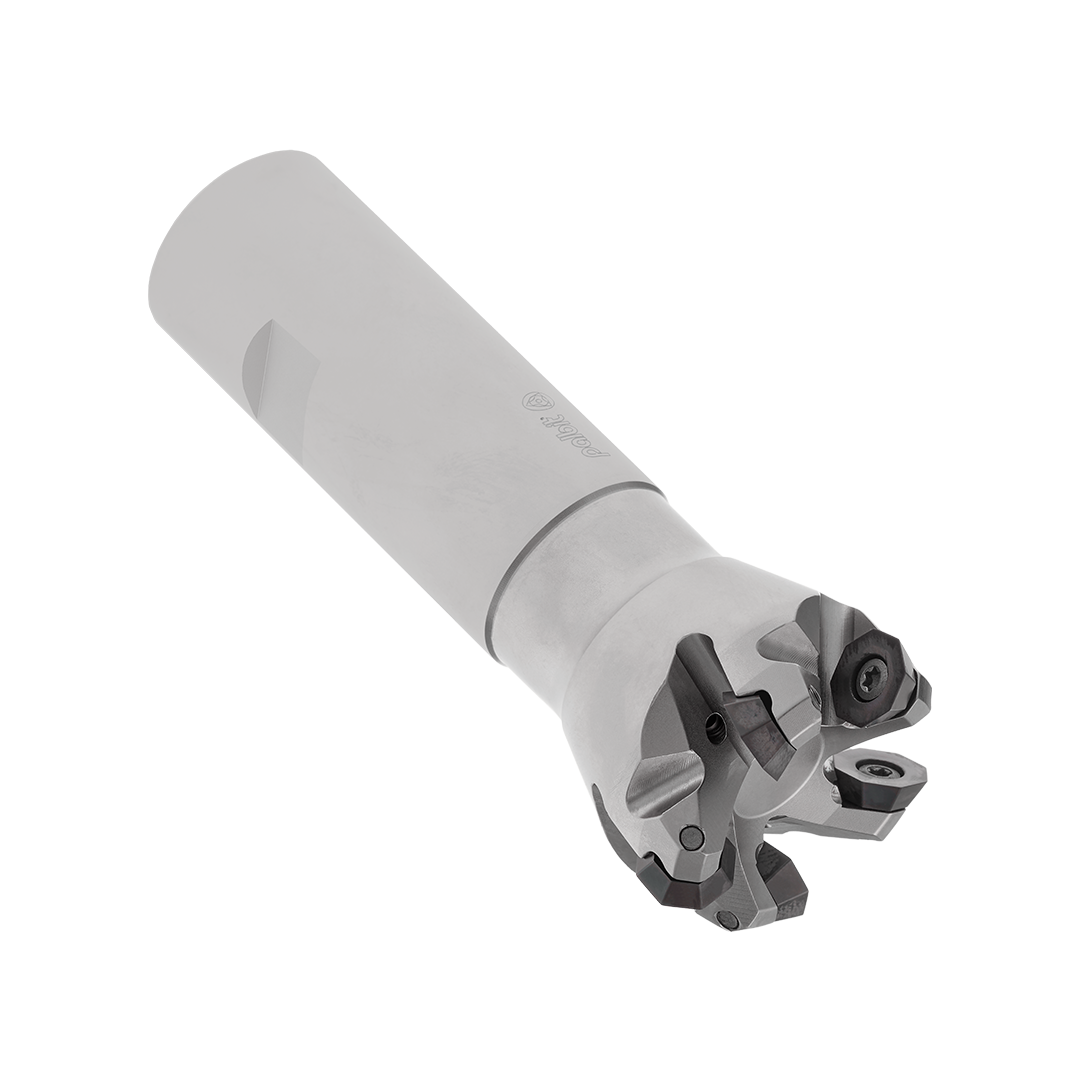

Palbit Weldon Shank Holder for SF1004 OF0403 inserts is a precision toolholding solution engineered to deliver stable, repeatable performance in grooving and parting applications. Designed for a 25 mm cutter diameter, it securely accepts SF1004 and OF0403 inserts to maintain tight tolerances and consistent results in CNC machining environments.
Engineered for demanding production environments, this holder provides excellent rigidity and secure insert retention, helping you achieve reliable cutting accuracy, efficient chip control, and extended tool life across long-running jobs.
- Rigid Weldon shank design: Minimizes deflection and run-out to preserve accuracy and tool life during heavy grooving and parting
- Secure insert retention for SF1004/OF0403: Keeps inserts firmly seated under load, reducing movement and protecting surface finish
- Efficient chip control and longevity: Optimizes chip flow around the cutting edge to reduce heat and wear, supporting longer tool life and fewer interruptions
This holder is a dependable choice for engineers and machinists seeking consistent performance, fast setup, and durable reliability in production CNC operations.
| Insert Size & Shape | SF1004 OF0403 |
| Depth of Cut Maximum (APMX) | 3.50 2.50 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 45 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.4 |
| Maximum Cutting Diameter (DCX) | 30.6 |
| Cutting Diameter (DC2) | 23.6 |
| Maximum Cutting Diameter 2(DCX2) | 32.7 |
| Functional Length (LF) | 85.7 |
| Axial Rake Angel (GAMP) | 18 |
| Rdial Rake Angle (GAMF) | -2.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: LINEPRO 57045 - Weldon Shank
View full collection →You are viewing PAL-181166000. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181166100 | SF1004 OF0403 | Facing Cutters | Weldon Shank | 32 | 100.7 | £216.67 | 5 days | |
| PAL-181166000 Viewing | SF1004 OF0403 | Facing Cutters | Weldon Shank | 25 | 85.7 | £195.01 | 5 days | |
| PAL-181165900 | SF1004 OF0403 | Facing Cutters | Weldon Shank | 20 | 80.7 | £170.25 | 5 days |
