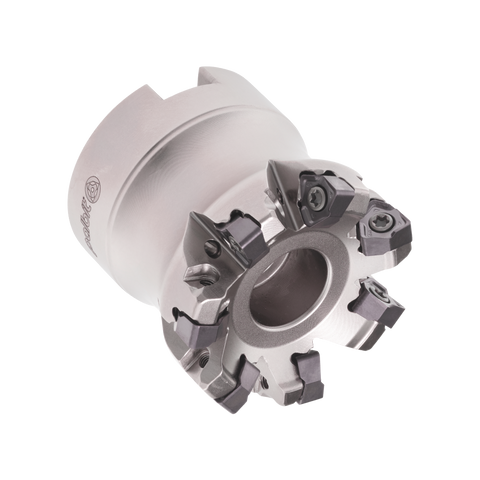

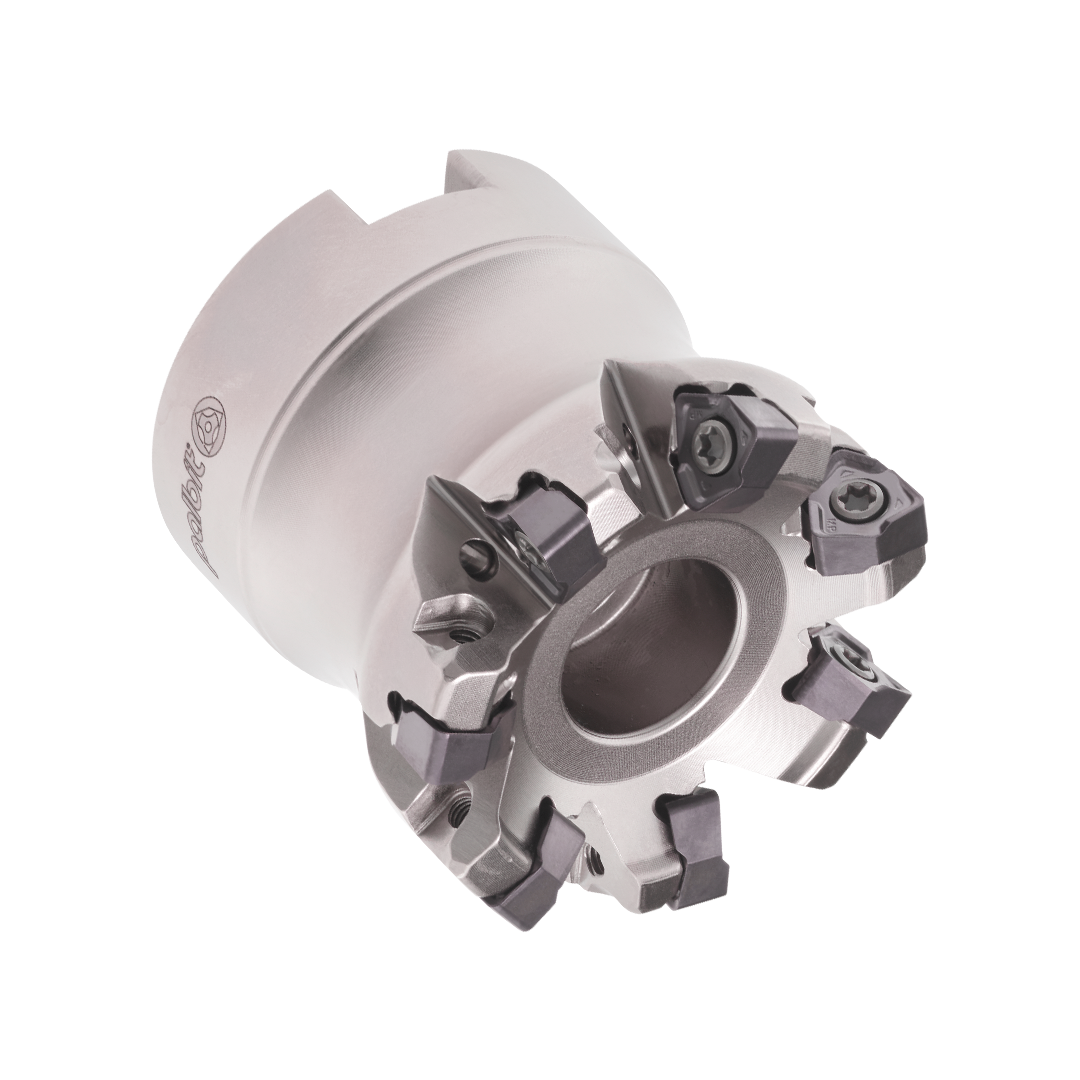

Palbit Arbor Mounting Holder - For WN0806 Inserts - 63mm Cutter Diameter - 181173600

Palbit Arbor Mounting Holder - For WN0806 Inserts - 63mm Cutter Diameter - 181173600

SKU:PAL-181173600
Palbit Arbor Mounting Holder for WN0806 inserts delivers rigidity and precise insert alignment for demanding milling tasks. Built for high-speed and heavy-duty applications, it supports consistent... Read more ↓
Specification
Insert Size & ShapeWN0806
Depth of Cut Maximum (APMX)7.5
Cutting Item Count (CICT)6
Connection Diameter (DCONMS)22
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)48
View all specifications ↓
£273.88
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder for WN0806 inserts delivers rigidity and precise insert alignment for demanding milling tasks. Built for high-speed and heavy-duty applications, it supports consistent results and longer tool life in challenging production environments.

  • Compatibility: Designed specifically for WN0806 inserts to ensure secure, repeatable mounting.
  • Cutter Diameter: 63 mm
  • Rigid Mounting Interface: Maximizes rigidity and insert stability to minimize runout during heavy cuts.
  • Milling Performance: Optimized for high-speed and heavy-duty milling applications.
  • Endorsement: Trusted by engineers and machinists for reliable, consistent results.
  • Part Number: 181173600

Achieve consistent milling results with a stable, rigid interface that supports precise insert positioning. This translates to improved surface finishes, reduced downtime, and extended tool life in demanding production environments.

Insert Size & Shape WN0806
Depth of Cut Maximum (APMX) 7.5
Cutting Item Count (CICT) 6
Connection Diameter (DCONMS) 22
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 48
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 63
Torque (TQ) 3
Functional Length (LF) 40
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -13
