Palbit Arbor Mounting Holder - For WN0806 Inserts - 125mm Cutter Diameter - 181174100

Palbit Arbor Mounting Holder - For WN0806 Inserts - 125mm Cutter Diameter - 181174100

SKU:PAL-181174100
Palbit Arbor Mounting Holder is a precision tool holder engineered for WN0806 inserts, offering stable, accurate milling with a 125 mm cutter diameter. Compatibility: Specifically designed to ... Read more ↓
Specification
Insert Size & ShapeWN0806
Depth of Cut Maximum (APMX)7.5
Cutting Item Count (CICT)11
Connection Diameter (DCONMS)40
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)90
View all specifications ↓
£650.20
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

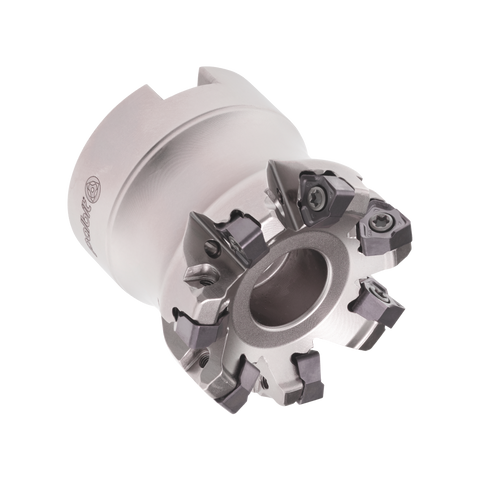

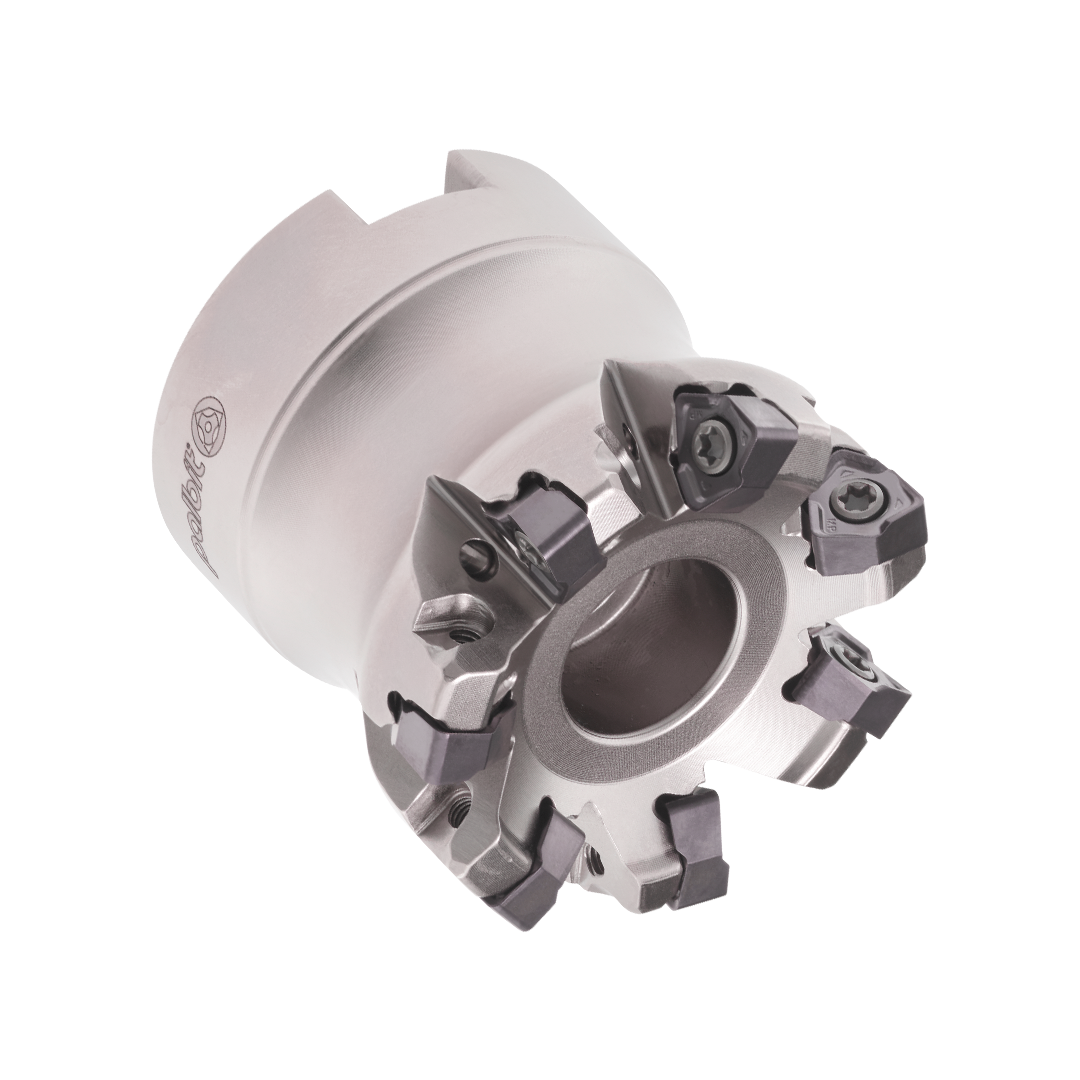

Palbit Arbor Mounting Holder is a precision tool holder engineered for WN0806 inserts, offering stable, accurate milling with a 125 mm cutter diameter.

  • Compatibility: Specifically designed to pair with WN0806 inserts for secure alignment and reliable seating.
  • 125 mm Cutter Diameter: Size optimized for broad milling reach and balanced cutting performance.
  • Rigid Clamping: High rigidity minimizes deflection and promotes consistent chip loads during cuts.
  • Insert Stability: Designed to hold inserts firmly in place, reducing vibration and chatter.
  • Performance in Demanding Milling: Suited for high-speed and heavy-duty milling, delivering steady results in tough production environments.

These features translate into tangible production gains: more consistent surface finishes, reduced downtime, and longer tool life thanks to reliable seating and robust construction. Engineers and machinists rely on Palbit reliability to maintain edge quality and dimensional accuracy, even on challenging materials and demanding cycles.

Insert Size & Shape WN0806
Depth of Cut Maximum (APMX) 7.5
Cutting Item Count (CICT) 11
Connection Diameter (DCONMS) 40
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 90
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 125
Torque (TQ) 3
Functional Length (LF) 63
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -13

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: HEXAPLUS 49490 - Arbor Mounting

View full collection →

You are viewing PAL-181174100. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181173700 WN0806Shouldering CuttersArbor Mounting8050£323.15 5 days
PAL-181173600 WN0806Shouldering CuttersArbor Mounting6340£273.88 5 days
PAL-181173500 WN0806Shouldering CuttersArbor Mounting6340£266.13 5 days
PAL-181173400 WN0806Shouldering CuttersArbor Mounting5040£243.43 5 days
PAL-181165600 WN0806Shouldering CuttersArbor Mounting5040£250.99 5 days
PAL-181174900 WN0806Shouldering CuttersArbor Mounting4040£220.56 5 days
PAL-181204200 WN0806Shouldering CuttersArbor Mounting16063£773.86 5 days
PAL-181174100 ViewingWN0806Shouldering CuttersArbor Mounting12563£650.20 5 days
PAL-181173900 WN0806Shouldering CuttersArbor Mounting10050£380.17 5 days
PAL-181192600 WN0403 WO0403Shouldering CuttersArbor Mounting6340£346.70 5 days
PAL-181192500 WN0403 WO0403Shouldering CuttersArbor Mounting5040£312.64 5 days
PAL-181192400 WN0403 WO0403Shouldering CuttersArbor Mounting5040£303.35 5 days
PAL-181192300 WN0403 WO0403Shouldering CuttersArbor Mounting4040£263.11 5 days
PAL-181192200 WN0403 WO0403Shouldering CuttersArbor Mounting3240£244.55 5 days
