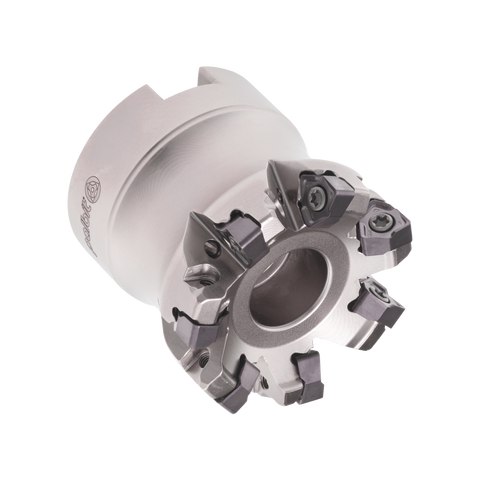

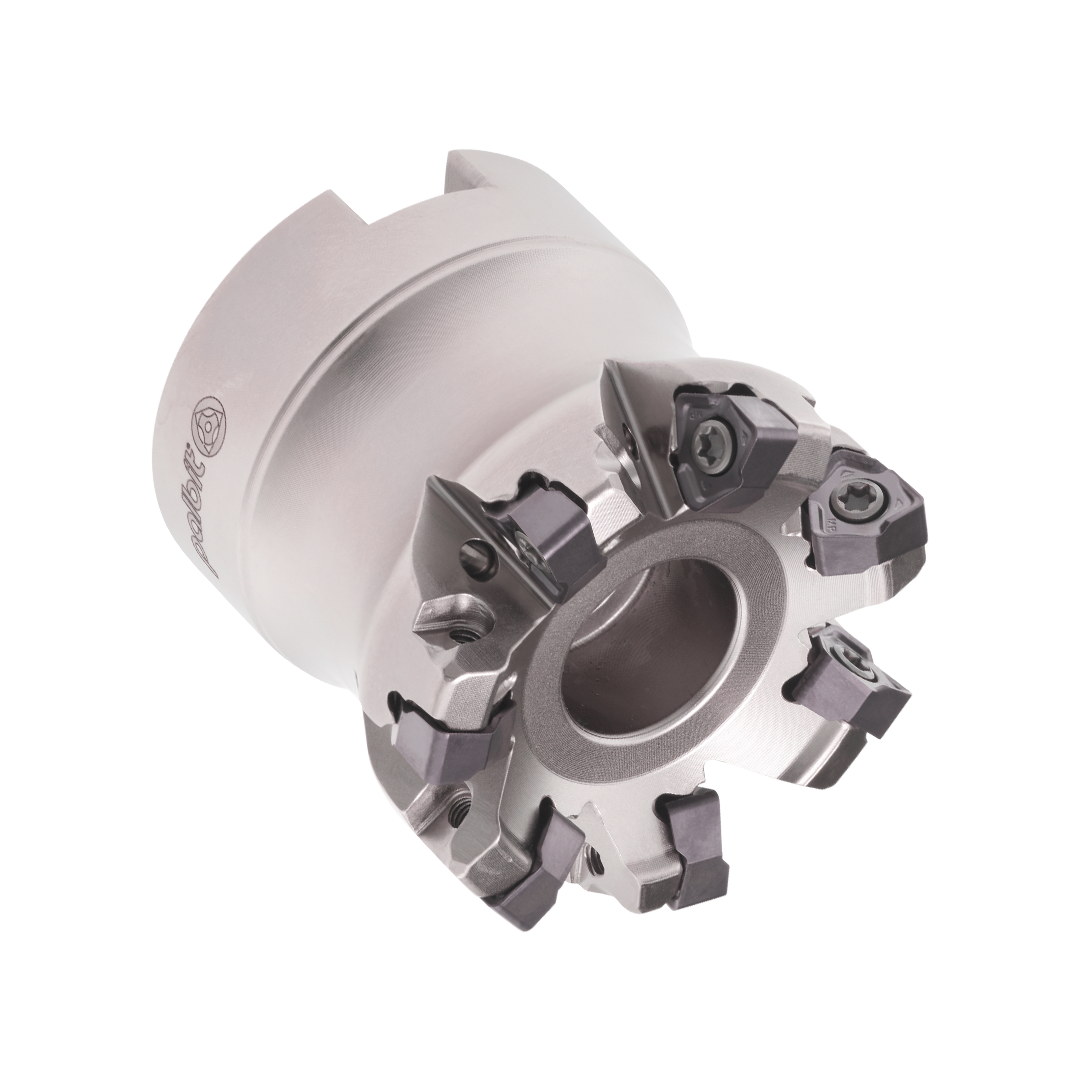

Palbit Arbor Mounting Holder - For WN0403 WO0403 Inserts - 63mm Cutter Diameter - 181192600

Palbit Arbor Mounting Holder - For WN0403 WO0403 Inserts - 63mm Cutter Diameter - 181192600

SKU:PAL-181192600
Palbit Arbor Mounting Holder for WN0403 and WO0403 inserts delivers precision micro-milling in a compact, stable package. With a 63mm cutter diameter, it’s designed for engineers and CNC professio... Read more ↓
Specification
Insert Size & ShapeWN0403 WO0403
Depth of Cut Maximum (APMX)3.5
Cutting Item Count (CICT)10
Connection Diameter (DCONMS)22
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)48
View all specifications ↓
£346.70
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable InsertsSuitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Palbit Arbor Mounting Holder for WN0403 and WO0403 inserts delivers precision micro-milling in a compact, stable package. With a 63mm cutter diameter, it’s designed for engineers and CNC professionals tackling fine-detail machining and small-part production.

  • Compatible Inserts: Accepts Palbit WN0403 and WO0403 inserts for flexible tooling in tight spaces.
  • 63mm Cutter Diameter: Optimized for accurate pocketing and finishing in micro-milling tasks.
  • Compact, High-Performance Design: Built to provide stability and accuracy in demanding, small-part manufacturing.
  • Secure Insert Retention: Robust clamping system keeps inserts firmly in place during operations.
  • Improved Tool Life: Durable construction and reliable mounting help extend life of both holder and inserts.
  • Consistent Tight-Tolerance Results: Delivers repeatable performance in tight-tolerance applications.

This holder reduces set-up variability and enhances process stability, enabling precise, repeatable results on micro-milling projects. Its secure retention minimizes insert movement, supporting longer tool life and fewer reworks in small-part production. Designed for engineers and CNC professionals, it helps you maintain tight tolerances with confidence, even in challenging materials and geometries.

Insert Size & Shape WN0403 WO0403
Depth of Cut Maximum (APMX) 3.5
Cutting Item Count (CICT) 10
Connection Diameter (DCONMS) 22
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 48
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 63
Torque (TQ) 1.2
Functional Length (LF) 40
Axial Rake Angel (GAMP) -5
Rdial Rake Angle (GAMF) -13

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: HEXAPLUS 49490 - Arbor Mounting

View full collection →

You are viewing PAL-181192600. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181173700 WN0806Shouldering CuttersArbor Mounting8050£323.15 5 days
PAL-181173600 WN0806Shouldering CuttersArbor Mounting6340£273.88 5 days
PAL-181173500 WN0806Shouldering CuttersArbor Mounting6340£266.13 5 days
PAL-181173400 WN0806Shouldering CuttersArbor Mounting5040£243.43 5 days
PAL-181165600 WN0806Shouldering CuttersArbor Mounting5040£250.99 5 days
PAL-181174900 WN0806Shouldering CuttersArbor Mounting4040£220.56 5 days
PAL-181204200 WN0806Shouldering CuttersArbor Mounting16063£773.86 5 days
PAL-181174100 WN0806Shouldering CuttersArbor Mounting12563£650.20 5 days
PAL-181173900 WN0806Shouldering CuttersArbor Mounting10050£380.17 5 days
PAL-181192600 ViewingWN0403 WO0403Shouldering CuttersArbor Mounting6340£346.70 5 days
PAL-181192500 WN0403 WO0403Shouldering CuttersArbor Mounting5040£312.64 5 days
PAL-181192400 WN0403 WO0403Shouldering CuttersArbor Mounting5040£303.35 5 days
PAL-181192300 WN0403 WO0403Shouldering CuttersArbor Mounting4040£263.11 5 days
PAL-181192200 WN0403 WO0403Shouldering CuttersArbor Mounting3240£244.55 5 days
