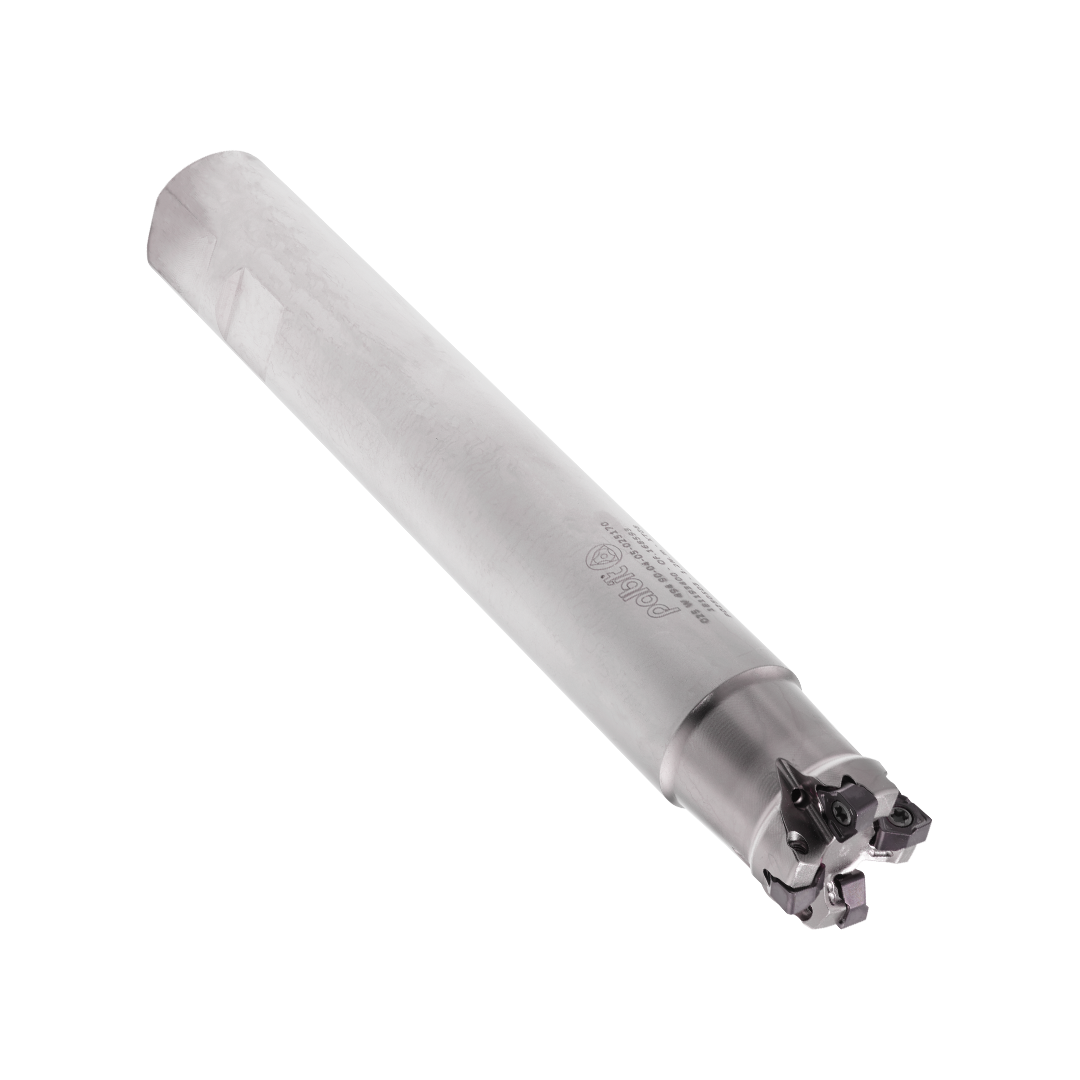

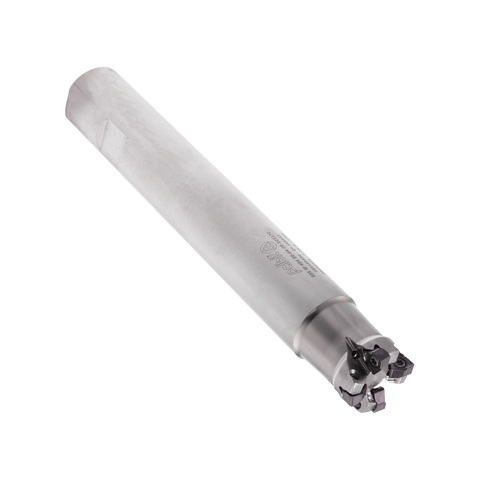

Palbit Weldon Shank Holder - For WN0806 Inserts - 40mm Cutter Diameter - 181174600
| Insert Size & Shape | WN0806 |
| Depth of Cut Maximum (APMX) | 7.5 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
The Palbit Weldon Shank Holder is a precision tool holder designed for WN0806 inserts, delivering rigid support and consistent milling results. Optimized for a 40 mm cutter diameter, it’s built to perform in demanding production environments.
- Compatibility: Specifically engineered for WN0806 inserts to ensure secure seating and accurate alignment.
- Part Number: 181174600
- 40 mm Cutter Diameter: Form-factor designed to accommodate a 40 mm cutting diameter for efficient material removal.
- Rigid Arbor Mounting: Arbor-style mounting provides robust rigidity to minimize deflection during heavy cuts.
- Insert Stability: Precision interfaces hold inserts firmly, preserving sharpness and cut quality over time.
- High-Speed / Heavy-Duty Performance: Tailored for demanding milling applications where reliability and tool life matter.
By maintaining precise alignment and stable contact between holder and insert, this Palbit solution helps reduce downtime, improve surface finish, and extend tool life in tough production environments. The result is smoother milling, consistent chip loads, and fewer rework cycles across multiple parts.
| Insert Size & Shape | WN0806 |
| Depth of Cut Maximum (APMX) | 7.5 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 3 |
| Functional Length (LF) | 130 |
| Usable Length (LU) | 40 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -13 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HEXAPLUS 49490 - Weldon Shank
View full collection →You are viewing PAL-181174600. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181174600 Viewing | WN0806 | Shouldering Cutters | Weldon Shank | 40 | 130 | £253.55 | 5 days | |
| PAL-181174500 | WN0806 | Shouldering Cutters | Weldon Shank | 40 | 130 | £244.55 | 5 days | |
| PAL-181174300 | WN0806 | Shouldering Cutters | Weldon Shank | 32 | 125 | £203.67 | 5 days | |
| PAL-181193500 | WN0403 WO0403 | Shouldering Cutters | Weldon Shank | 25 | 170 | £250.58 | 5 days | |
| PAL-181193400 | WN0403 WO0403 | Shouldering Cutters | Weldon Shank | 25 | 170 | £239.54 | 5 days | |
| PAL-181193300 | WN0403 WO0403 | Shouldering Cutters | Weldon Shank | 20 | 150 | £217.42 | 5 days |
