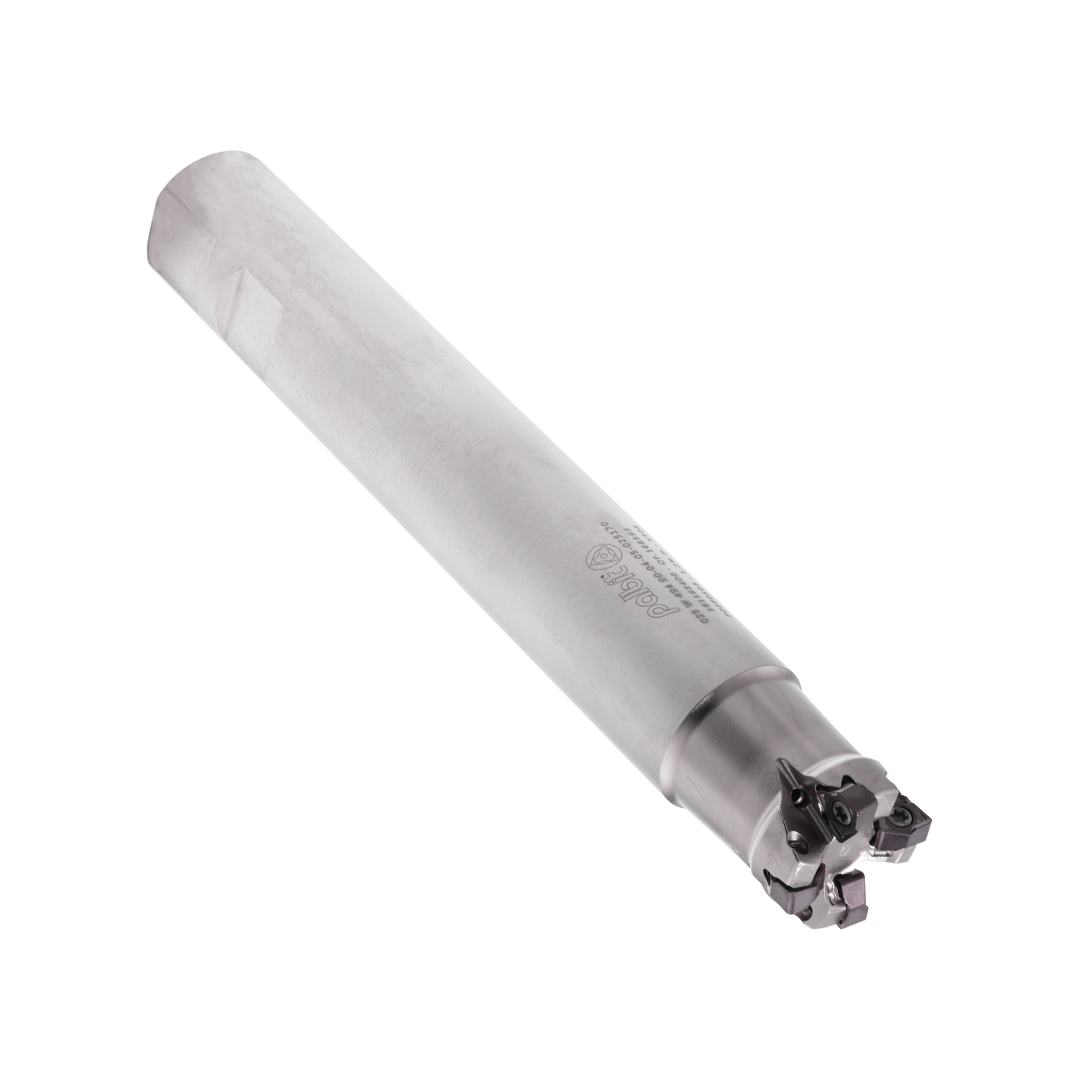

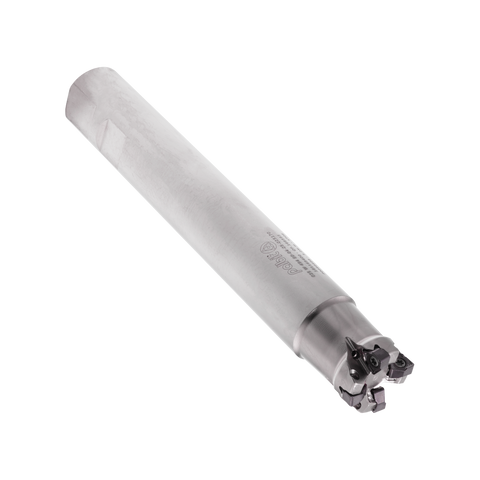

Palbit Weldon Shank Holder - For WN0403 WO0403 Inserts - 20mm Cutter Diameter - 181193300
| Insert Size & Shape | WN0403 WO0403 |
| Depth of Cut Maximum (APMX) | 3.5 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 18 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
A compact Weldon shank holder (product code 181193300) designed for precision micro-milling, compatible with WN0403 and WO0403 inserts for small-part production. With a 20 mm cutter diameter, it delivers stable, accurate performance in tight-tolerance applications.
- Inserts compatibility: Compatible with WN0403 and WO0403 inserts for flexible use
- Shank type: Weldon-style shank for secure seating and consistent engagement
- Diameter: 20 mm cutter diameter
- Stability and accuracy: Compact, high-performance design provides stable, precise micro-milling
- Retention: Secure insert retention minimizes movement and vibration
- Applications: Ideal for fine-detail machining and small-part production in CNC environments
This holder supports longer tool life and repeatable results by maintaining consistent clamping force and alignment, reducing runout and chatter in tight-tolerance operations. Its compact form fits crowded setups, while the secure retention ensures reliable performance across repeated cycles, helping you finish parts with precision and efficiency.
| Insert Size & Shape | WN0403 WO0403 |
| Depth of Cut Maximum (APMX) | 3.5 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 18 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 150 |
| Axial Rake Angel (GAMP) | -5 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HEXAPLUS 49490 - Weldon Shank
View full collection →You are viewing PAL-181193300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181174600 | WN0806 | Shouldering Cutters | Weldon Shank | 40 | 130 | £212.98 | 5 days | |
| PAL-181174500 | WN0806 | Shouldering Cutters | Weldon Shank | 40 | 130 | £205.42 | 5 days | |
| PAL-181174300 | WN0806 | Shouldering Cutters | Weldon Shank | 32 | 125 | £171.08 | 5 days | |
| PAL-181193500 | WN0403 WO0403 | Shouldering Cutters | Weldon Shank | 25 | 170 | £210.49 | 5 days | |
| PAL-181193400 | WN0403 WO0403 | Shouldering Cutters | Weldon Shank | 25 | 170 | £201.21 | 5 days | |
| PAL-181193300 Viewing | WN0403 WO0403 | Shouldering Cutters | Weldon Shank | 20 | 150 | £182.63 | 5 days |
