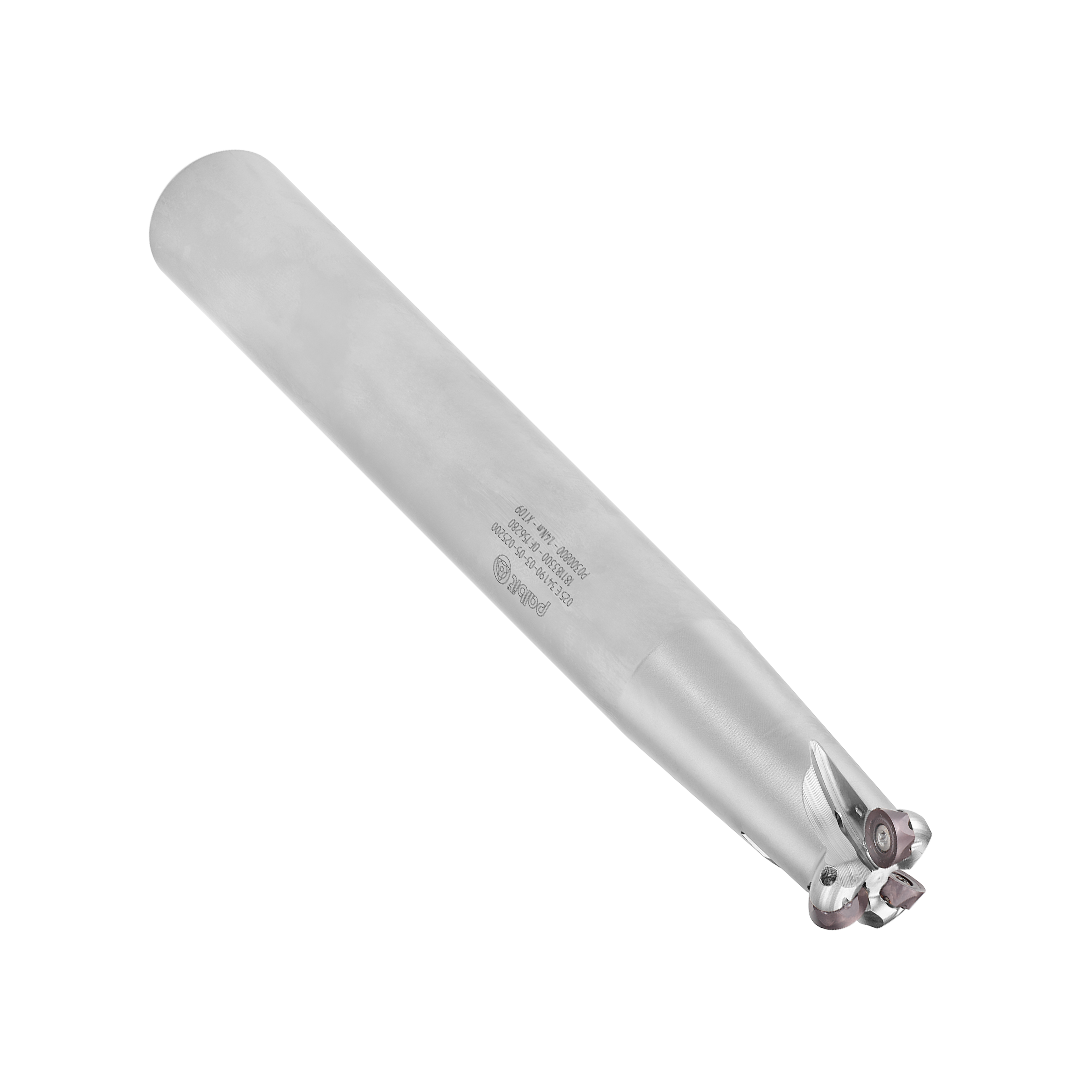

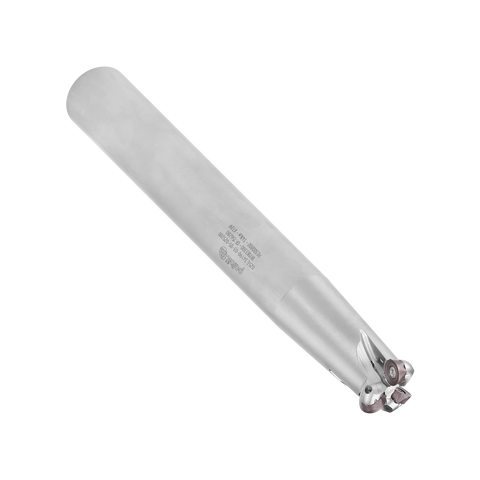

Palbit Cylindrical Shank Holder - For RP10T3 Inserts - 15mm Cutter Diameter - 181183300
| Insert Size & Shape | RP10T3 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Cylindrical Shank Holder for RP10T3 inserts delivers rigid, secure clamping for high‑precision grooving and parting in CNC machining. Designed for a 15 mm cutter diameter, this holder keeps RP10T3 inserts firmly in place to maintain accuracy across production runs.
- Compatibility: Designed to accept RP10T3 inserts for reliable seating and consistent performance.
- Shank format: Cylindrical shank provides uniform contact and strong alignment within the tool holder assembly.
- Rigidity and retention: Engineered to minimize deflection under load for superior insert retention and straight cuts.
- Cutting performance: Supports smooth cutting action with reduced vibration to improve surface finish.
- Diameter specification: Suits 15 mm cutter diameter applications for compact, efficient tool setups.
- Ideal use cases: Optimized for demanding CNC environments where repeatability and tool life are critical.
This holder helps machinists achieve tighter tolerances, longer tool life, and more consistent part finishes in production workflows where every pass counts.
| Insert Size & Shape | RP10T3 |
| Depth of Cut Maximum (APMX) | 5 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 15 |
| Torque (TQ) | 1.4 |
| Maximum Cutting Diameter (DCX) | 25 |
| Functional Length (LF) | 200 |
| Usable Length (LU) | 60 |
| Axial Rake Angel (GAMP) | 5 |
| Rdial Rake Angle (GAMF) | -4 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TURBOMILL 34190
View full collection →You are viewing PAL-181183300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181182300 | RP10T3 | Profile Cutters | Threaded Coupling | 25 | 45 | £234.43 | 5 days | |
| PAL-181183300 Viewing | RP10T3 | Profile Cutters | Cylindrical Shank | 15 | 200 | £227.39 | 5 days | |
| PAL-181187200 | RP10T3 | Profile Cutters | Cylindrical Shank | 10 | 180 | £165.89 | 5 days | |
| PAL-181160700 | RP10T3 | Profile Cutters | Arbor Mounting | 42 | 40 | £307.40 | 5 days | |
| PAL-181160200 | RP10T3 | Profile Cutters | Arbor Mounting | 40 | 40 | £305.64 | 5 days | |
| PAL-181160100 | RP10T3 | Profile Cutters | Arbor Mounting | 32 | 40 | £299.23 | 5 days |
