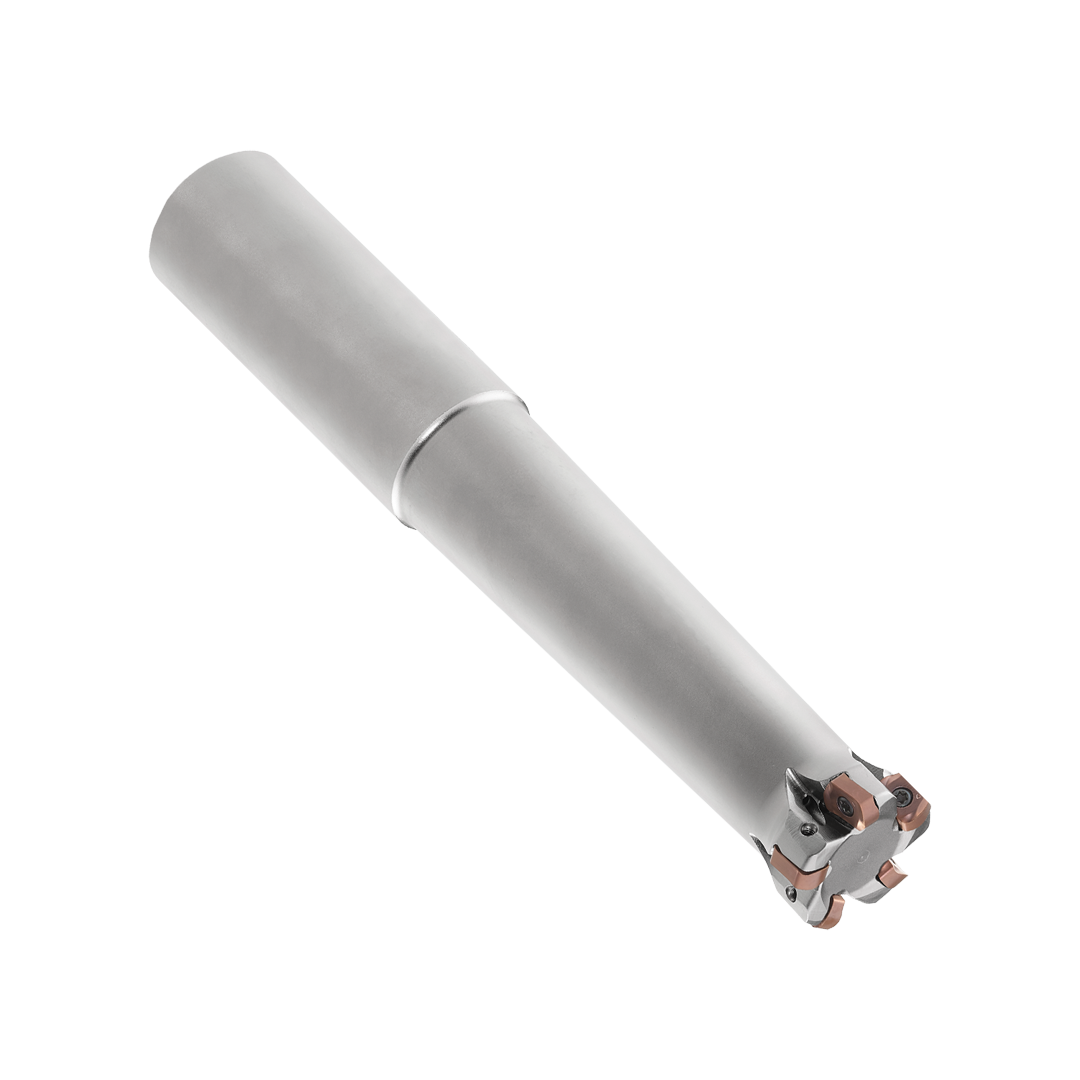

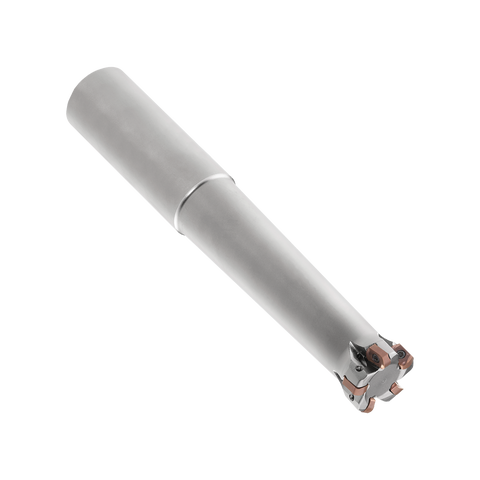

Palbit Cylindrical Shank Holder - For XN06T3 Inserts - 20mm Cutter Diameter - 181183800
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna
Palbit Cylindrical Shank Holder (Model 181183800) for XN06T3 inserts is engineered for high-precision grooving and parting. Designed for a 20mm cutter diameter, it delivers exceptional rigidity and reliable performance in tight-tolerance CNC work.
- Compatibility: Specifically designed to seat XN06T3 inserts for secure, repeatable accuracy across multiple cycles.
- Cutter Diameter: Optimized to accommodate a 20 mm cutter, ensuring balanced cutting dynamics and consistent chip load.
- Rigidity: Cylindrical shank and precision interface minimize deflection under load for straighter, more accurate cuts.
- Clamping: Robust, secure clamping minimizes tool movement and reduces the risk of chatter during heavy cuts.
- Application: Ideal for fine-detail CNC machining, including high-precision grooving and parting with tight tolerances.
- Durability & Longevity: Stable design and dependable performance support longer tool life in demanding production environments.
This holder helps engineers and machinists achieve accurate results with reduced vibration and consistent performance, enabling reliable finishes on small-component production and tight-tolerance parts.
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 130 |
| Usable Length (LU) | 50 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TETRAFEED 16320 - Cylindrical Shank
View full collection →You are viewing PAL-181183800. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181172200 | XN06T3 | HI Feed | Cylindrical Shank | 32 | 150 | £223.31 | 5 days | |
| PAL-181183900 | XN06T3 | HI Feed | Cylindrical Shank | 25 | 140 | £190.89 | 5 days | |
| PAL-181183800 Viewing | XN06T3 | HI Feed | Cylindrical Shank | 20 | 130 | £174.69 | 5 days | |
| PAL-181183700 | XN06T3 | HI Feed | Cylindrical Shank | 16 | 100 | £154.78 | 5 days |
