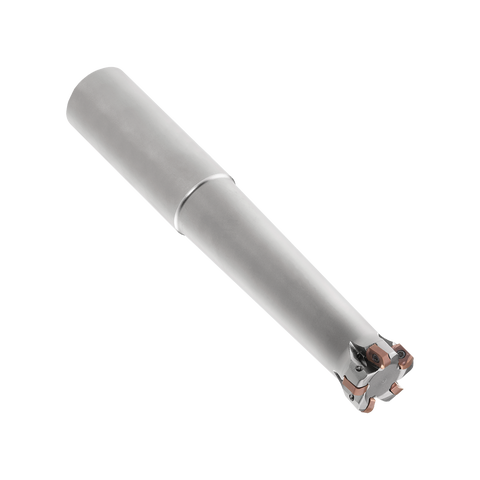

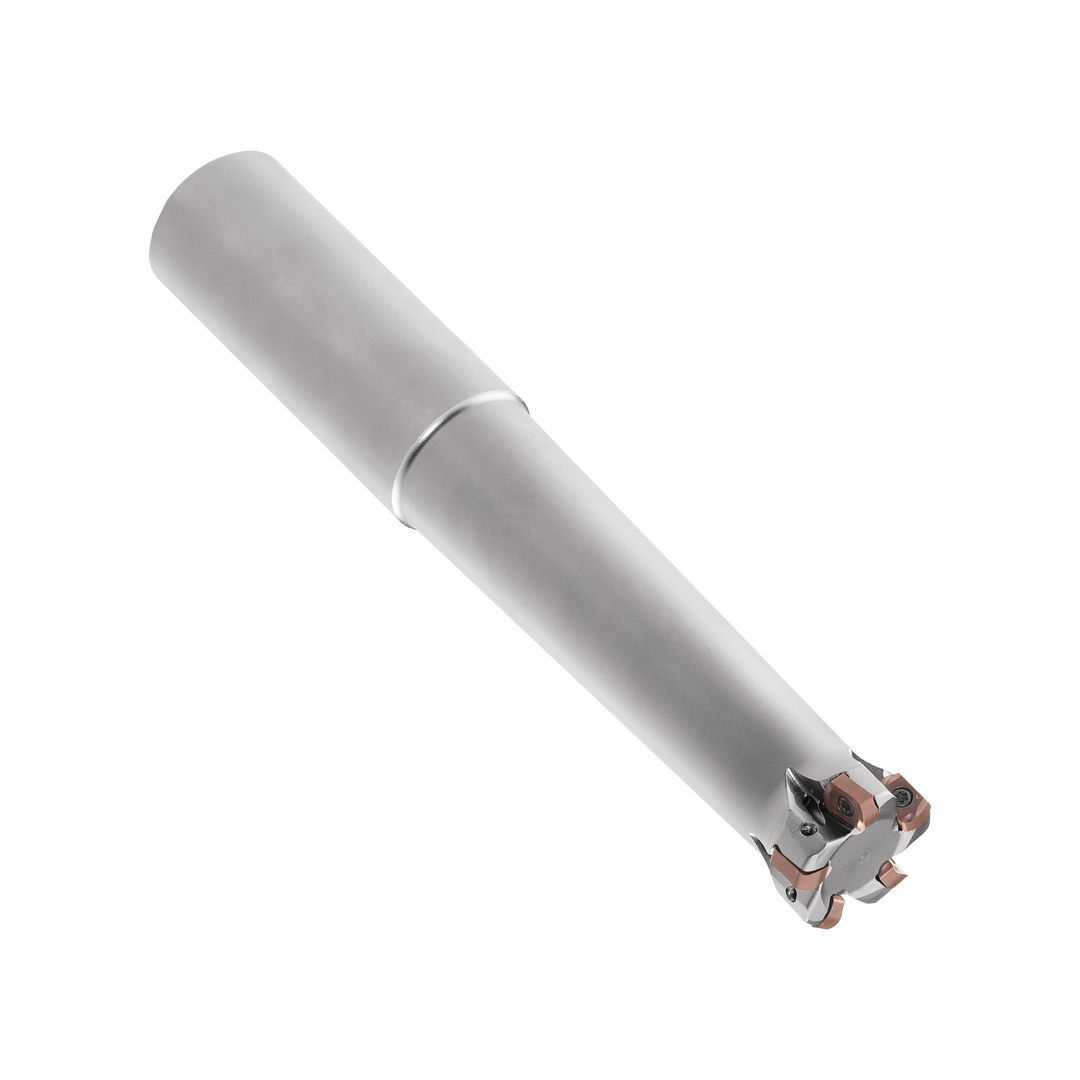

Palbit Cylindrical Shank Holder - For XN06T3 Inserts - 25mm Cutter Diameter - 181183900
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
Learn more about Klarna
Palbit Cylindrical Shank Holder (Model 181183900) is designed for engineers and machinists performing tight-tolerance, small-component CNC work. Compatible with XN06T3 inserts and a 25 mm cutter diameter, it delivers high-precision grooving and parting with reliable rigidity and clamping.
- Insert Compatibility: Optimized for Palbit XN06T3 inserts for precise seating and alignment.
- Cutting Diameter: Suited to a 25 mm cutter diameter for compact, detail-driven operations.
- Rigid Construction: Engineered to maximize rigidity and minimize deflection during cutting.
- Secure Clamping: Reliable clamping system keeps inserts firmly in place for consistent cuts.
- Vibration Reduction: Designed to reduce chatter, enhancing surface finish and tool life.
- Ideal Applications: Specifically developed for high-precision grooving and parting on small components.
- Target Work Environment: A preferred choice for tight-tolerance CNC machining environments.
By delivering exceptional rigidity and secure seating, this holder minimizes runout and vibration, enabling repeatable, accurate grooving and parting results. It supports longer tool life and smoother cutting performance, helping engineers and machinists sustain high-throughput production without sacrificing precision.
| Insert Size & Shape | XN06T3 |
| Depth of Cut Maximum (APMX) | 1 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 20 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 140 |
| Usable Length (LU) | 60 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -16 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: TETRAFEED 16320 - Cylindrical Shank
View full collection →You are viewing PAL-181183900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181172200 | XN06T3 | HI Feed | Cylindrical Shank | 32 | 150 | £223.31 | 5 days | |
| PAL-181183900 Viewing | XN06T3 | HI Feed | Cylindrical Shank | 25 | 140 | £190.89 | 5 days | |
| PAL-181183800 | XN06T3 | HI Feed | Cylindrical Shank | 20 | 130 | £174.69 | 5 days | |
| PAL-181183700 | XN06T3 | HI Feed | Cylindrical Shank | 16 | 100 | £154.78 | 5 days |
